China 5 Axis CNC Stone Engraving Machine manufacturer,5 Axis CNC Stone Engraving Machine factory

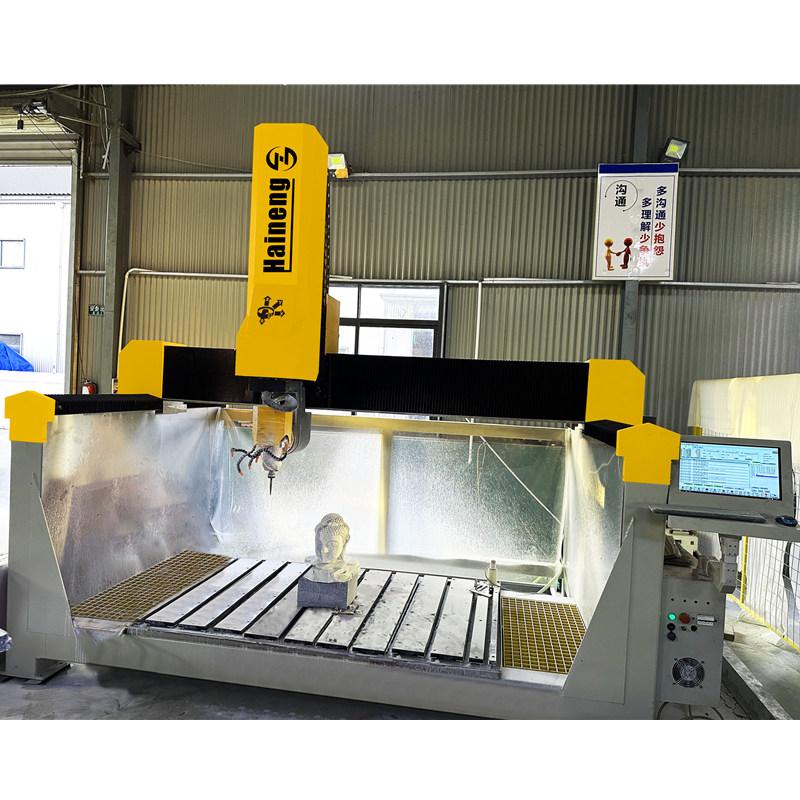

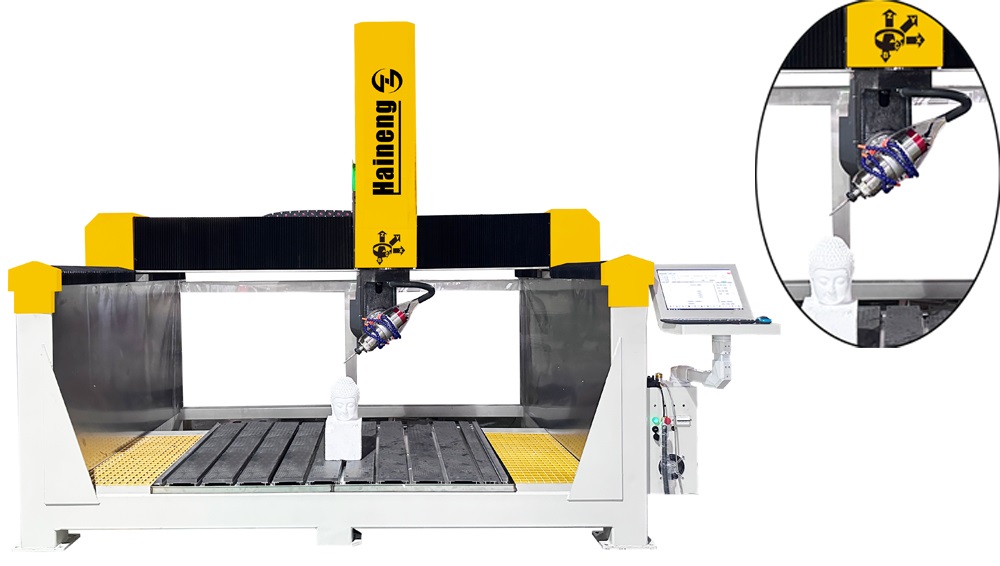

5 Axis CNC Stone Engraving Machine

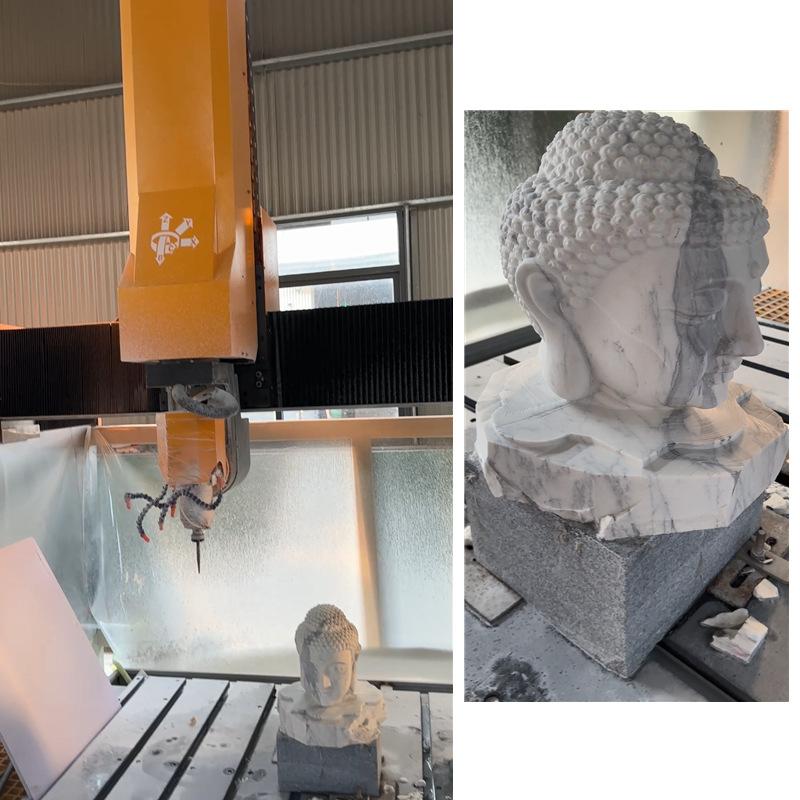

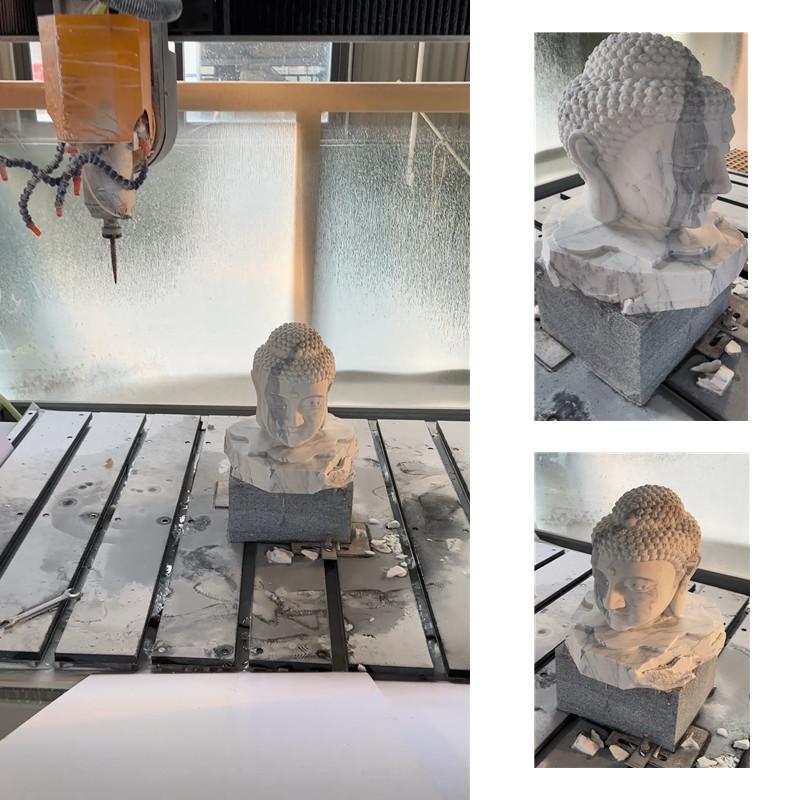

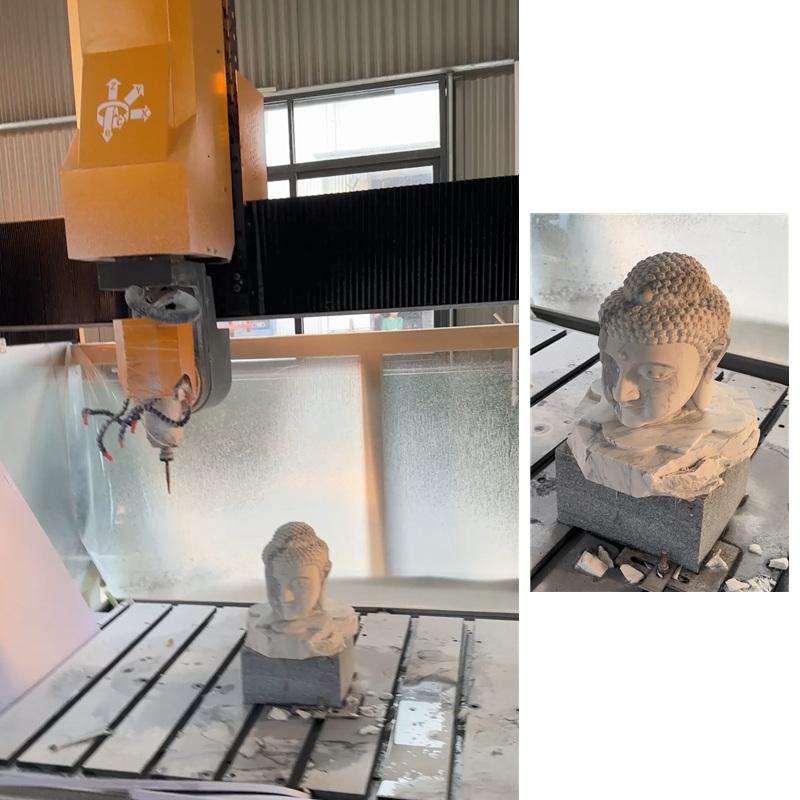

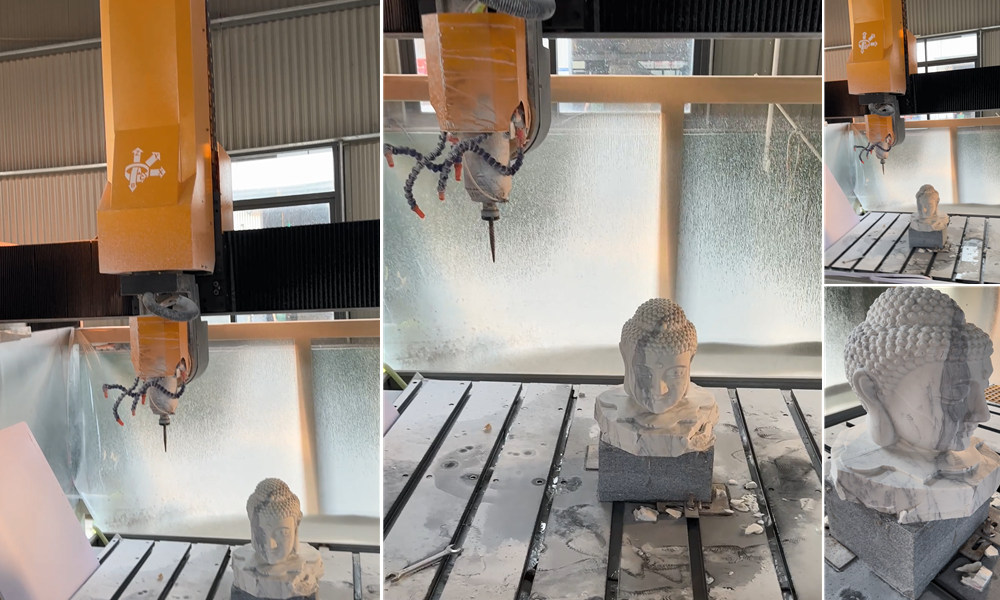

5 Axis Engraving Machine is mainly used for processing figure sculpture, animal sculpture, large and small crafts.

Brand:
HAINENG
Item NO.:
DKJ-LT7010
Order(MOQ):
1
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
25 days

Automatic 3D 7 Axis CNC Kuka Robot Arm Sculpture Stone Engraving Machine

Kuka Industrial Robot with: Light-weight only 1.5kg in weight, safe for user and other devices High flexibility 7 degrees of freedom ensures wide working range Easy teaching able to be taught by hand

Classic Single-Head CNC Engraving Cutting Machine

Our laser cutting & engraving machine adopts the DSP control technology，it does not have to be connected with computer to work. This machine characterized with automatic memory, automatic management, it is quicker, steadier, and more accurate.

Classical Double Head Stone Versatile Engraving Machine

JDK2030-2 stone carving machine is equipped with CNC control system and two working heads, it is a multifunctional machine. Mainly used for carving various stone materials, such as marble, granite, quartz, sandstone or artificial stone or ceramics, glass, etc.

High Efficient Stable Classic Three Head Stone Engraving Machine

Three Head Stone Engraving Machine adopt NcStudio CNC control system ,large color screen display, easy and simple to operate.

High Efficient Classic Four-Head Stone Engraving Machine

Four-Head Stone Engraving Machine wth the latest stone cutting system, all three axes are driven by AC servo motors, suitable for building materials, ancient buildings, tombstones, tea trays, etc.

Split Type Special Shaped Stone Engraving And Cutting Machine

The split-type special-shaped engraving cutting machine adopts the latest stone cutting system, which can cut stone with high efficiency. It has various models, large size and internal size, easy loading and unloading, and is suitable for various large-scale products such as building materials.

4 Axis CNC Multifunctional Double-Head Stone Engraving Machine

The 4 axis CNC multi-function double-head engraving machine is equipped with double milling cutters and double saw blades, which can perform profiling cutting more effectively and improve the engraving work in the next step.

Single Head Stone CNC Router Dragon Column Engraving Machine

The single-head integrated dragon column engraving machine first roughs the saw blade, and then engraves, which greatly improves the efficiency, and can carry large workpieces of more than 5 tons.

Equipment model	DKJ-LT7010
Processing Size	Column carving:700mm*700mm X:2000mm Y:1200mm Z:1000mm（Customizable） B:-110°~110° C:-360°~360°
Driving system	Full servo-busbar
Control System	Weihong Ncstudio 5-axis with RTCP
Cooling System	Water cooling with chiller
Transmission type	linear rail,rack,Ball screw
Lubrication system	Automatic oil filling system
Working Voltage	380V/50Hz/(Customizable)
Instruction	NC,ENG,G-code,u00mmg,*plt
Processing Precision	±0.1
Processing desk	Stainless steel,aluminum profile, Pvc board
Software	PowerMil + Ncstudio
Spindle Power	7.5kw
Total power	20kw
Diamension	350022002300mm
Gross weight	3.5T
