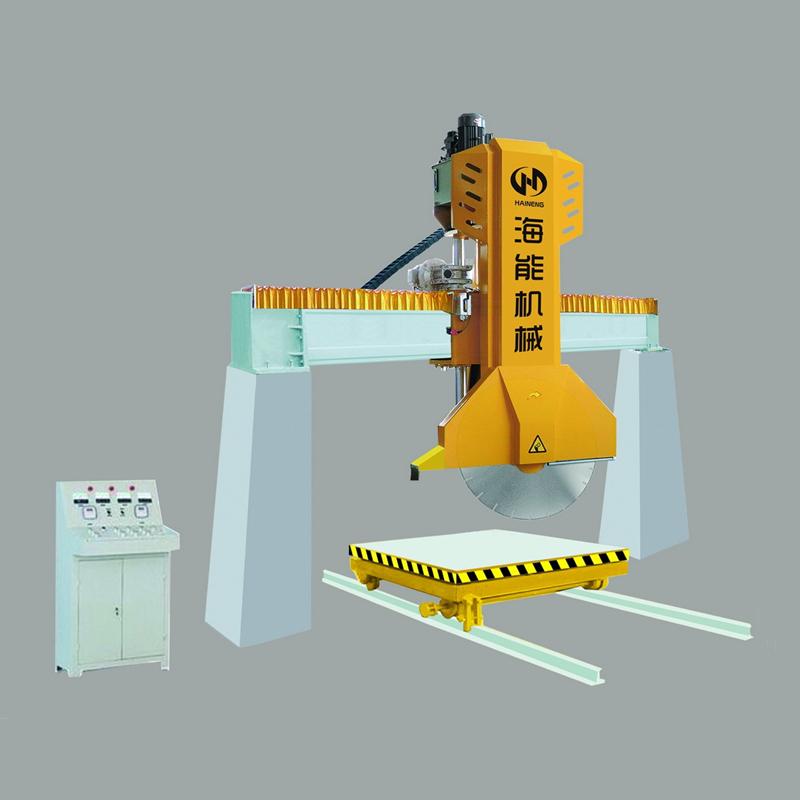

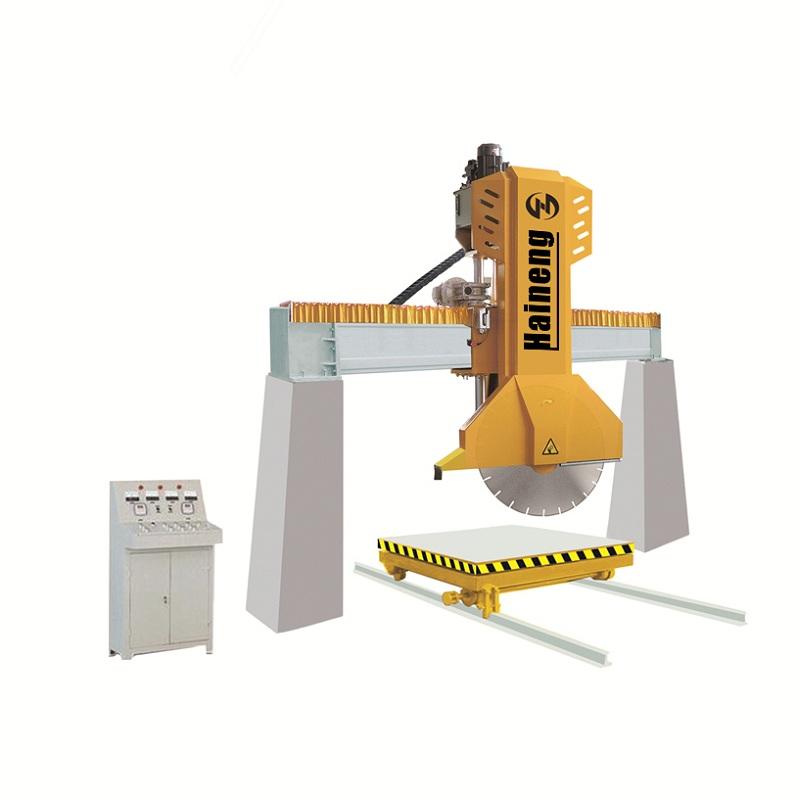

Bridge Single Blade Stone Block Cutting Machine

The bridge block cutting machine has a simple and reasonable structure and high stability. It adopts hydraulic sliding plate to lift, which has the characteristics of fast lifting speed, anti-wear, not easy to deform, and easy to maintain.

  • Brand:

    HAINENG
  • Item NO.:

    LZQ-1800A/LZQ-2200A
  • Payment:

    T/T
  • Product Origin:

    China
  • Shipping Port:

    Ningbo port
  • Lead Time:

    15 days
Product Detail

Product Introduction


Bridge Single Blade Stone Cutting Machine is simple structure, small footprint, lifting system with hydraulic drive up and down the knife, more rapid, stable, long life, easy maintenance. Stone processing enterprises greatly improve production efficiency,but also reduce the maintenance cost of the equipment.

The slick-lifting plate and guide rail pillar, trolley rotated by manually rotating and hydraulic auto-rotate for users to choose. This Stone Block cutter is mainly used in cutting thick blocks, especially for processing thickness blocks in 750-950 below, is the ideal device small and medium scale stone processing enterprise.


Technical Parameters


Bridge Single Blade Stone Cutting Machine

Type

unit

LZQ-1800A

LZQ-2200A

Blade diameter

mm

Φ1800

Φ2200

Max.cutting length

mm

3500×1800×750

3500×1800×950

Size of trolley

mm

1800×1800

1800×1800

Power of main motor

kw

30

37

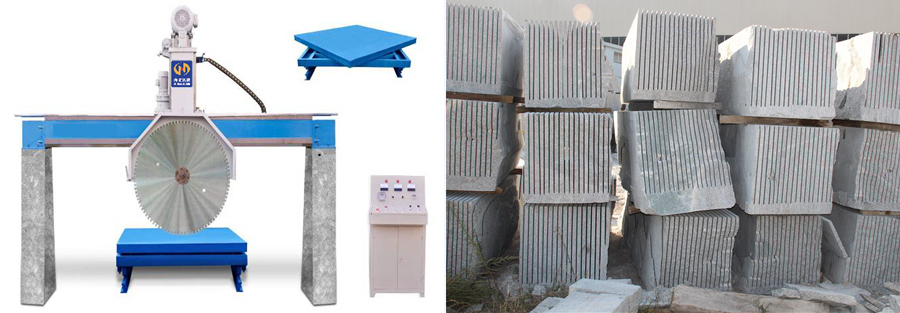

Bridge Single Blade Stone Cutting Machine

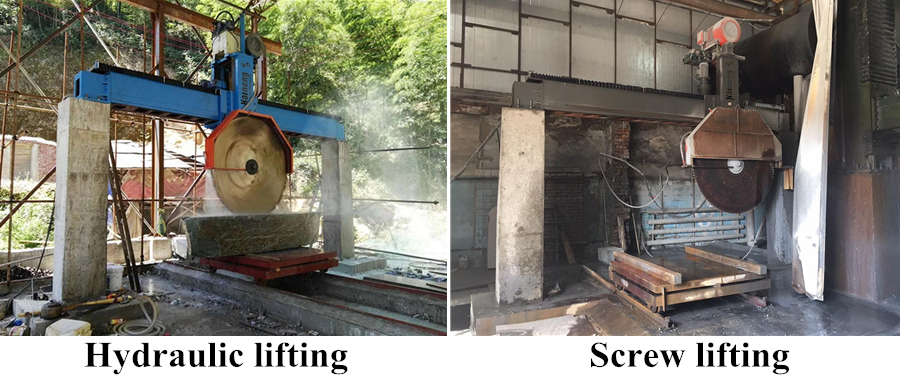

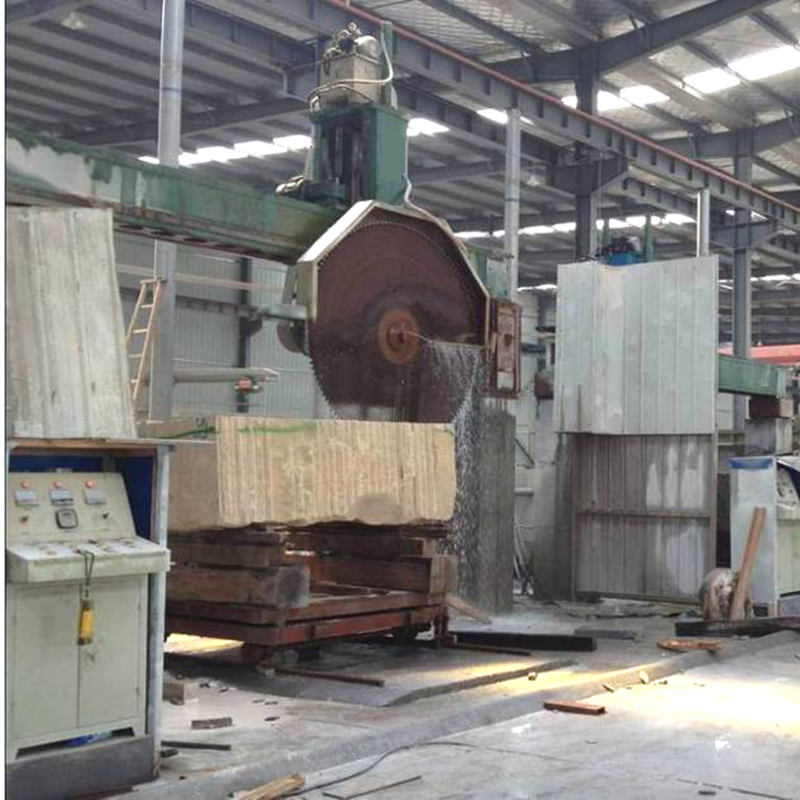

Processing

Bridge Single Blade Stone Cutting Machine

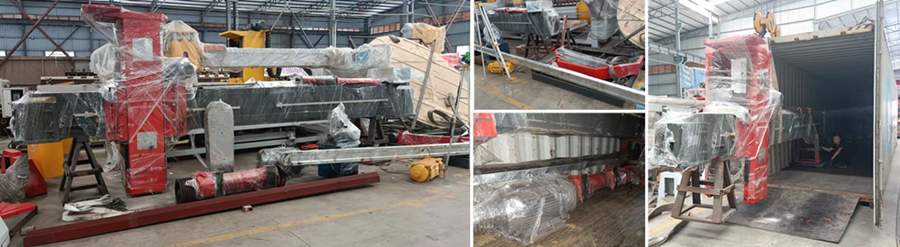

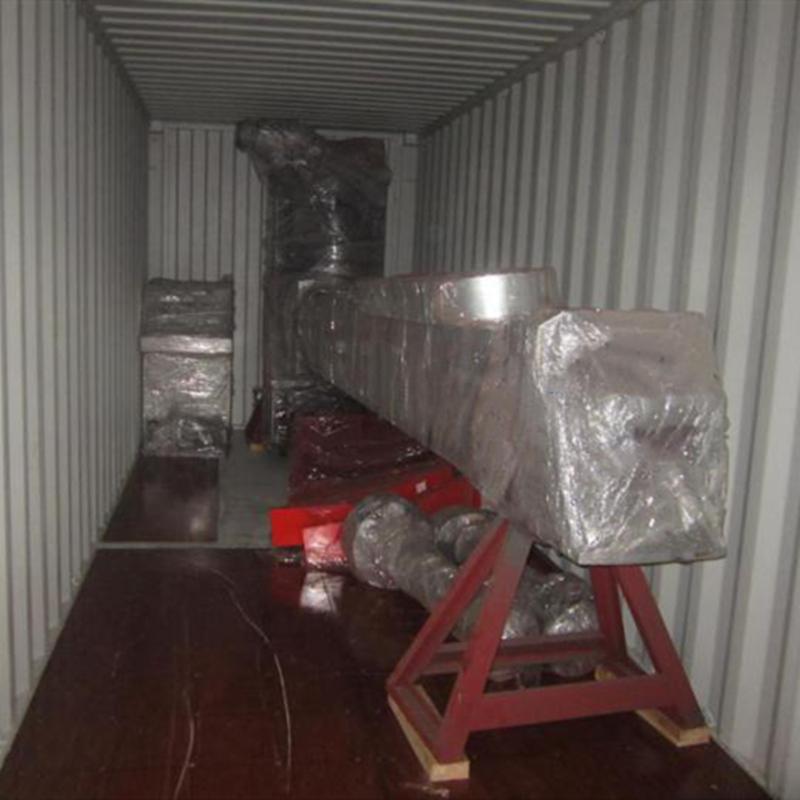

Loading Container
