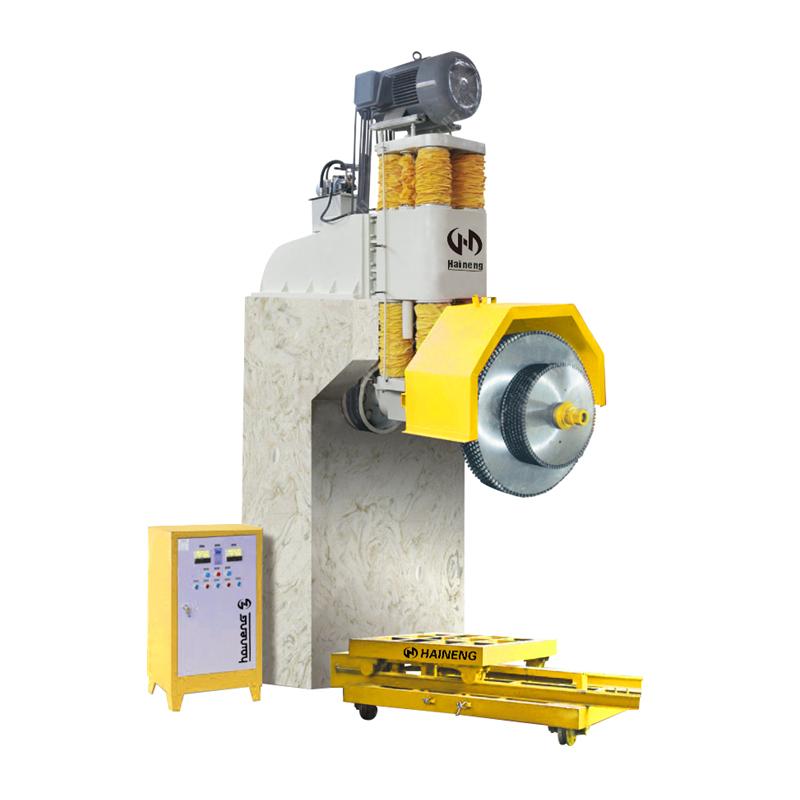

Multi-Blade Hydraulic Stone Cutting Machine

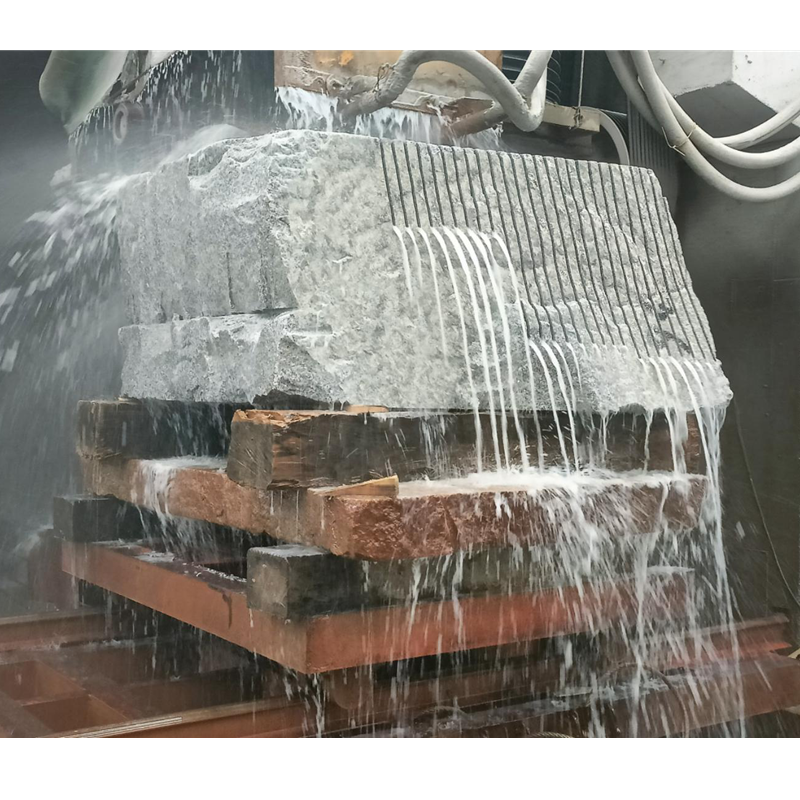

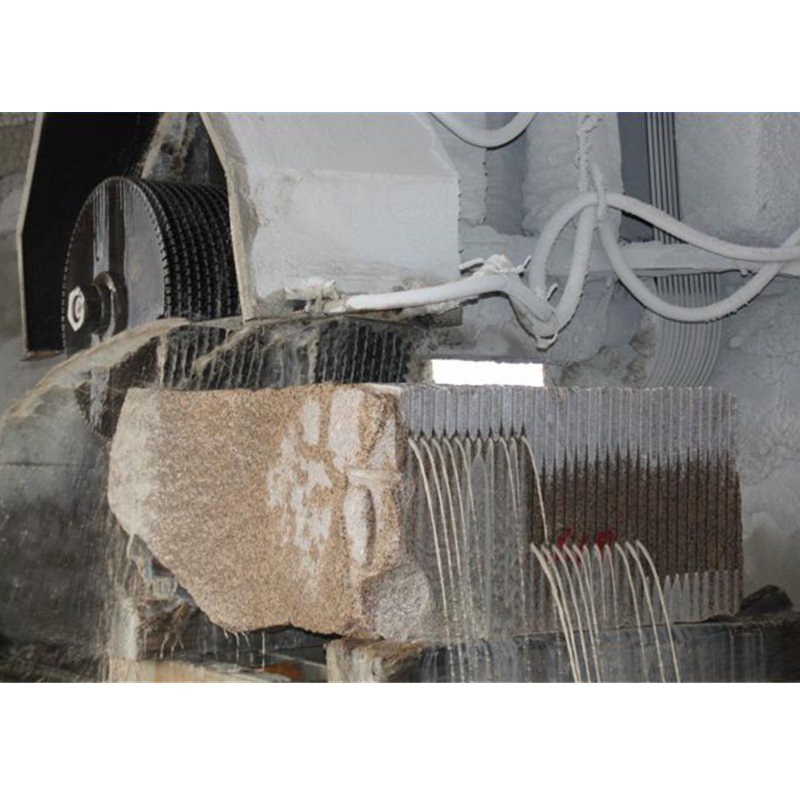

This machine is optimized and improved on the basis of the combined saw. The machine adopts a four-column hydraulic locking structure, which has good overall rigidity and small clearance, which is conducive to reducing the shaking during the cutting stone, and the produced slabs have high precision. , the flatness is good. At the same time, it has achieved remarkable results in improving the service life of the segments and reducing power consumption.

Brand:
HAINENG
Item NO.:
DBQ-8/12/14/18/22
Order(MOQ):
1
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
20 days

Single Column Stone Cutting Machine

This machine is a special machine tool for cutting curb stones and strip stones. The cutting length can be customized according to the needs of users, which makes up for the processing defects on the length of the gantry stone cutting machine. The saw blade moves in and out, lifts and lowers electrically, the feed of the worktable is adjusted by the frequency converter, and the stone is automatically cut horizontally, with high work efficiency.

Bridge Single Blade Stone Cutting Machine

The bridge type single blade saw has a simple and reasonable structure and high stability. It adopts hydraulic sliding plate to lift, which has the characteristics of fast lifting speed, anti-wear, not easy to deform, and easy to maintain.

SMT High Efficiency Multi-Saw Stone Cutter

The machine has a high degree of automation, stable overall processing performance, high efficiency and low consumption. It is the most ideal stone machine for cutting strip stones, curb stones and monument stones.

SLQ600/800 Hand Stone Cutting Machine for Tombstone

This stone cutting machine can be used for cutting large stone carvings, brick carvings, inkstones, tombstones, floor stones, etc.

ANYTH Double Blades Stone Cutter

Double Blades Stone Cutter adopts a portal double column structure, oil-immersed track, horizontal electric variable frequency cutting, electric lifting, double saw blades, and an optional conveyor belt workbench, making it the best choice for stone cutting.

XQJ-600 Portable Marble Slabs Stone Cutting Table Saw Machine

XQJ-600 is a stone cutting table saw machine suitable for cutting stone, ceramic tile, brick, concrete and wood etc.

Granite Multi-Saw Blade Cutting Machine

Our cutting machine can load 20-28 saw blades longitudinally. With high processing efficiency and good precision, it is an ideal granite processing equipment.

High Production Multi Blade Stone Cutting Machine

Multi blade stone cutting machine has the advantages of high cutting efficiency, high slicing accuracy, good flatness, high stability and simple operation. this machine is especially suitable for cutting high-value granite and marble blocks.

Multi-blade Hydraulic Stone Cutting Machine
Type	unit	D8	D12	D14	D18	D22
Blade diameter	mm	Φ1650(Φ2200)
Number of blades	pcs	8(Φ1650×4+Φ980×4)	12	14	18	22
Lifting stroke	mm	1100
Max.cutting size	mm	3500×1550×900
Power of main motor	kw	65
Water consumption	m³/h	26
Total weight	kg	9000

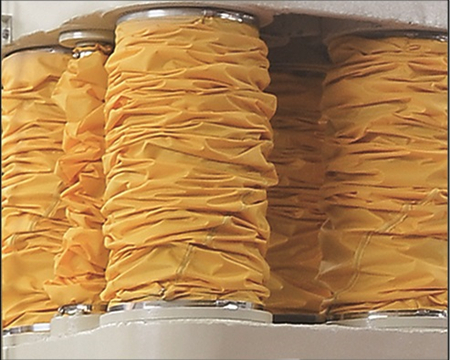

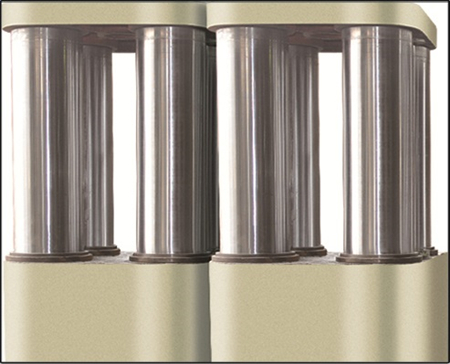

The lifting guide column adopts 4 round steels whose surface is treated with precision hard chrome, which has the advantages of small gap, good overall rigidity, small shaking during cutting, and long service life.	The new composite material "nano nylon" fabric is used, which has the characteristics of waterproof, dustproof, tensile strength and anti-wear, etc. The use of a detachable zipper structure is conducive to easy replacement.

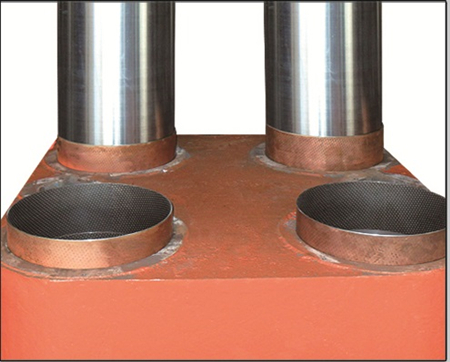

The contact surface between the lifting guide column and the middle seat adopts a guide bush made of DuPont "polytetrafluoroethylene" polymer material in the United States; the surface of the guide bush is rolled into a circular oil storage pit, which can work normally under the condition of less oil or intermittent oil break. It has the advantages of low friction coefficient, good wear resistance and long service life.	Oil tank assembly - oil pump: solenoid valve, etc. are imported from Taiwan.

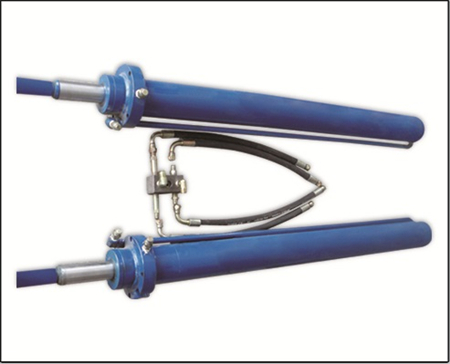

The lifting cylinder adopts the combined oil seal imported from Germany (Bose Xia board), which consists of a five-piece piston seal composed of an elastic sealing ring, two retaining rings and two guiding rings. The service life is several times longer than that of common seals.	The left and right travel of the trolley adopts an inductive magnet structure, which has the advantages of low maintenance rate, and the main components are imported components, such as Siemens relays.
