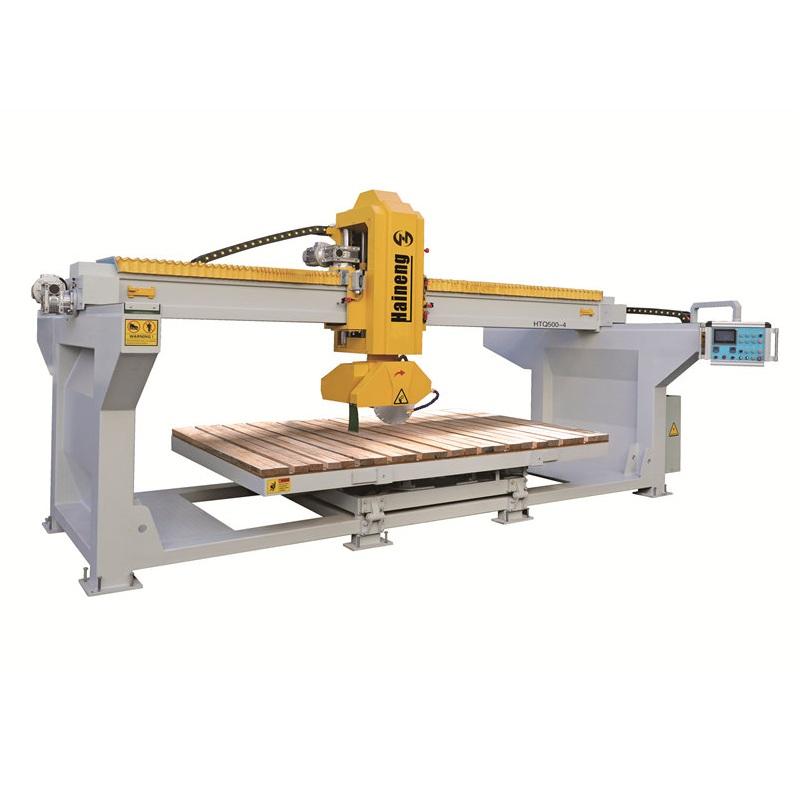

500 Monoblock Bridge Saw infrared Stone Cutting Machine

This Stone Bridge Saw worktable can be turned 0-85 degree + 360 degrees rotation every 45 degrees automatic positioning, with arbitrary angle positioning and braking, the machine head automatically rotates 90 degrees + automatic tilt 45 degrees. It can cut rectangles, arcs, circles, octagons, and inverted corners.

  • Brand:

    HAINENG
  • Item NO.:

    HTQ500A-1/500A-2/500A-3/500A-4
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow & Gray
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    20 days
Product Detail

Product Introduction

Monoblock Bridge Saw  is under computerized control, under the touch operating interface, and is equipped with wireless remote control, enabling the man-machine dialogue to be flexible and free.

The main control components all use international famous brand components, cross frame oil diffuse type double V track, transverse blade adopts stepless frequency conversion speed regulation, longitudinal splitter adopts linear guide rail and high precision magnetic ruler count, to ensure the machine work stable and stable precision.  This is the perfect combination of simplicity, flexibility and durability.

One-piece self-supporting steel structure and the integration of fuselage and workbench base not only facilitates the installation and transportation of users, but also ensures the stability of the machine.Infrared Integrated Bridge Cutter


Technical Parameters

Monoblock Bridge Saw

Type

unit

HTQ500A-1

HTQ500A-2

HTQ500A-3

HTQ500A-4

Blade diameter

mm

Φ350-Φ500

Φ350-Φ500

Φ350-Φ500

Φ350-Φ500

Max. Working dimensions(L×W×H)

mm

3200×2000×130

3200×2000×130

3200×2000×130

3200×2000×130

Workbench dimensions (L×W)

mm

3200×2000

3200×2000

3200×2000

3200×2000

Head rotating degree

0°-90°

0°-90°

0°-90°

0°-90°

Blade tilting degree

---

0°-45°

---

0°-45°

Workbench rotating degree

0°-85°

0°-85°

0°-85°

0°-85°

Table rotating degree

---

---

0°-45°-360°

0°-45°-360°

Main motor Power

kw

18.5

18.5

18.5

18.5

Water consumption

m³/h

3.5

3.5

3.5

3.5

Dimension                   (L×W×H)

mm

6000×3500×2600

6000×3500×2660

6000×3500×2750

6000×3500×2800

Total weight

kg

6500

7000

6500

6500

Infrared Integrated Bridge Cutter

Machine Details
