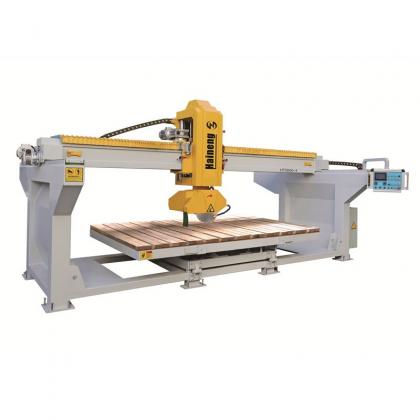

350 Granite Marble Monoblock Bridge Sawing Machine

This machine is especially suitable for home decoration factory to cut stone slab, artificial stone, marble, granite and other home decoration materials.

Brand:
HAINENG
Item NO.:
HTQ350A/B/C/D/E
Order(MOQ):
1
Payment:
T/T
Product Origin:
china
Color:
yellow & gray
Shipping Port:
xiamen port
Lead Time：
15 days

500 Monoblock Bridge Saw infrared Stone Cutting Machine

This Stone Bridge Saw worktable can be turned 0-85 degree + 360 degrees rotation every 45 degrees automatic positioning, with arbitrary angle positioning and braking, the machine head automatically rotates 90 degrees + automatic tilt 45 degrees. It can cut rectangles, arcs, circles, octagons, and inverted corners.

625 Mitre Cut Bridge Saw

It designed to cut granite, marble, quartz and other natural and engineered stones, Blade tilt 45° automatically for mitre cut. Cast iron bridge V-Conical oil bath guide ways X axis Oil bath THK style high precision rollers Y axis Full oil bath with dust bellow covers The 24HP 50mm Arbor motor can handle up to a 36" blade." Z Travel is 18" Heavy duty rigid construction Super heavy duty steel legs included Rotating tilt table locks in any position with hard stops at 0, 45, 90,degree and 135 degree position, Innovative variable degree table locking system. Table size 10'.5"x 6'7" Has wireless remote that controls saw and table functions Hydraulic plunge miter Computer readout digital touch control Mitsubishi drive controllers AC Inverter duty motors for all 3 Axis Easy to sse programmable cut Digital touch screen read out Laser guide

Tilting Granite Marble Bridge Cutting Machine

Cast iron bridge Special tilting head with top motor V-conical oil bath guide ways X axis Oil bath THK style high precision rollers Y axis Full oil bath with dust bellow covers The 30HP 50mm Arbor motor can handle up to a 32" blade Heavy duty rigid construction Super heavy duty steel legs included Rotating tilt table locks in any position with hard stops at 0, 45, 90,degree and 135 degree position innovative variable degree table locking system. Table size 126"*79" Has wireless remote that controls saw and table functions Hydraulic Plunge Miter, Computer readout digital touch control Mitsubishi drive controllers AC inverter duty motors for all 3 Axis Easy to use programmable cut Digital touch screen read out

Infrared Bridge Stone Cutting Machine

Infrared stone bridge cutter optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting rectangles, octagons, arcs, and circles.

Middle Block Stone Bridge Saw

It can be used for border stone, gravestone, gravestone and other process-like rectangular thick materials and polygon thick materials(table rotation 0-45-90 degree is optional), especially suitable for high value, high precision and high efficiency demand users.

Bridge Double Directions Block Cutting Machine

This Stone Block Cutting Machine has the advantages of high cutting efficiency, high splicing precision, good flatness, high stability, simple operation and so on, especially suitable for high-value granite. The cutting of raw marble.

Multi-Blade Bridge Stone Cutting Machine

The Multi blade stone bridge saw has fine processing, stable performance, high automatic production efficiency, convenient installation, operation and maintenance, and meets the development demand of international stone processing.

CNC Marble Stone Bridge Saw Cutting Machine For Profiling Engraving and Polishing

This machine adopts bridge structure. Full servo control, high precision linear track and oil flow type and dust-proof structure, to ensure the accuracy and service life of the equipment This machine can realize CNC programming and CAD import, template copying tracking, to meet all kinds of high precision stone (cement products) special-shaped workpiece processing. Adjusting the parameters can realize the operation of one person and multiple machines.

Type	Unit	HTQ350A	HTQ350B	HTQ350C	HTQ350D	HTQ350E
Blade diameter	mm	Φ250-Φ350	Φ250-Φ350	Φ250-Φ350	Φ250-Φ350	Φ250-Φ350
Max.working dimensions (L×W×H)	mm	3200×2000×50	3200×2000×50	3200×2000×50	3200×2000×50	3200×2000×50
Workbench dimensions (L×H)	mm	3200×2000	3200×2000	3200×2000	3200×2000	3200×2000
Head rotating degree	n°	0-90°	0-90°	0-90°	0-45°-90°	0-360°
Chamfering direction	n°	---	0-90°-270°-360°	0-90°-270°-360°	---	0-360°
Blade tilting degree	n°	---	0-45°	0-45°	0-45°	0-45°
Workbench rotating degree	n°	0-85°	0-85°	0-85°	0-85°	0-85°
Main motor power	kw	11	11	11	11	11
Water consumption	m³/h	3.5	3.5	3.5	3.5	3.5
Overall dimensions (L×W×H)	mm	5000×3000×2500	5000×3000×2500	5000×3000×2500	5000×3000×2500	5000×3000×2500
Machine weight	kg	3500	3500	3500	3500	3500
