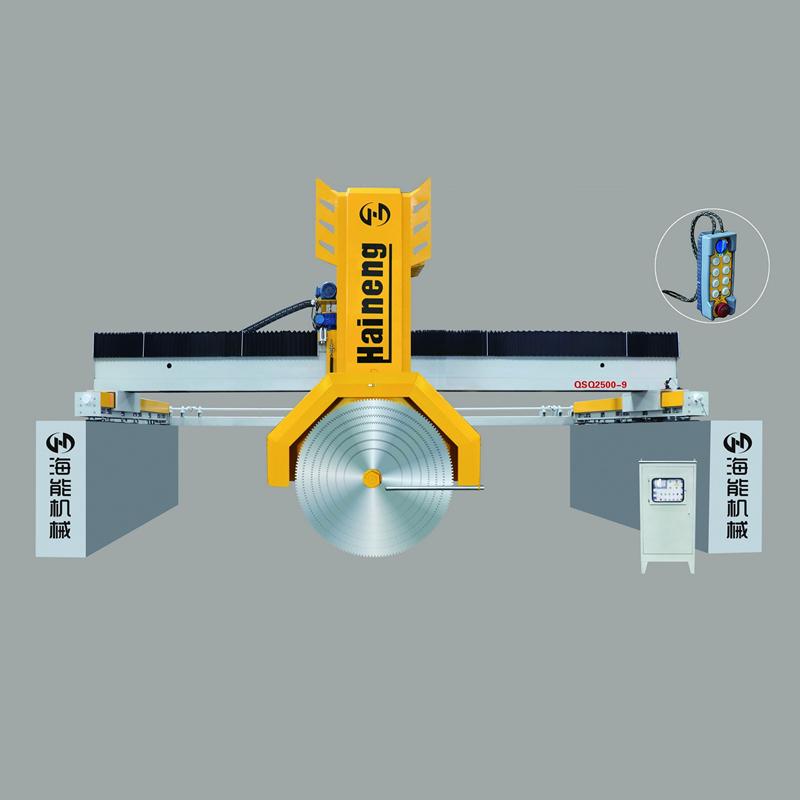

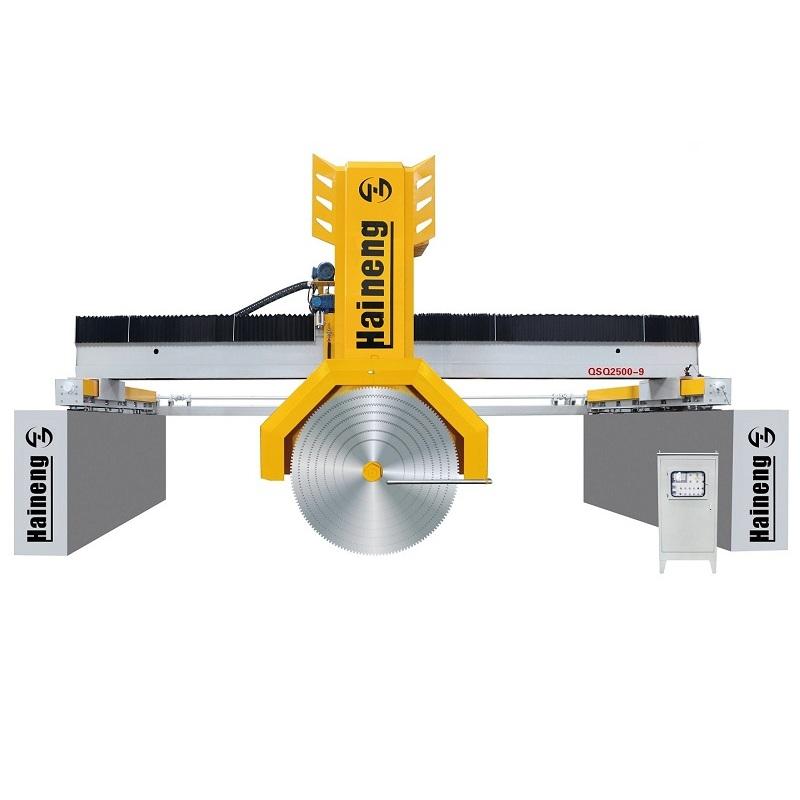

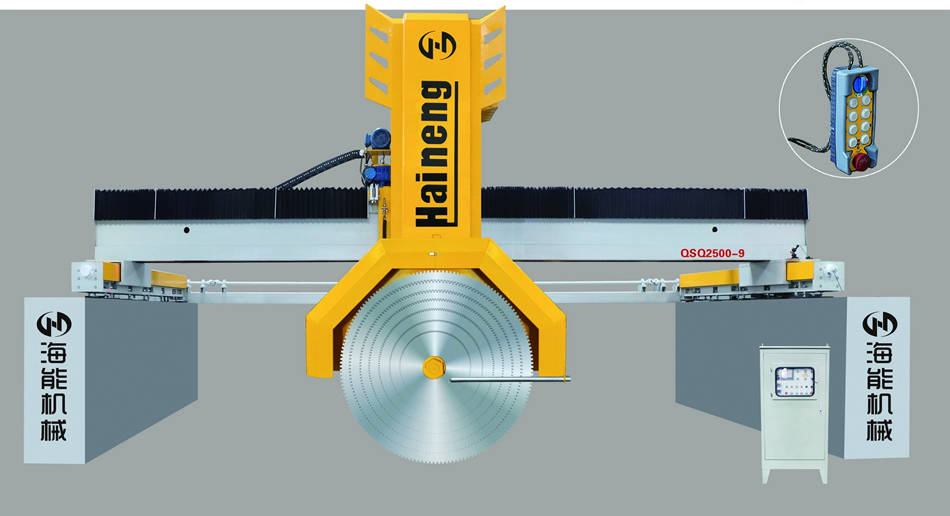

Multi-Blade Bridge Stone Cutting Machine

The machine has fine processing, stable performance, high automatic production efficiency, convenient installation, operation and maintenance, and meets the development demand of international stone processing.

Item NO.:
QZQ2500A/2800A/3000A/3200A
Order(MOQ):
1
Payment:
T/T
Product Origin:
China
Color:
Yellow & gray
Shipping Port:
Xiamen port
Lead Time：
15 days

350 Monoblock Bridge Sawing Machine

This machine is especially suitable for home decoration factory to cut stone slab, artificial stone, marble, granite and other home decoration materials.

500 Monoblock Bridge Saw

Cast iron bridge/W V Conical guide ways X axis THK style high precision rollers Y axis Full oil bath with dust covers The 24HP motor can handle up to an 24" blade. Heavy duty rigid construction Power Rotating head on saw Table size 10'.5"x 6'7" Has Wireless Remote That Controls Saw And Table Functions Computer readout digital touch control Mitsubishi drive controllers AC Inverter Duty motors for all 3 Axis Easy To Use Programmable Cut Digital Touch Screen Read Out Amp Gauge for determining proper cutting speed Laser guide Large work envelope

625 Mitre Cut Bridge Saw

It designed to cut granite, marble, quartz and other natural and engineered stones, Blade tilt 45° automatically for mitre cut. Cast iron bridge V-Conical oil bath guide ways X axis Oil bath THK style high precision rollers Y axis Full oil bath with dust bellow covers The 24HP 50mm Arbor motor can handle up to a 36" blade." Z Travel is 18" Heavy duty rigid construction Super heavy duty steel legs included Rotating tilt table locks in any position with hard stops at 0, 45, 90,degree and 135 degree position, Innovative variable degree table locking system. Table size 10'.5"x 6'7" Has wireless remote that controls saw and table functions Hydraulic plunge miter Computer readout digital touch control Mitsubishi drive controllers AC Inverter duty motors for all 3 Axis Easy to sse programmable cut Digital touch screen read out Laser guide

Miter Stone Bridge Saw

Cast iron bridge Special tilting head with top motor V-conical oil bath guide ways X axis Oil bath THK style high precision rollers Y axis Full oil bath with dust bellow covers The 30HP 50mm Arbor motor can handle up to a 32" blade Heavy duty rigid construction Super heavy duty steel legs included Rotating tilt table locks in any position with hard stops at 0, 45, 90,degree and 135 degree position innovative variable degree table locking system. Table size 126"*79" Has wireless remote that controls saw and table functions Hydraulic Plunge Miter, Computer readout digital touch control Mitsubishi drive controllers AC inverter duty motors for all 3 Axis Easy to use programmable cut Digital touch screen read out

Infrared Bridge Stone Cutting Machine

Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting rectangles, octagons, arcs, and circles.

Middle Block Stone Bridge Saw

It can be used for border stone, gravestone, gravestone and other process-like rectangular thick materials and polygon thick materials(table rotation 0-45-90 degree is optional), especially suitable for high value, high precision and high efficiency demand users.

Bridge Double Directions Block Cutting Machine

This machine has the advantages of high cutting efficiency, high splicing precision, good flatness, high stability, simple operation and so on, especially suitable for high-value granite. The cutting of raw marble.

CNC Marble Stone Bridge Saw Cutting Machine For Profiling Engraving and Polishing

This machine adopts bridge structure. Full servo control, high precision linear track and oil flow type and dust-proof structure, to ensure the accuracy and service life of the equipment This machine can realize CNC programming and CAD import, template copying tracking, to meet all kinds of high precision stone (cement products) special-shaped workpiece processing. Adjusting the parameters can realize the operation of one person and multiple machines.

Bridge Hydraulic Stone Cutter
Type	Unit	2500A	2800A	3000A	3200A
Main motor power	kw	30-37	37-45	45-55	55-75
Blade diameter	mm	Φ1600-Φ2500	Φ1600-Φ2800	Φ1600-Φ3000	Φ1600-Φ3200
Elevation travel of motor	mm	1200	1300	1400	1500
Slicing stroke	mm	2200	2200	2200	2200
Cutting stroke	mm	4500	4500	4500	4500
Saw blade number	pcs	1-9	1-9	1-9	1-9
Overall dimensions (L×W×H)	mm	8000×3800×4200	8000×3800×4500	8000×3800×4800	8000×3800×5000
Machine weight	kg	12000	12500	13000	13500
