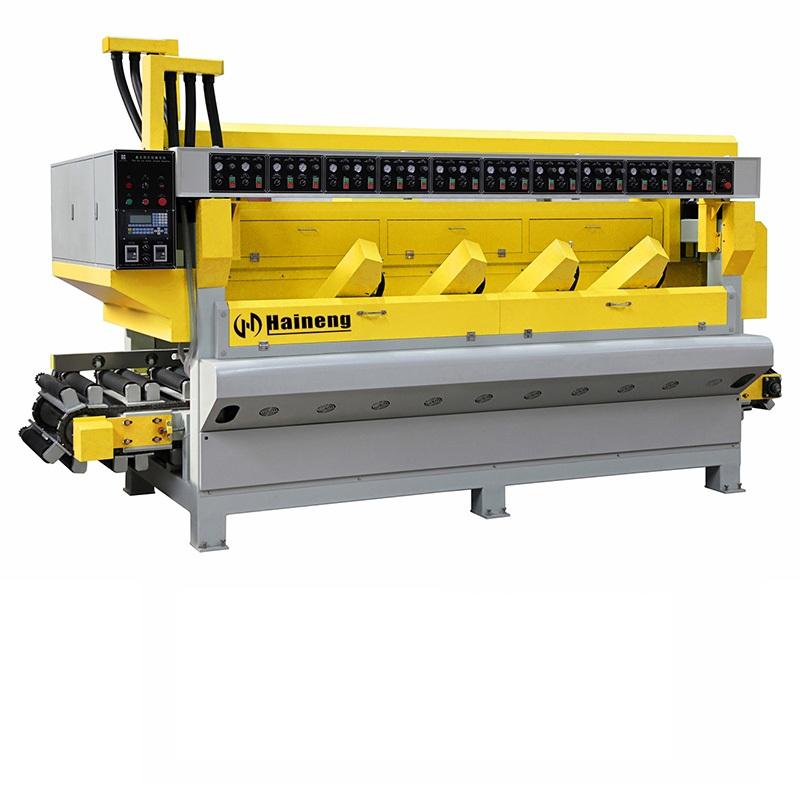

Automatic Stone Bollard Polishing Machine
Product Features

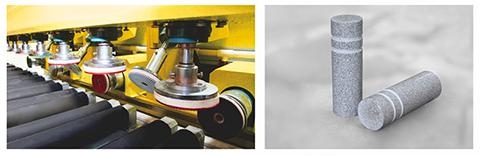

This machine is another new product after the cylindrical polishing machine. With the rapid development of the market, it is a fully automatic stone bollard polishing machine developed in response to the requirements of many companies in the market. This machine can polish three surfaces at the same time, Considering the length and width of the bollard, the R&D department of the company finally developed it successfully and put it on the market after a month of public relations. Under the premise of the machine, the multi-station main body polishing is performed on the cylinder, cylinder, and cylinder edge (45 degrees). The polishing luminosity is good, the surface will not miss polishing, the precision is controllable, the output is high, the specification is adjustable, and the product quality is guaranteed. It is another highlight of the car pillar manufacturer. The company is committed to contributing to the stone deep processing industry.
Technical Data
Name |
Unit |
DCZP-260 Stone Bollard Polishing Machine |
Processing diameter |
mm |
180-260 |
Processing length |
mm |
500-800 |
Number of chamfering heads |
|
4pieces×1.1kw |
Column polishing head number |
|
10pieces×1.5kw |
Column head polishing head number |
|
6pieces×1.5kw |
Column swing motor |
|
2pieces×1.1kw |
Dish diameter |
mm |
125 |
Conveyor motor |
kw |
1.5 |
Total power |
kw |
32 |
Dimension size |
mm |
5100×2000×2300 |
