Stone Bottom Trimming Machine

Since the machine came into being,it has completely turned the bottom of the stoneprocessing enterprisescrap board into treasure, greatly reduced the production cost ofthestone processing enterprises,and improved thebenefit.

  • Item NO.:

    QBD500A/B
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    china
  • Color:

    Yellow & gray
  • Shipping Port:

    Xiamen port
  • Lead Time:

    15 days
Product Detail

Product Introduction

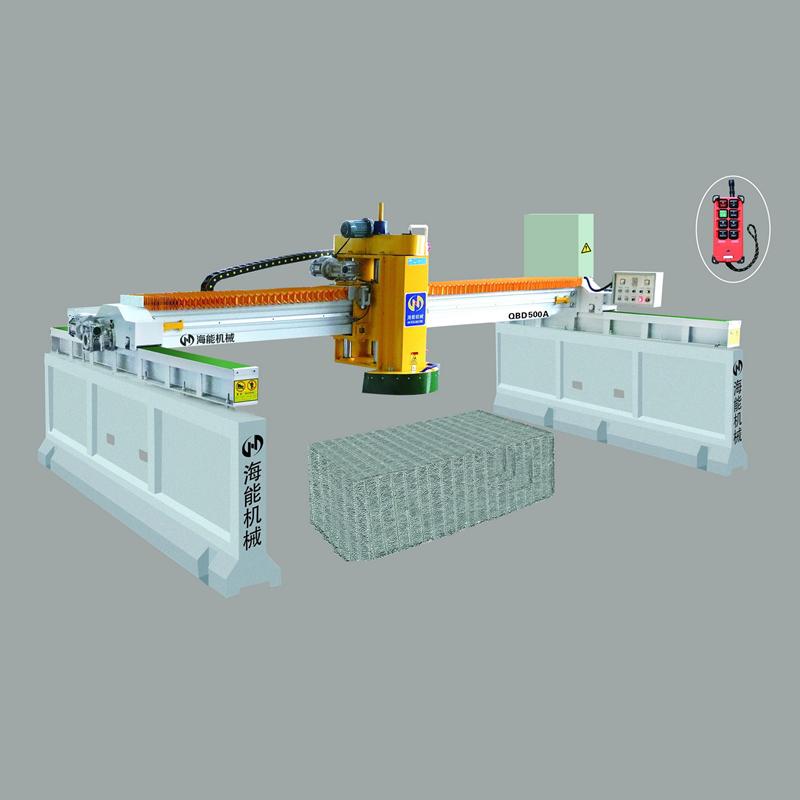

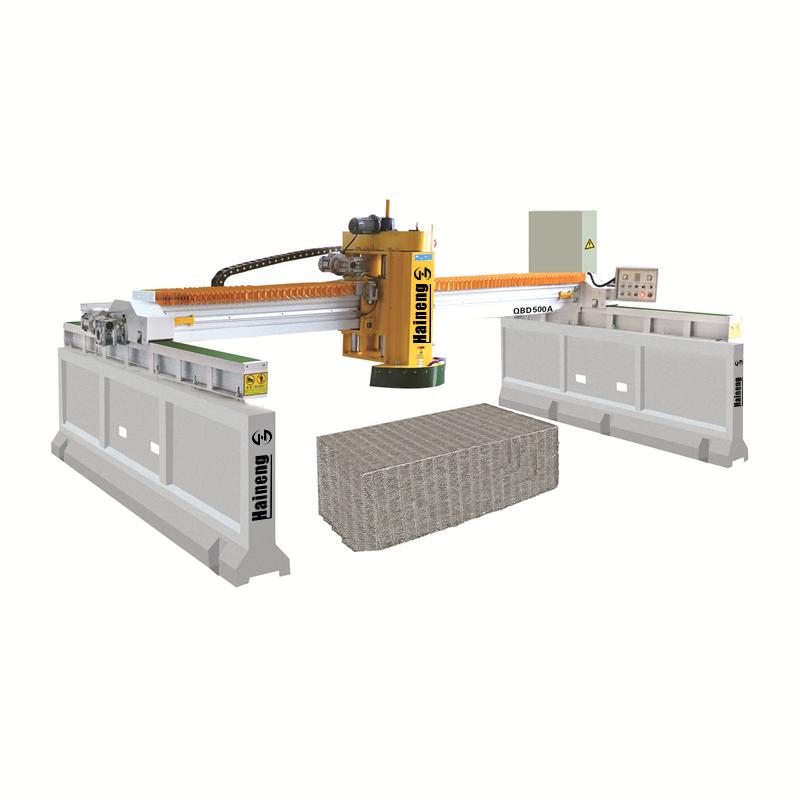

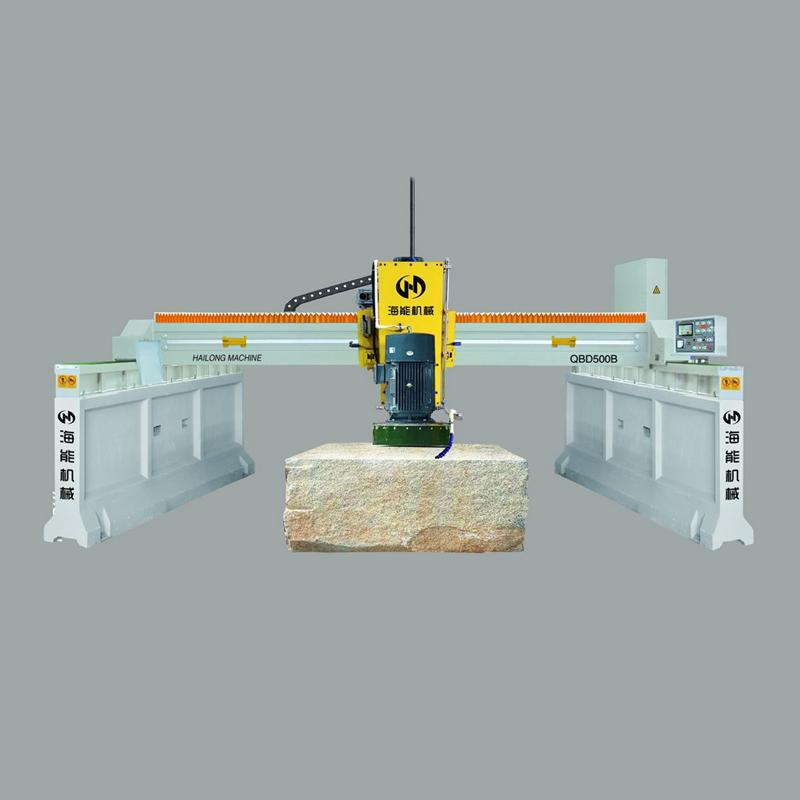

Bridge Bottom Trimming Machine is used for trimming plate bottom or thick material.

The machine adopts bridge structure and head moving working mode, which makes the machine agile and stable in precision .

Since the machine came into being,it has completely turned the bottom of the stone processing enterprisescrap board into treasure, greatly reduced the production cost ofthestone processing enterprises, and improved thebenefit.

Bridge Bottom Trimming Machine

Bridge Bottom Trimming Machine


Technical Parameters

Bridge Bottom Trimming Machine

Type

unit

QBD500A

QBD500B

Blade diameter

mm

Φ500

Φ500

Maximum processing size  (L×W×H)

rpm

3000×2000×250

3000×2000×250

Main motor power

kw

22

22

Total power

kw

26.5

26.5

Water consumption

m³/h

4

4

Dimension   (L×W×H)

mm

5000×4000×2500

5000×4000×2500

Total weight

kg

4500

5500

Bridge Bottom Trimming Machine

Processing

Bridge Bottom Trimming Machine
