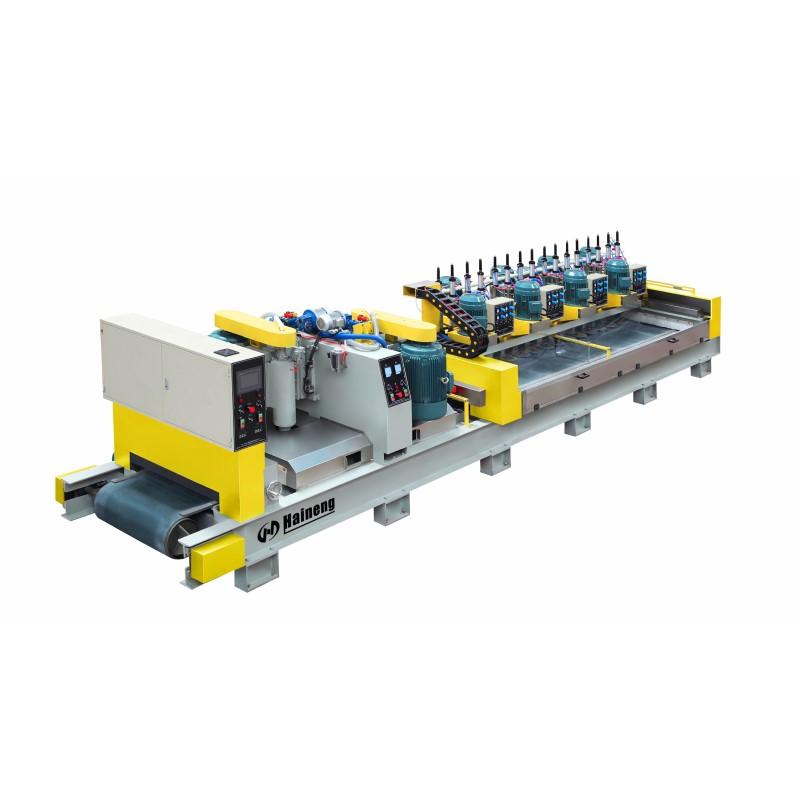

Swing Type Calibration and Polishing Machine

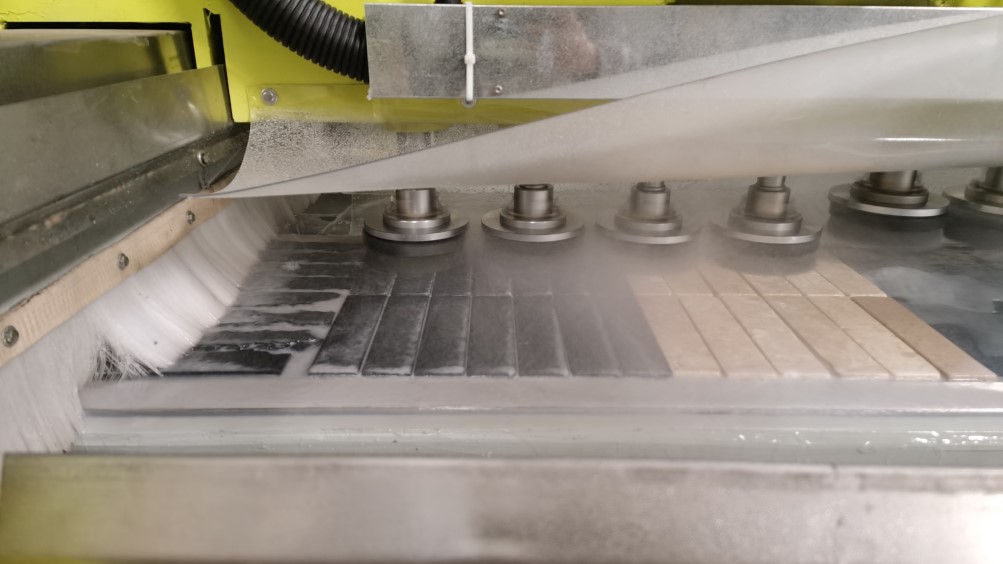

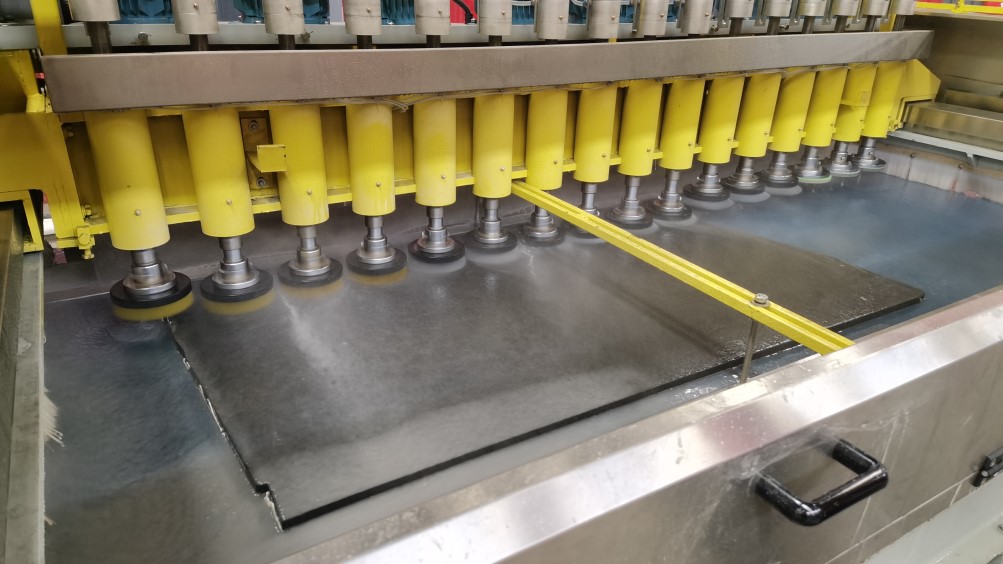

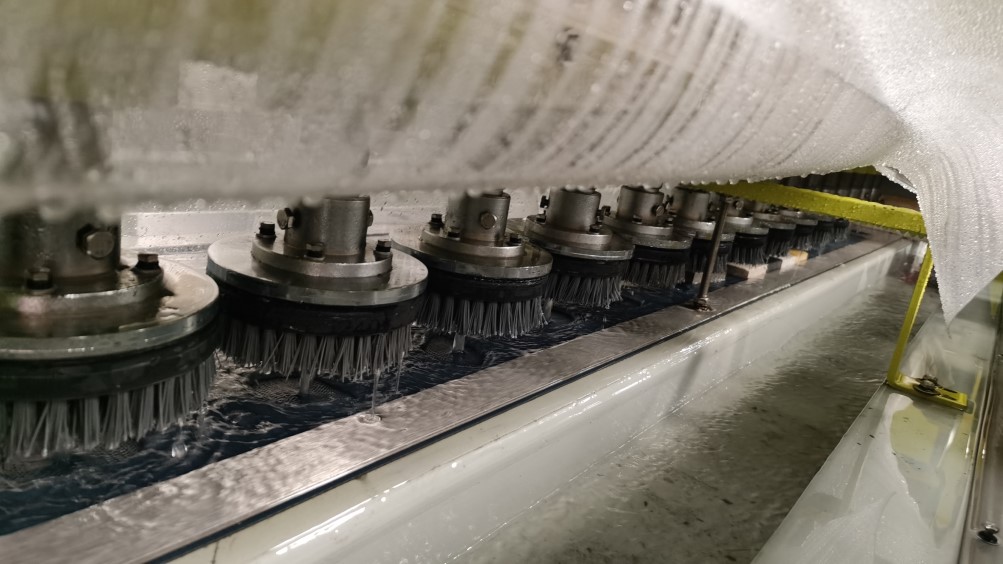

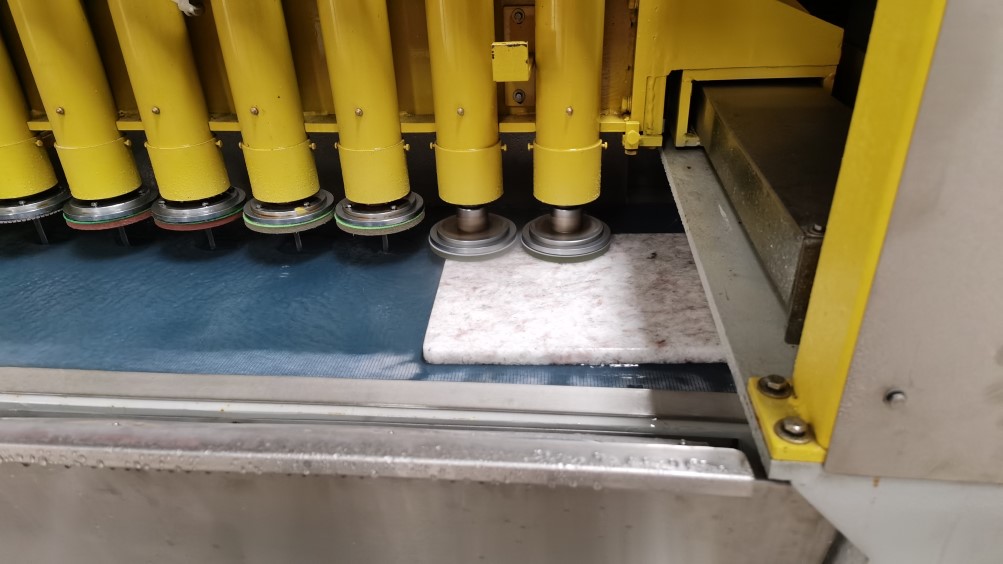

This Swing Type Stone Polishing Machine is a design that combines Calibration and Polishing functions into one. It can effectively solve the problem of uneven thickness of the plate and polish it at the same time. Small size, low labor cost and easy to use.

Brand:
HAINENG
Item NO.:
BDTP400-12/BDTP400-16/BDTP400-20/BDTP600-12/BDTP600-16/BDTP600-20
Order(MOQ):
1
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
15 Days

Mosaic Special-Shaped Machine

Equipped with intuitive controls and precise cutting capabilities, our Mosaic Special-Shaped Machine ensures exceptional accuracy and efficiency. Whether you're a professional mosaic artist or a DIY enthusiast, this machine empowers you to explore new dimensions of creativity and craftsmanship.

Multi-Blade Stone Strips Cutting Machine

This machine is divided into automatic and semi-automatic models for users to choose, the body is light, easy to move, long service life, accurate cutting, high efficiency.

Automatic Continuous Multi-blades Stone Cutting Machine

Tile Cutting Machine is a multi-blade cutter used for cutting or slotting tile and stone for 10-12 pieces at most at one time. It can cut tile into strip or square, diamond mosaic with special pressing plate. Different width can be processed simulaneously with chipping free cutting edges, and also chamfering function.It is high cutting precision, high efficiency and has a excellent effect.

Automatic Multiple Tile Cutting Machine

XZQ-600/800 tile cutting machine can process different widths at the same time, and has chamfering function. It has high cutting accuracy and high efficiency. It can cut or groove 10-12 tiles and stones at the same time,and it have double-groups and three-groups blades cutting machine.

Swing Type Multi-Heads Polishing Machine

This Swing Type Multi-Heads Polishing Machine can polish stones with a thickness of 4-5mm with zero damage to the material. It is the best choice for polishing Mosaic particles and small pieces of plate chips.

Round Cap Grinding And Chamfering Polishing Machine

Round Cap Grinding And Chamfering Polishing Machine adopts the latest technology in the stone industry in 2023, which greatly reduces labor costs, and has different cutting positions at multiple stations, effectively improving efficiency and accuracy.

Stone Round Cake Grafts Grinder Polishing Machine

The fully automatic round cake polishing machine is a new type of equipment for marble, stone, granite, artificial stone, and granite round cakes. The equipment can be operated in an assembly line and polish the three sides of the round cake at the same time to achieve the same brightness on the three sides.

High Efficiency Stone Slicer Machine

Slices Breaking Machine, a stone cutting machine, is also used to break new stones and ores. It is a great product to stock in a range of sizes for different requires.

Type	Unit	BDP600-16	BDP600-20	BDP800-16	BDP800-20	BDP1000-16	BDP1000-20
Calibration Head	piece	2	2	2	2	2	2
Calibration width	mm	600	600	800	800	1000	1000
Polishing Heads	piece	16	20	16	20	16	20
Belt width	mm	650	650	850	850	1050	1050
Calibration Dish Diameter	mm	650	650	850	850	1050	1050
Polishing Abrasive Diameter	mm	150	150	150	150	150	150
Max.polishing Size	mm	600	600	800	800	1000	1000
Max.polishing thickness	mm	50	50	50	50	50	50
Polishing Speed Range	M/min	1-3	1-3	1-3	1-3	1-3	1-3
Grinding Head Motor Power	kw	4kw×8	4kw×10	4kw×8	4kw×10	4kw×8	4kw×10
Calibration Motor Power	kw	15kw×2	15kw×2	18.5kw×2	18.5kw×2	18.5kw×2	18.5kw×2
Swing Motor Power	kw	1.1	1.1	1.1	1.1	1.1	1.1
Belt Motor Power	kw	3	3	3	3	3	3
Total power	kw	67.2	75.2	74.2	82.2	74.2	82.2
Total Weight(About)	kg	6300	7000	7200	8000	8000	8800
Dimension size	m	6.8×2.1×2.2	7×2.1×2.2	7.4×2.2×2.2	8.5×2.2×2.2	7.6×2.3×2.2	8.7×2.3×2.2
