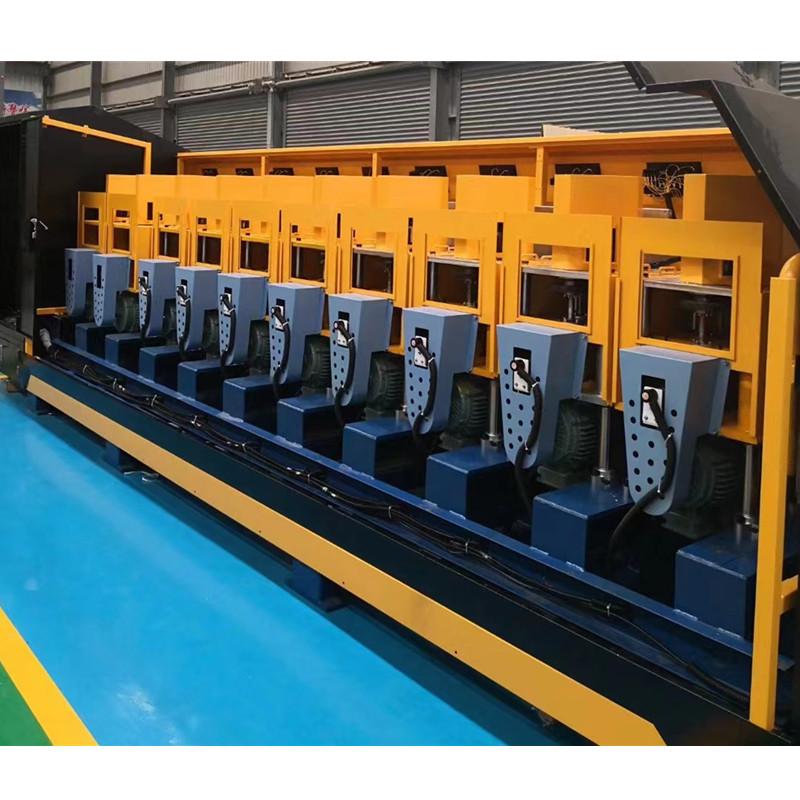

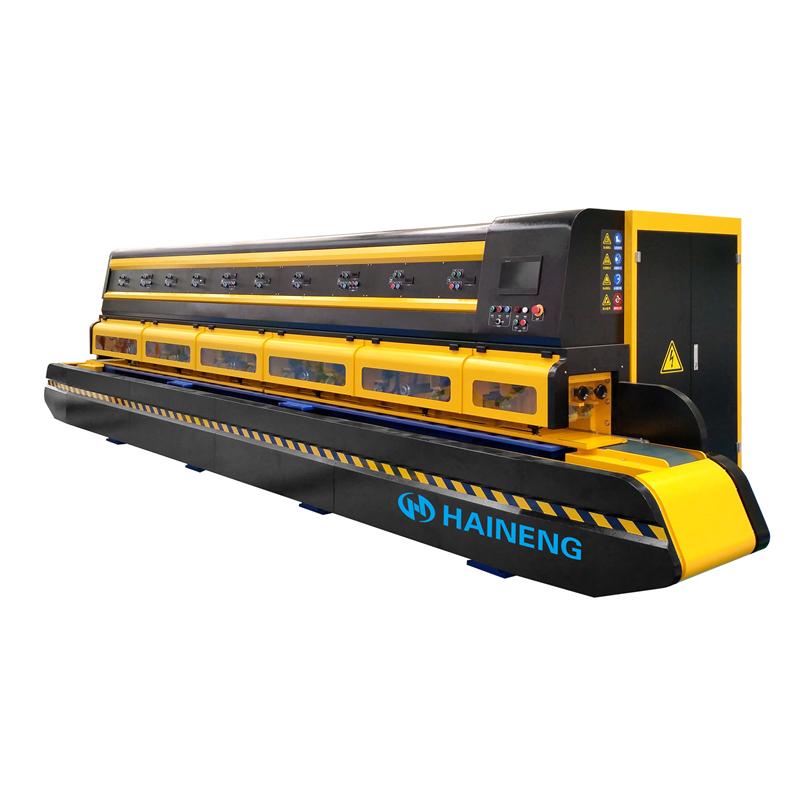

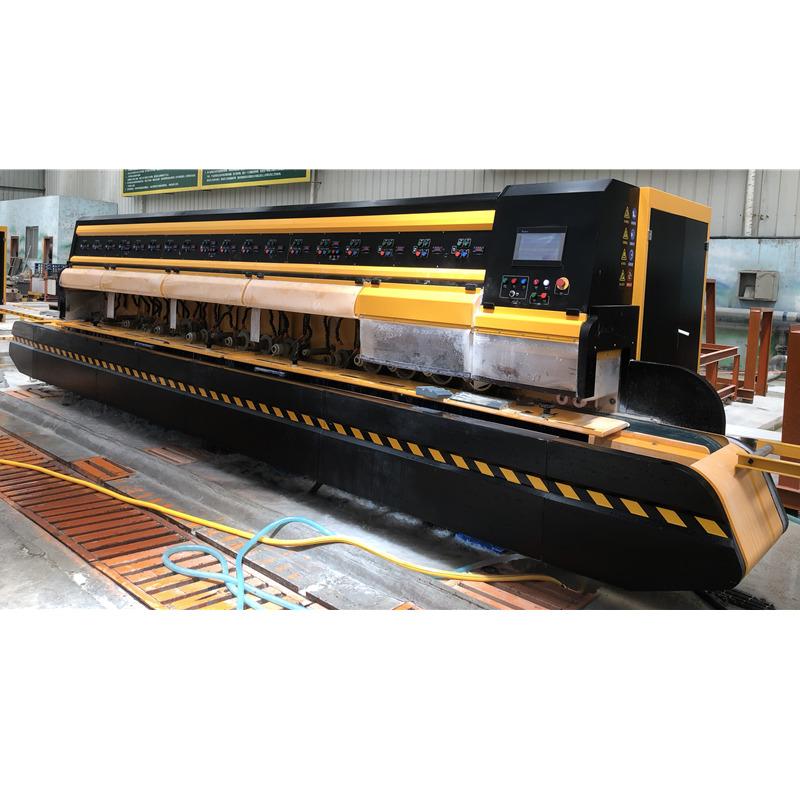

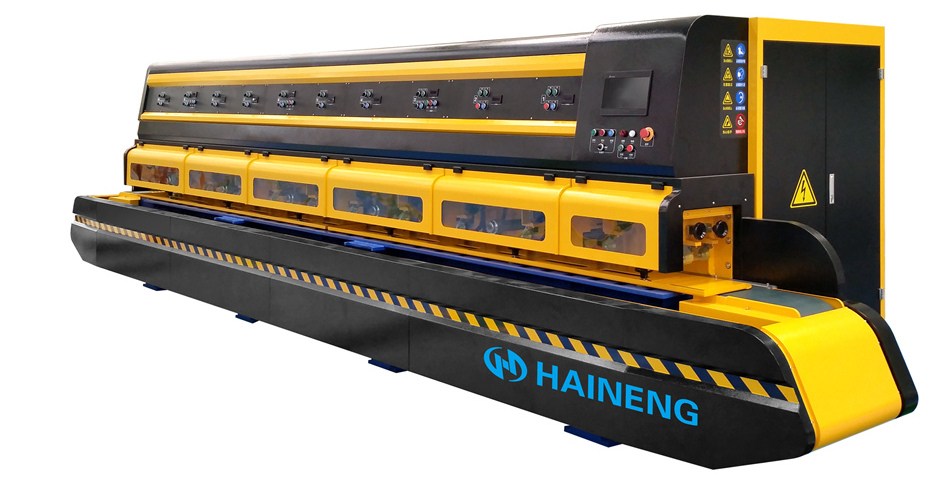

CNC Stone Profiling Line Cutting Polishing Machine

Intelligent operating system, easy to operate.

Brand:
HAINENG
Item NO.:
XTJ-V12
Order(MOQ):
1
Payment:
T/T
Product Origin:
china
Color:
yellow & gray
Shipping Port:
xiamen port
Lead Time：
15 days

Bridge ( Double Beam) CNC Profiling Cutting Machine

The CNC Profiling Machine adopts double beam structure of gantry type. Full servo control, high precision linear track and oil-immersed and dust-proof structure, to ensure equipment accuracy and service life.

Automatic Special Shapes Profiling Cutting Machine

The machine automatically tracks model of curve(straight) line through the fiber optic probe,automatically profiles through diamond circular saws to cut stone with curve(straight) line and craft products,uses inverter to control up-down rising and left-right feeding, adjusts the speed according to the stone material. If choosing rotating worktable, the processing of arc-shaped lines can be done. This machine adopts PLC system, high degree of automation, high precision cutting; using double-blades designing, with high cutting efficiency, high stability, easy-operation to suit for lines, arc-shaped lines, Roman column,etc. Note: Could choose CNC system, replacing the trouble of making a model, cutting effect more automatically and accurately.

Portal Multifunctional Edge Grinder

It is suitable for processing artificial stone, marble, granite and other grinding lines.

Diamond Bead Wire Saw Marble Granite Cutting Machine

CNC diamond wire saw machine adopts CNC control system, man-machine integration operation interface, supplemented by super high precision servo motor drive, lifting is controlled by four independent guide rail, flywheel around walking up and down the track, stable equilibrium.

Stone Baluster Profiling Machine

This machine adopts microcomputer (numerical control) control, one or three frequency converters for speed regulation, bridge structure, synchronous lifting and left and right walking, convenient operation, practicality and high efficiency. It is specially used for processing railings, columns, balusters, column caps, blocking stones and other products.

Stone Slab Stylobate Profiling Cutting Machine

This machine is designed based on the structural principle of a vertical lathe. It is mainly used to process various stone column caps, column bases, balls, etc. It adopts microcomputer automatic copying, lifting and lowering to adjust the cutting characteristics, which makes up for the high consumption of manual processing. , The defect of poor accuracy, advanced technology, reduce the processing cost.

Automatic Second Change Grinding Head Line Stone Profiling Cutting Machine

loading and unloading, on the wheel, really labor-saving

QZM3000-1 Multi-Performance Granite Marble Edge Profiling Machine

Stone Edge Grinding machines can be used for deburring, dressing, polishing and grinding metal workpieces. For example, used to grind welds, remove rust and prepare metal surfaces for painting or welding.

Profiling Line machine
Type	unit	XTJ-V10	XTJ-V12
Profiling wheel	pcs	2-4
CNC Polishing wheel	pcs	8
Profiling/Polishing wheel Dia.	mm	200/260
Spindle dia.	mm	60
Working width	mm	300-400
Processing thickness	mm	150
Spindle rotation speed	rpm	1200-2800
Cutting speed	m/min	0.5-1.5
Spindle power	kw	1#-10#=7.5kw,2#15kw	1#=7.5kw,2#=15kw,3#-5#=11kw,Other 7.5kw
Gross power	kw	About 87	Ablout 115
Consumption	T/h	7.5	7.6
Overall size（LxWxH）	mm	7600×1850×2000	8000×1850×2000
Gross weight	kg	8000	8300

Stone Profiling Machine

CNC Stone Profiling Line Cutting Polishing Machine
