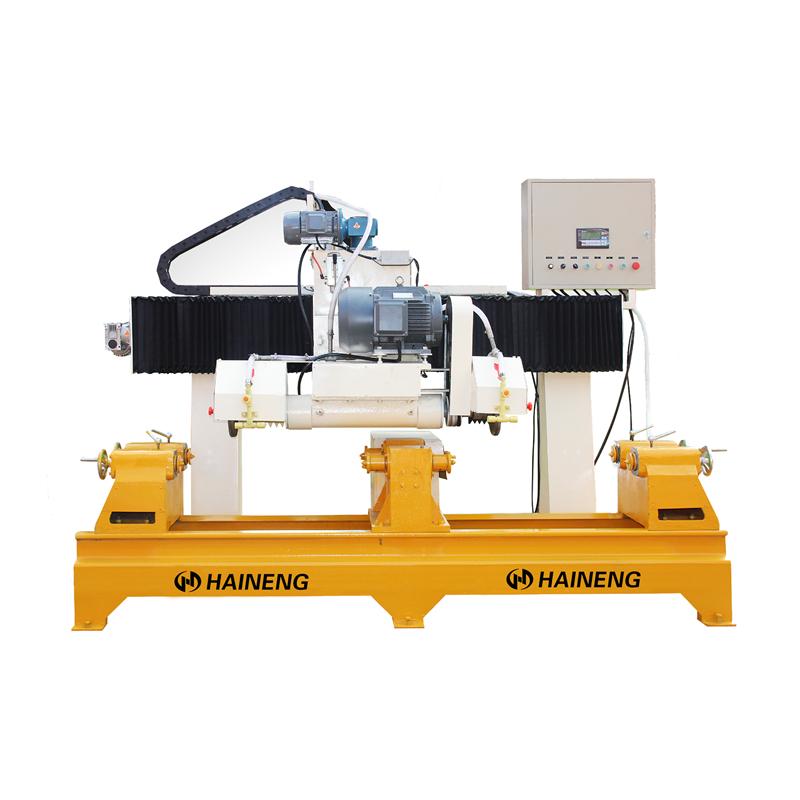

Stone Baluster Profiling Machine

This machine adopts microcomputer (numerical control) control, one or three frequency converters for speed regulation, bridge structure, synchronous lifting and left and right walking, convenient operation, practicality and high efficiency. It is specially used for processing railings, columns, balusters, column caps, blocking stones and other products.

  • Item NO.:

    YZQ800-4
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow
  • Shipping Port:

    Xiamen port
  • Lead Time:

    15 days
Product Detail

Product introduction


Stone Baluster Profiling Machine is an ideal stone processing equipment specially used for processing cylinders such as Roman columns and railings.

The machine adopts advanced electronic technology, fiber optic probe, scanning according to the template, high degree of automation and long service life. It greatly reduces the labor intensity of workers, greatly improves labor productivity, and is suitable for mass production.

The machine has the advantages of beautiful appearance, novel structure, high use efficiency, good quality, simple operation and convenient use.


Technical parameters


Stone Baluster Profiling Machine

Type

unit

YZQ800-4

Max. cutting qty.

n

4

Blade diameter

mm

Φ350-Φ400

Max. cutting length

mm

800

Max. cutting diameter

mm

Φ200

Power of main motor

kw

11

Total power

kw

14.5

Water consumption

m³/h

2.8

Dimension                      (L×W×H)

mm

3010×1021500

Total weight

kg

2000

/stone-profiling-machine_c2

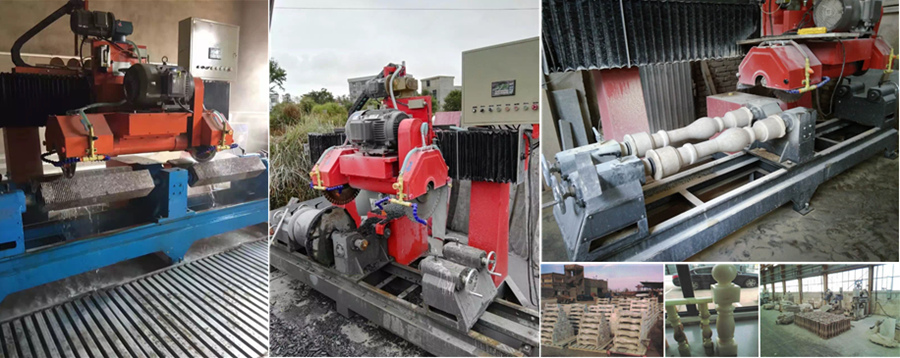

Processing

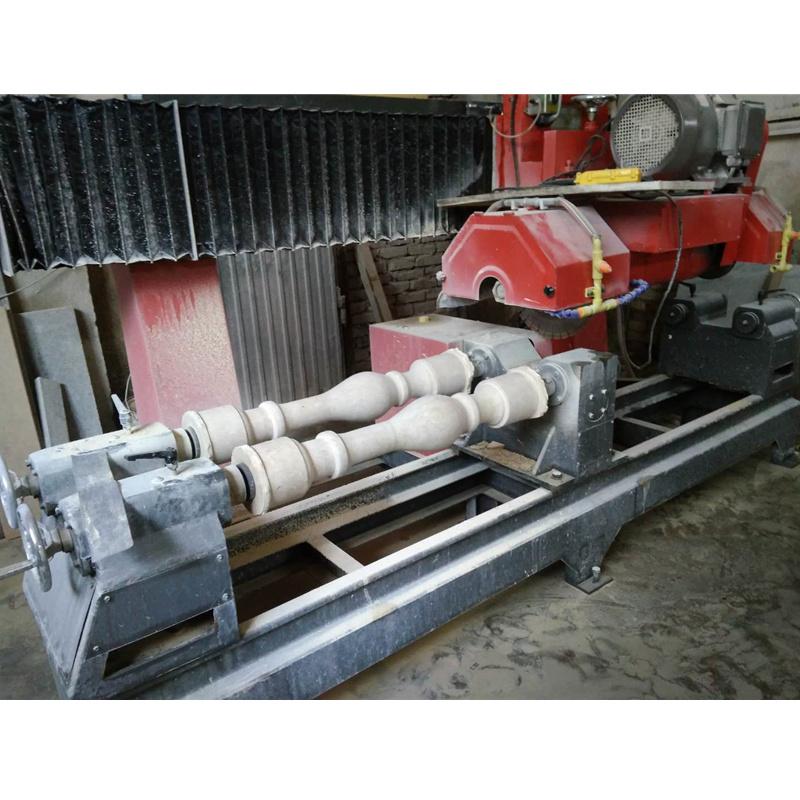

Stone Baluster Cutting Machine

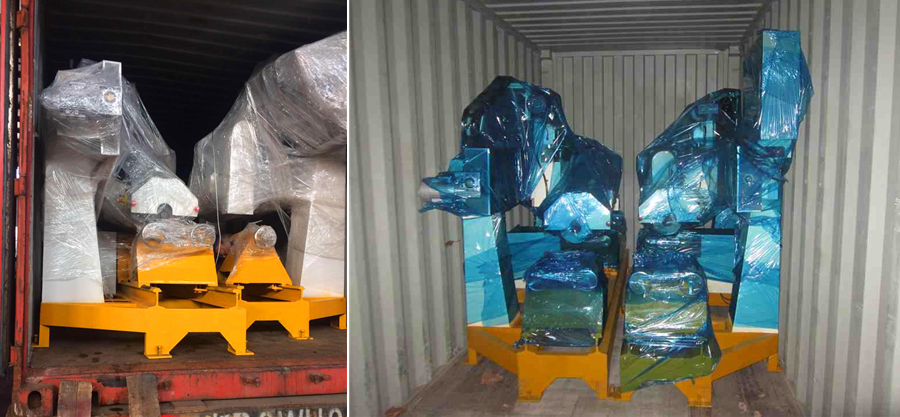

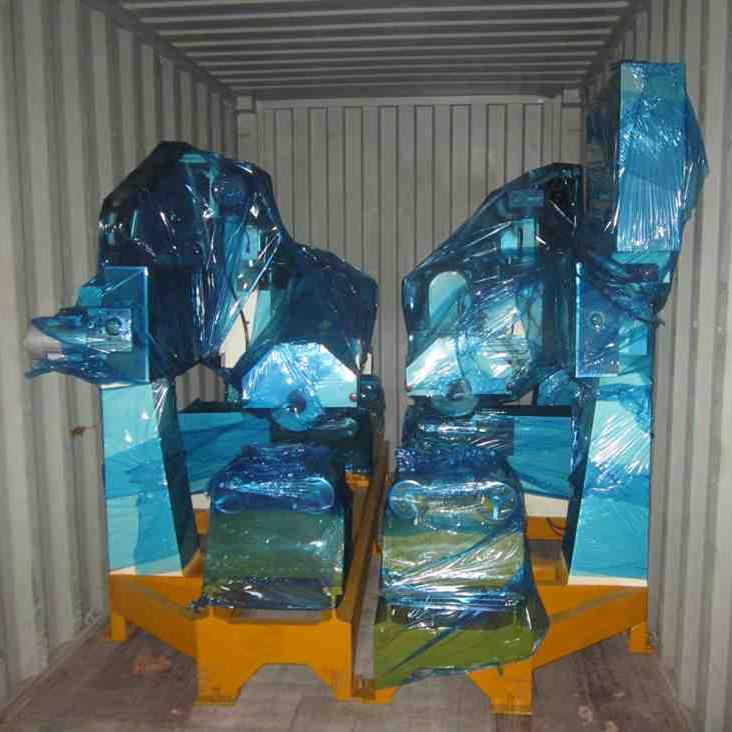

Loading container


Stone Baluster Cutting Machine
