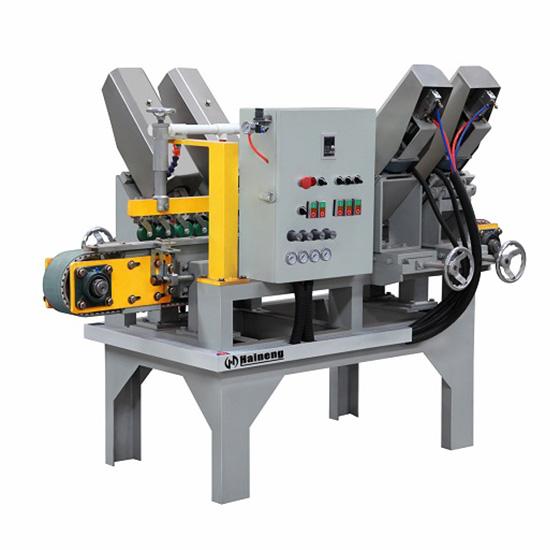

Error-Free Bilateral Chamfering Machine For Accurate Finishing

The Bilateral Chamfering Machine offers precise, efficient edge finishing with dual-sided chamfering capabilities. Its advanced automation ensures high-speed, error-free operation, while customizable settings cater to diverse materials. Ideal for high-volume production, this machine combines accuracy and reliability, enhancing productivity and quality in any workshop.

Item NO.:
SBDJ-100/SBDJ-457/SBDJ-305/SBDJ-610
Order(MOQ):
1
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
15 Days

Stone Plate Water Jet Cutting Sink hole drilling machine

Technical parameters Product name Stone Plate Drilling Machine Brand Haineng Machine material Reinforced aluminum machine body Dust removal method Automatic sprinkler Motor Power 3.5KW Rotating speed 0-18000 RPM Maximum hole size 800x550mm Total length 1350mm Maximum opening thickness 30mm Voltage 220V Features Opening、Edging、Counter Basin Loading

Stone Bottom Trimming Machine

Since the machine came into being,it has completely turned the bottom of the stoneprocessing enterprisescrap board into treasure, greatly reduced the production cost ofthestone processing enterprises,and improved thebenefit.

Granite Automatic Flaming Machine

Moved by chain and moving wheel, the stone is conveyed to the flaming area of the high-speed automatic,With characteristic of high automation, easy operation, even flaming surface, low energy cost, and high efficiency, the machine can be used to process 240 sqm/hour, which can save the labor intensity dramatically.

Automatic Stone Drilling Machine

It is mainly used for deep hole processing of stone tablet, stone strip, lantern, handicraft, etc.

High Pressure Water Filter Press

Suitable for sand washing and sewage treatment, stone processing and sewage treatment, ceramic kaolin and porcelain clay pressing, mine tailings treatment, factory sewage treatment and other industries.

Stone Block Turnover Marble Block Tilting Machine

Stone Turn Over Machine with Overturn steady , high efficiency, 3 minutes when turning at 90 degrees The primary of the machine is to have large blocks overturn angle, instead of manually using the lever to reduce the labor of workers and improve labor productivity.

Stone Large Slab Scanner machine

A stone slab scanner is a device used to scan, measure and digitize stone slabs. These devices are commonly used in the stone processing and construction industries to ensure the accuracy and quality of marble, granite and other stone slabs.

Five-axis CNC Water Jet Ceramic Stone Universal Cutting Machine

The computer of the Five-axis CNC Stone Cutting Machine will calculate the density and thickness of the workpiece material to be cut in real time, and control the cutting head to run along the cutting path to achieve three-dimensional complex-shaped workpiece cutting.

Type	Unit	SBDJ100	SBDJ-457	SBDJ-305	SBDJ-610
Chamfer polishing heads	pcs	4	4	4	4
Belt width	mm	95	452	300	605
Polishing disc diameter	mm	125	125	125	125
Processing size	mm	100	457	305	610
Processing thickness	mm	20	20	20	20
Grinding head motor power	kw	1.1kw×4	1.1kw×4	1.1kw×4	1.1kw×4
Total Weight(About)	kg	1100	1500	1300	1600
