HGC-3000/4000/5000/6000 Water Film Dust Sucking Plant Stone Air Dust Collector

This Stone Air Dust Collector is an ideal environmental solution for stone factories, providing efficient performance while lowering operational costs and improving workplace conditions.

  • Brand:

    HAINENG
  • Item NO.:

    HGC-3000
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Color:

    Yellow
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    25 days
Product Detail

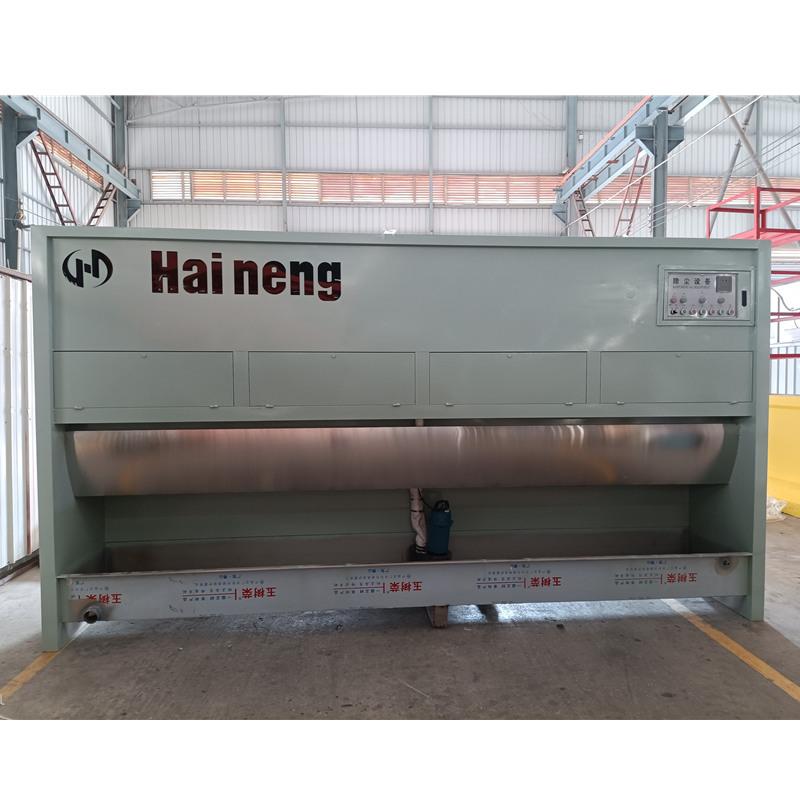

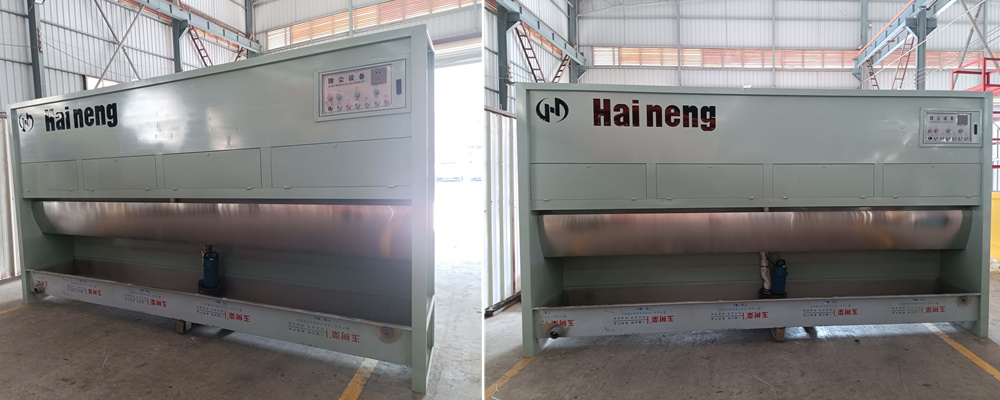

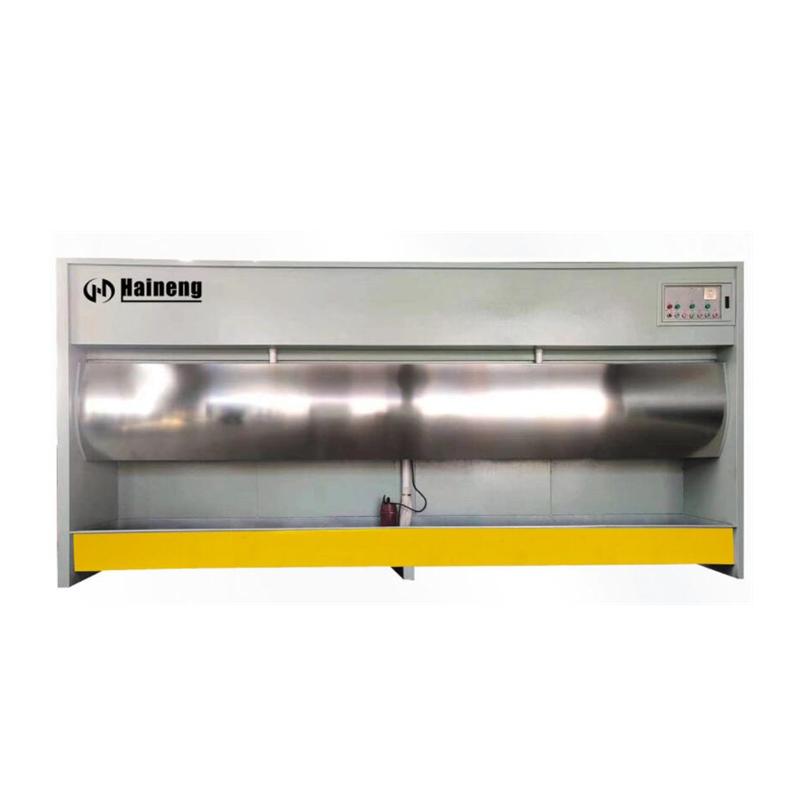

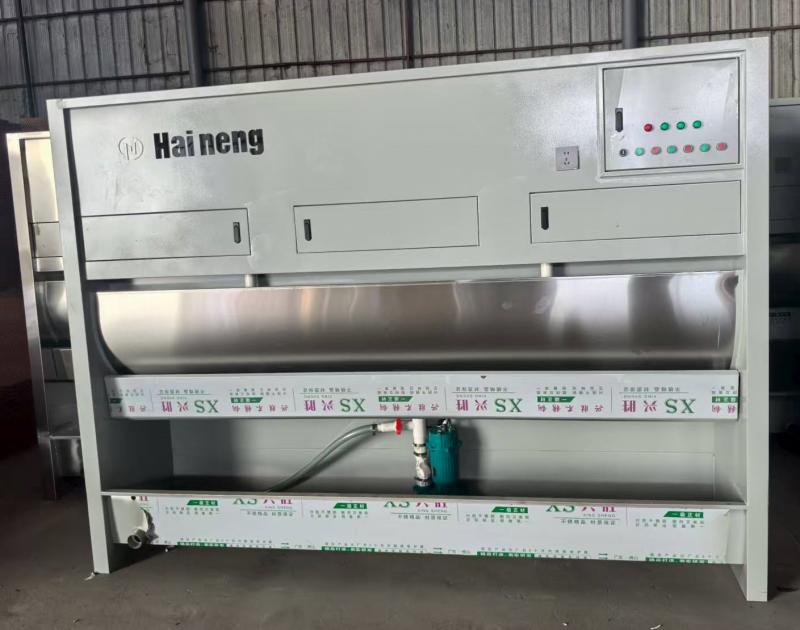

Water Film Dust Sucking Plant Stone Air Dust Collector

Product Introduction

This Stone Air Dust Collector is specifically designed for dust removal in stone factories, offering a range of advanced features to improve production environment cleanliness and safety.

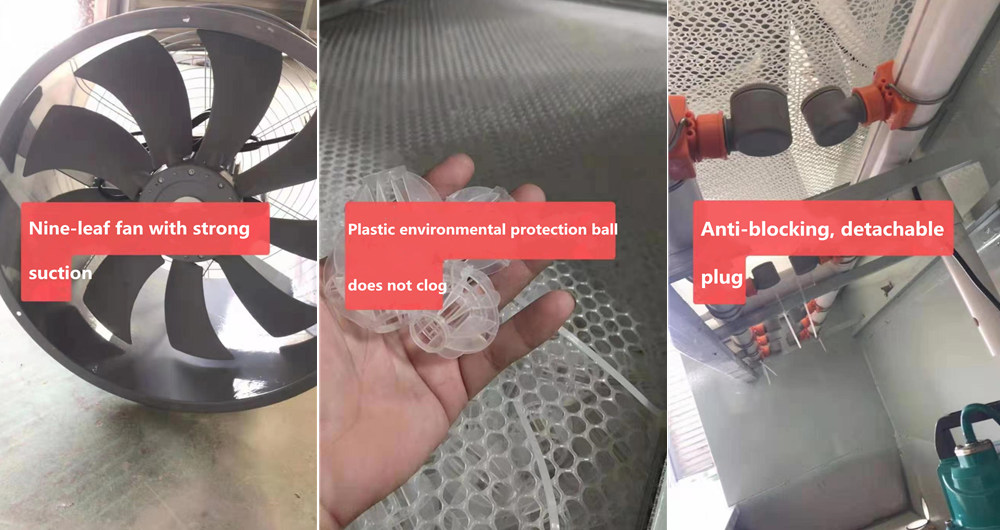

Product Feature:

Compact Footprint: The equipment is designed with a small footprint, taking up minimal space, making it ideal for various production environments without occupying excessive workshop area.
Efficient Dust Removal: The device effectively handles dust emissions, achieving a dust removal rate of over 95%. Dust is processed through water treatment, forming a slurry, which avoids secondary pollution and ensures a cleaner and safer working environment.
Energy-Efficient: The equipment features a shutdown delay function and lacks an automatic shutdown function, helping to save energy by reducing consumption by 30%-50%, meeting the growing demand for energy-saving and environmentally-friendly solutions in modern industries.
Low Investment Cost: The equipment is cost-effective, providing a high return on investment at a lower initial cost, making it suitable for small to medium-sized stone factories, reducing the financial burden on businesses.
Safe and Reliable: The equipment operates with low noise, ensuring minimal disruption to workers and a safer production environment. Its safety features are designed to protect workers during operation.
Easy Maintenance: With a simple structure, the equipment is easy to maintain and operate, reducing downtime and improving production efficiency.


Technical Parameters

Name

Unit

HGC-3000

HGC-4000

HGC-5000

HGC-6000

Fan Power

kw

1.5

1.5

1.5

1.5

Number of power

pcs

2

3

4

5

Water Pump Power

kw

1.1

1.1

1.5

1.5

Total air volume

m³/h

3500-42000

4500-52000

5500-62000

6500-72000

Air Speed

kw

3.5-4.2

3.5-4.2

3.5-4.2

3.5-4.2

Noise decibel

db

70-80

70-80

70-80

70-80

Overall dimension  (L×W×H)

mm

3000×720×2400

4000×720×2400

5000×720×2400

6000×720×2400

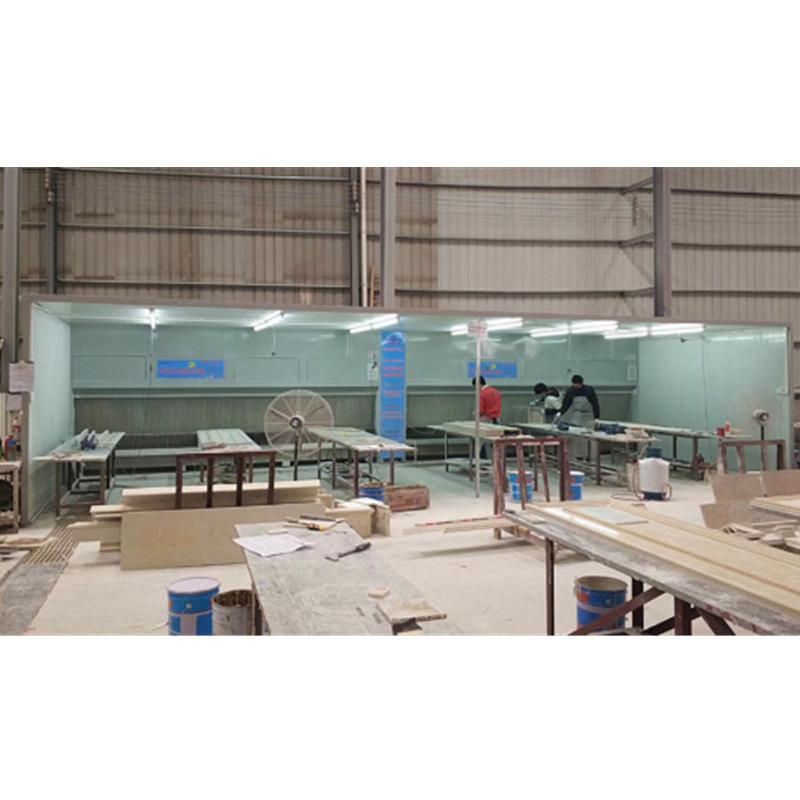

Processing
