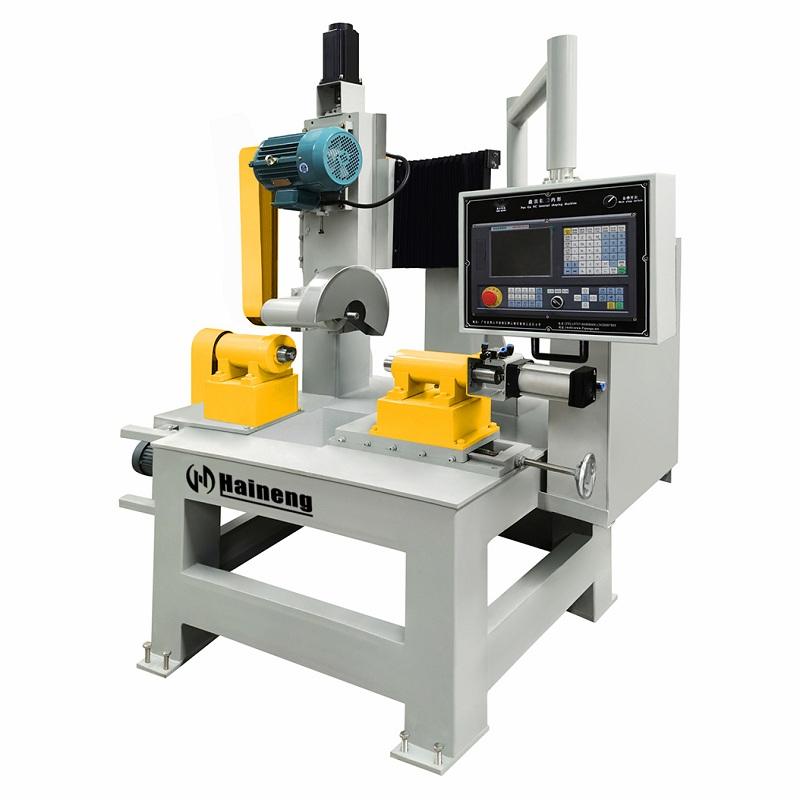

Outer Shape Profiling Machine

Outer shape machine is easy to operate, highly adaptable to the machining object, and suitable for machining products with complex shapes.
  • Brand:

    HAINENG
  • Item NO.:

    WXJ
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow
  • Shipping Port:

    xiamen Port
  • Lead Time:

    15 Days
Product Detail

Stone Profiling Shaping Machine Characteristics and Performance:

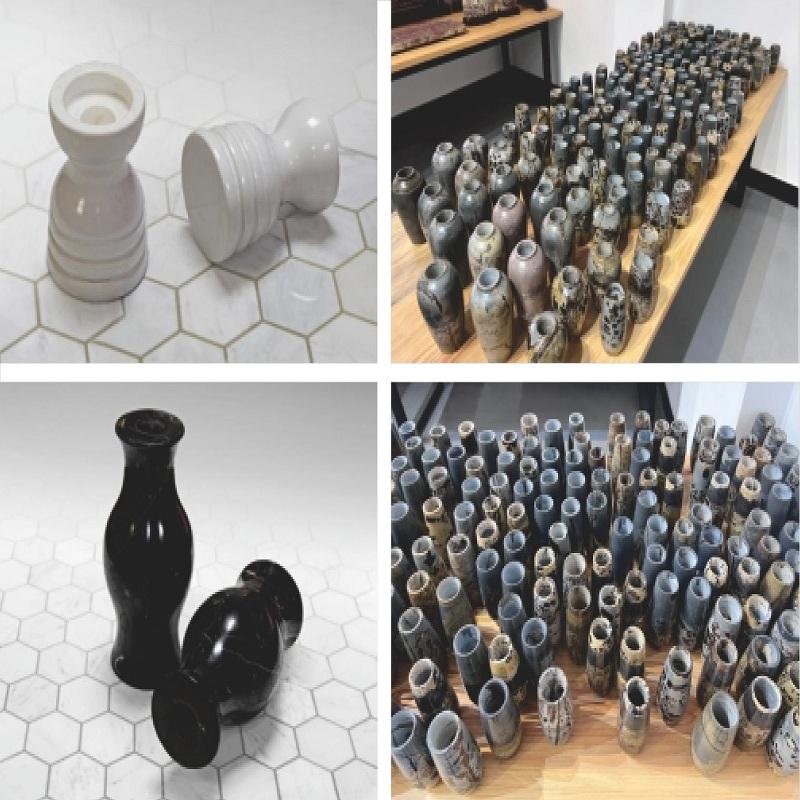

The product is widely used in the stone craft industry. Such as lamps, hotel supplies,glass crafts, various stone decorations, etc, this machine is easy to operate, convenient, and has strong adaptability to the processing objects. It can perform multi-coordinate linkage,and can process crafts with complex shapes.The machine effectively solves complex,precise, small batch and multi-variety processing difficulties. It is a flexible and high-performance automatic machine tool.It is conducive to modern production management to solve a series of headaches such as labor intensity of workers in labor-intensive enterprises and reduction of work-related injuries.



Main technical parameter

Name

Unit

WXJ-Outer Shape Profiling Machine

Max. Processing length

mm

10-450

Max. Processing diameter

mm

30-200

Main motor power

kw

4

Travel motor


2pieces×1kw

Drive motor

kw

0.75

Total power

kw

7.5

Dimension size

mm

2500×1000×1500
