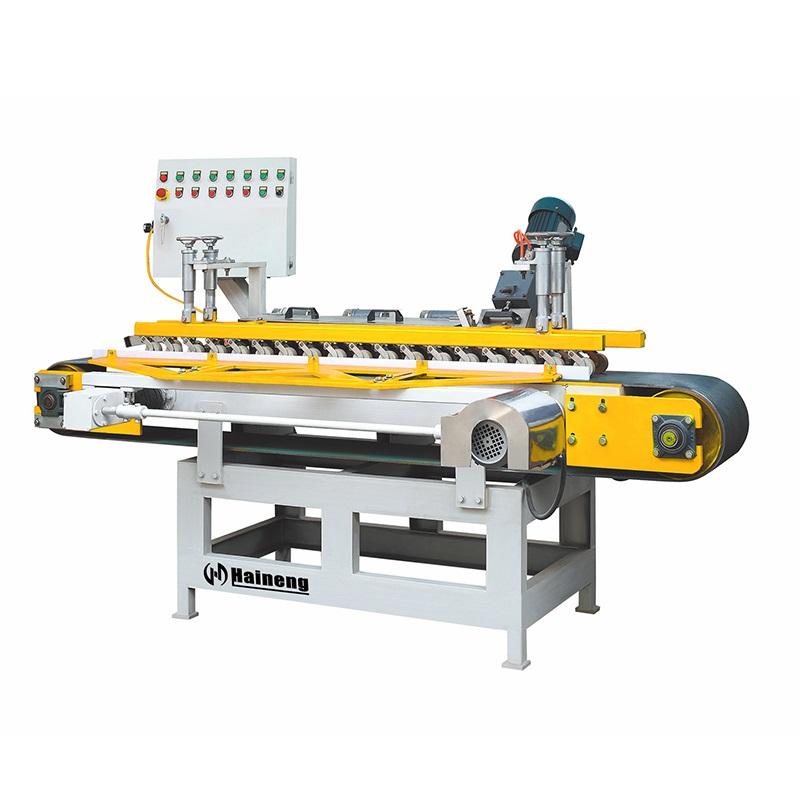

Single-Side Grinding and Chamfer Machine

It is mainly used for edge polishing for stone, ceramic, glasses, micro-crystal(Straight edge/Original edge)
  • Item NO.:

    DMDJ3+1/DMDJ4+1/DMDJ5+1/DMDJ6+1
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    15 Days
Product Detail

Single-Side Grinding and Chamfer Machine

The characteristics and performance:

The single-edge grinding and chamfering machine is a highly efficient piece of equipment specifically designed for processing hard materials such as ceramics, stone, and microcrystalline stone. This single-edge grinding and chamfering machine is primarily used for precise edge grinding and chamfering of various types of panels, making it especially suitable for processing straight edges and factory edges. Whether in the architectural decoration industry or industrial production, this single-edge grinding and chamfering machine demonstrates excellent performance and stable operational efficiency.


The single-edge grinding and chamfering machine adopts advanced grinding technology, achieving high-efficiency production while maintaining high precision. Its robust body structure and wear-resistant components ensure the equipment's stability and reliability during long-term operation. Additionally, the single-edge grinding and chamfering machine is equipped with an intelligent control system, making operation simpler and increasing automation, thereby reducing manual errors and labor costs.

The design of the equipment takes into account the processing needs of materials with different sizes and thicknesses, offering strong adaptability. By adjusting relevant parameters, users can easily achieve customized edge processing for different materials, meeting various specific technical requirements. This machine not only enhances the processing quality of products but also significantly extends the lifespan of materials and reduces defect rates.



Main technical parameter:

Type

Unit

DMDJ3+1

DMDJ4+1

DMDJ5+1

DMDJ6+1

Quantity of grinding head

pcs

3

4

5

6

Diameter of grinding wheel

mm

200

200

200/250

250

Quantity of chamfer grinding head

pcs

1

1

1

1

Diameter of chamfer wheel

mm

120

120

120

120

Width of conveyor belt

mm

300

300

300

300

Speed of conveyor belt

M/min

1-8

1-9

1-10

1-13

Processing width

mm

100-800

100-1000

100-1000

100-1000

Total power

kw

12.35

15.35

18.35

21.35

Dimension size

m

2.5×1.6×1.5

2.8×1.6×1.5

3.3×1.6×1.5

3.8×1.6×1.5

Total weight(About)

kg

900

1200

1600

2100

single-edge grinding and chamfering machine
