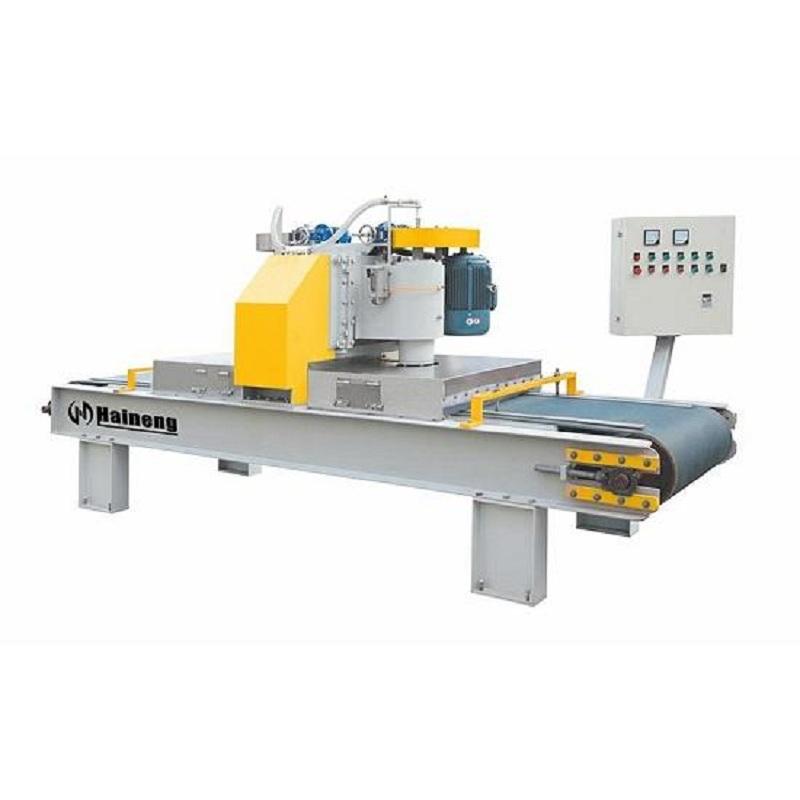

Two Heads Stone Calibration Machine

The two heads stone calibration machine features a sleek, stable design with a gun barrel grinding head and gantry motor structure, ensuring low noise and vibration while effectively reducing material breakage and enhancing calibration precision.

Item NO.:
STDH-400/STDH-600/STDH-800/STDH-1000
Order(MOQ):
1
Payment:
T/T
Shipping Port:
Xiamen Port
Lead Time：
15 Days

Sink hole drilling machine

Technical parameters Product name Stone Plate Drilling Machine Brand Haineng Machine material Reinforced aluminum machine body Dust removal method Automatic sprinkler Motor Power 3.5KW Rotating speed 0-18000 RPM Maximum hole size 800x550mm Total length 1350mm Maximum opening thickness 30mm Voltage 220V Features Opening、Edging、Counter Basin Loading

Stone Bottom Trimming Machine

Since the machine came into being,it has completely turned the bottom of the stoneprocessing enterprisescrap board into treasure, greatly reduced the production cost ofthestone processing enterprises,and improved thebenefit.

Granite Automatic Flaming Machine

Moved by chain and moving wheel, the stone is conveyed to the flaming area of the high-speed automatic,With characteristic of high automation, easy operation, even flaming surface, low energy cost, and high efficiency, the machine can be used to process 240 sqm/hour, which can save the labor intensity dramatically.

Automatic Stone Drilling Machine

It is mainly used for deep hole processing of stone tablet, stone strip, lantern, handicraft, etc.

High Pressure Water Filter Press

Suitable for sand washing and sewage treatment, stone processing and sewage treatment, ceramic kaolin and porcelain clay pressing, mine tailings treatment, factory sewage treatment and other industries.

Stone Block Turnover Machine

Overturn steady , high efficiency, 3 minutes when turning at 90 degrees The primary of the machine is to have large blocks overturn angle, instead of manually using the lever to reduce the labor of workers and improve labor productivity.

Stone Large Slab Scanner machine

A stone slab scanner is a device used to scan, measure and digitize stone slabs. These devices are commonly used in the stone processing and construction industries to ensure the accuracy and quality of marble, granite and other stone slabs.

Five-axis CNC Water Flow Ceramic Stone Universal Cutting Machine

The computer of the Five-axis CNC Stone Cutting Machine will calculate the density and thickness of the workpiece material to be cut in real time, and control the cutting head to run along the cutting path to achieve three-dimensional complex-shaped workpiece cutting.

Type	Unit	STDH-400	STDH-600	STDH-800	STDH-1000
Spindle Heads	piece	2	2	2	2
Width of Conveyor Belt	mm	450	650	850	1050
Grinding diameter	mm	450	650	850	1050
Max. Processing Width	mm	400 Below	600 Below	800 Below	1000 Below
Max. Processing Thickness	mm	50 Below	50 Below	50 Below	50 Below
Spindle Power	mm	11kw×2	15kw×2	18.5kw×2	18.5kw×2
Belt Motor Power	mm	1.5	1.5	1.5	1.5
Total power	kw	24.6	37.6	39.6	39.6
Total Weight(About)	kg	2300	2800	3500	4500
Dimension size	m	3.4×1.8×2	4.4×2×2	4.8×2.2×2	5.2×2.4×2
