China 5 Axis Heavty-duty Mono Block Marble Stone Bridge Saw manufacturer,5 Axis Heavty-duty Mono Block Marble Stone Bridge Saw factory

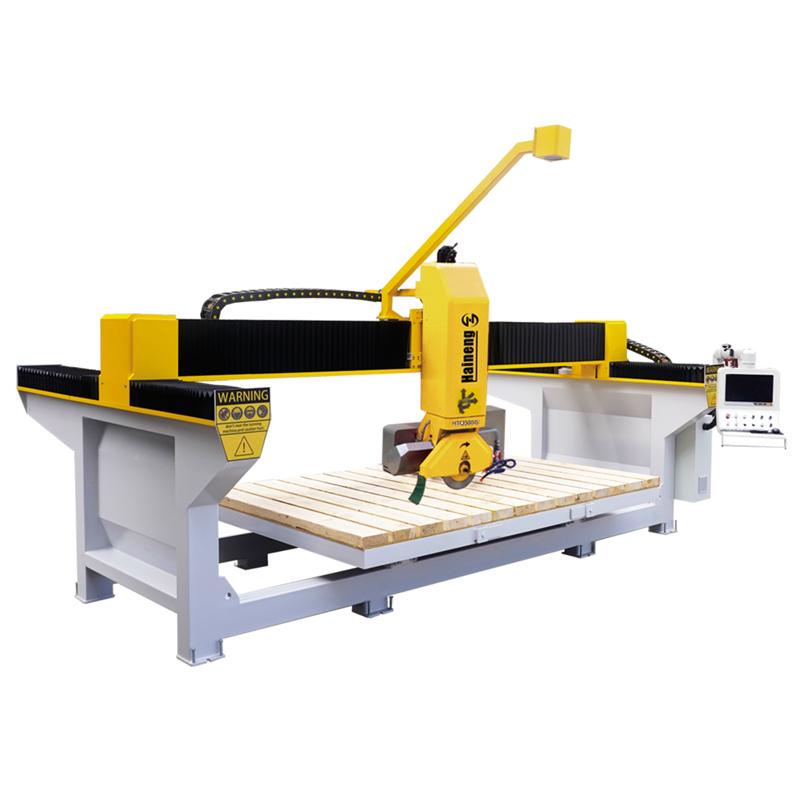

5 Axis Heavty-duty Mono Block Marble Stone Bridge Saw

This 5 axis bridge saw are suitable for slab, tile, marble, artificial stone, granite, cement products and other building materials of special-shaped edge or multi-function cutting, is the most suitable for special-shaped cutting factory deep processing equipment.

Item NO.:
HTQ500GL-1
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
15 days

350 Monoblock Bridge Sawing Machine

This machine is especially suitable for home decoration factory to cut stone slab, artificial stone, marble, granite and other home decoration materials.

500 Monoblock Bridge Saw

Cast iron bridge/W V Conical guide ways X axis THK style high precision rollers Y axis Full oil bath with dust covers The 24HP motor can handle up to an 24" blade. Heavy duty rigid construction Power Rotating head on saw Table size 10'.5"x 6'7" Has Wireless Remote That Controls Saw And Table Functions Computer readout digital touch control Mitsubishi drive controllers AC Inverter Duty motors for all 3 Axis Easy To Use Programmable Cut Digital Touch Screen Read Out Amp Gauge for determining proper cutting speed Laser guide Large work envelope

625 Mitre Cut Bridge Saw

It designed to cut granite, marble, quartz and other natural and engineered stones, Blade tilt 45° automatically for mitre cut. Cast iron bridge V-Conical oil bath guide ways X axis Oil bath THK style high precision rollers Y axis Full oil bath with dust bellow covers The 24HP 50mm Arbor motor can handle up to a 36" blade." Z Travel is 18" Heavy duty rigid construction Super heavy duty steel legs included Rotating tilt table locks in any position with hard stops at 0, 45, 90,degree and 135 degree position, Innovative variable degree table locking system. Table size 10'.5"x 6'7" Has wireless remote that controls saw and table functions Hydraulic plunge miter Computer readout digital touch control Mitsubishi drive controllers AC Inverter duty motors for all 3 Axis Easy to sse programmable cut Digital touch screen read out Laser guide

Miter Stone Bridge Saw

Cast iron bridge Special tilting head with top motor V-conical oil bath guide ways X axis Oil bath THK style high precision rollers Y axis Full oil bath with dust bellow covers The 30HP 50mm Arbor motor can handle up to a 32" blade Heavy duty rigid construction Super heavy duty steel legs included Rotating tilt table locks in any position with hard stops at 0, 45, 90,degree and 135 degree position innovative variable degree table locking system. Table size 126"*79" Has wireless remote that controls saw and table functions Hydraulic Plunge Miter, Computer readout digital touch control Mitsubishi drive controllers AC inverter duty motors for all 3 Axis Easy to use programmable cut Digital touch screen read out

Infrared Bridge Stone Cutting Machine

Optional with 360-degree rotation for automatic positioning with every 45 degrees, mainly used for cutting rectangles, octagons, arcs, and circles.

Middle Block Stone Bridge Saw

It can be used for border stone, gravestone, gravestone and other process-like rectangular thick materials and polygon thick materials(table rotation 0-45-90 degree is optional), especially suitable for high value, high precision and high efficiency demand users.

Bridge Double Directions Block Cutting Machine

This machine has the advantages of high cutting efficiency, high splicing precision, good flatness, high stability, simple operation and so on, especially suitable for high-value granite. The cutting of raw marble.

Multi-Blade Bridge Stone Cutting Machine

The machine has fine processing, stable performance, high automatic production efficiency, convenient installation, operation and maintenance, and meets the development demand of international stone processing.

Type	Unit	HTQ500GL-1
Mode of control		CNC
Programming Method 2		CAD
Main motor power	kw	18.5
Speed		0-4500
Stroke of X axis	mm	2100
Stroke of Y axis	mm	3500
Z axis stroke	mm	500
Stroke of axis C	n	0-360
Stroke of axis A	n	0-90
Maximum tilt angle of workbench	n	0-85
Size of work table	mm	3200×2000
Total power	kw	33
Gross weight machine	kg	5000
Installation dimension	mm	5800×3200×3800
