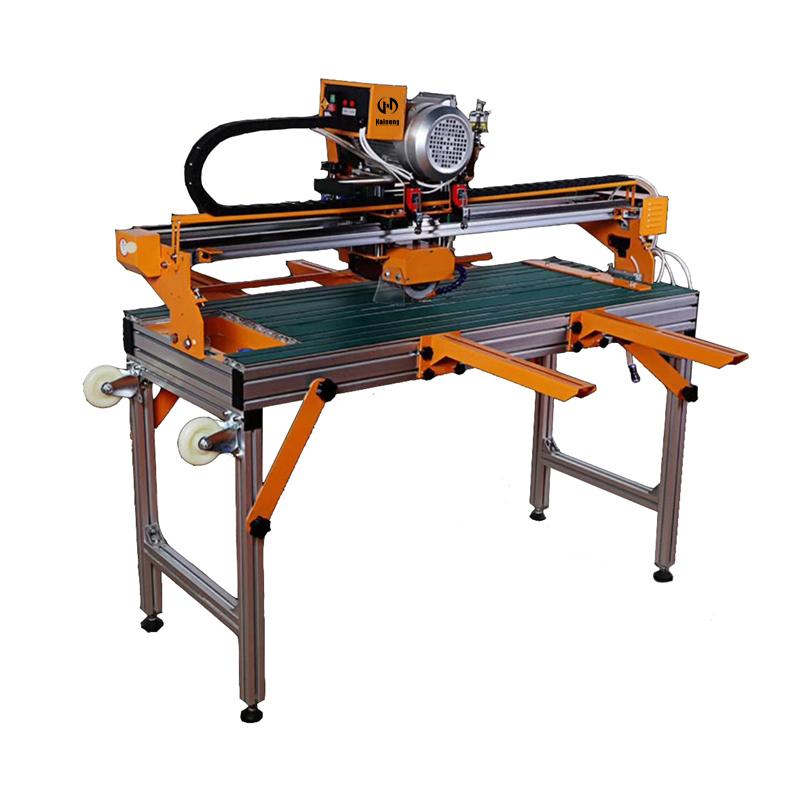

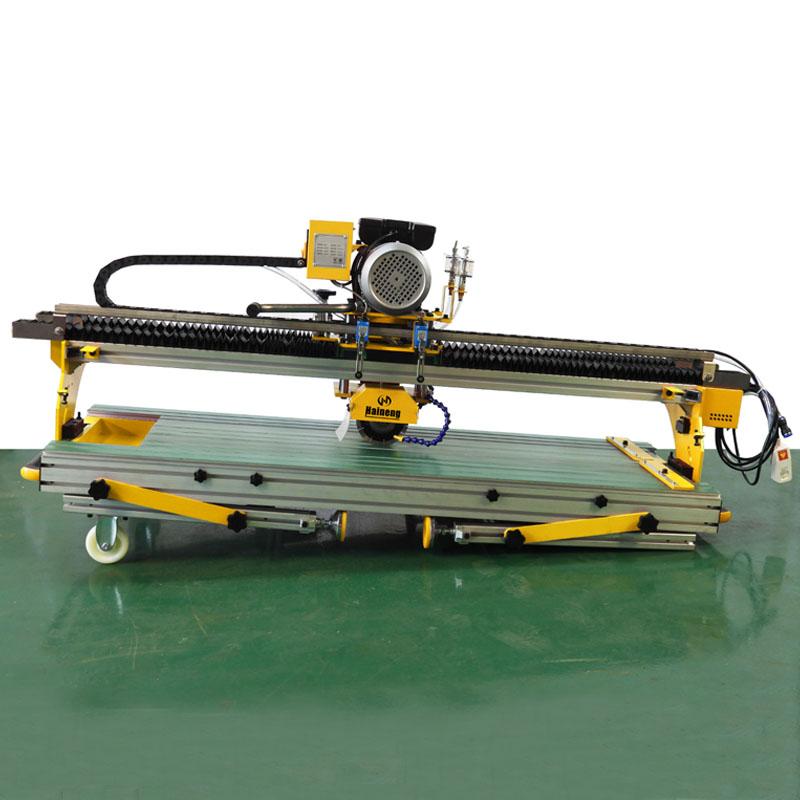

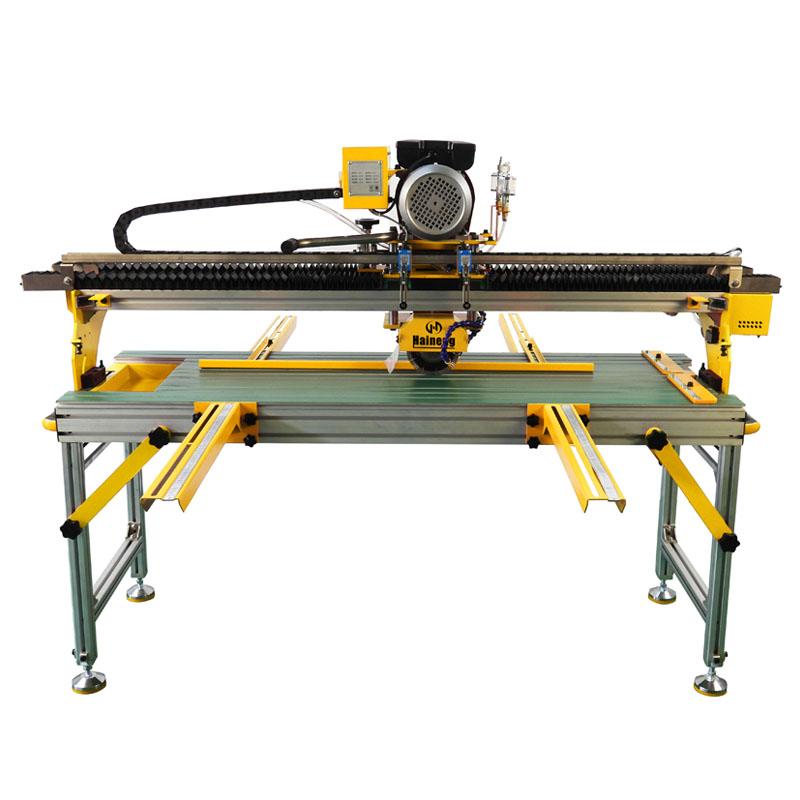

Full-Automatic Multifunctional Tile And Stone Cutting Machine

Full-Automatic Multifunctional Tile (Stone) Cutting Machine offers precision and efficiency for cutting various tiles and stones. Its fully automated operation reduces labor costs while ensuring high-quality cuts.

  • Item NO.:

    BQD-1200
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    15 days
Product Detail

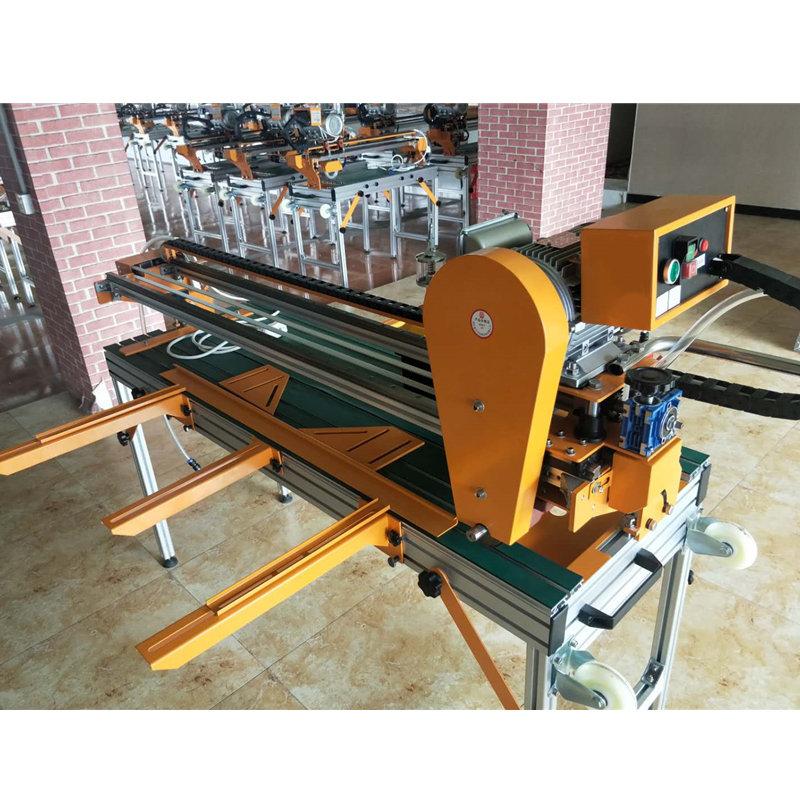

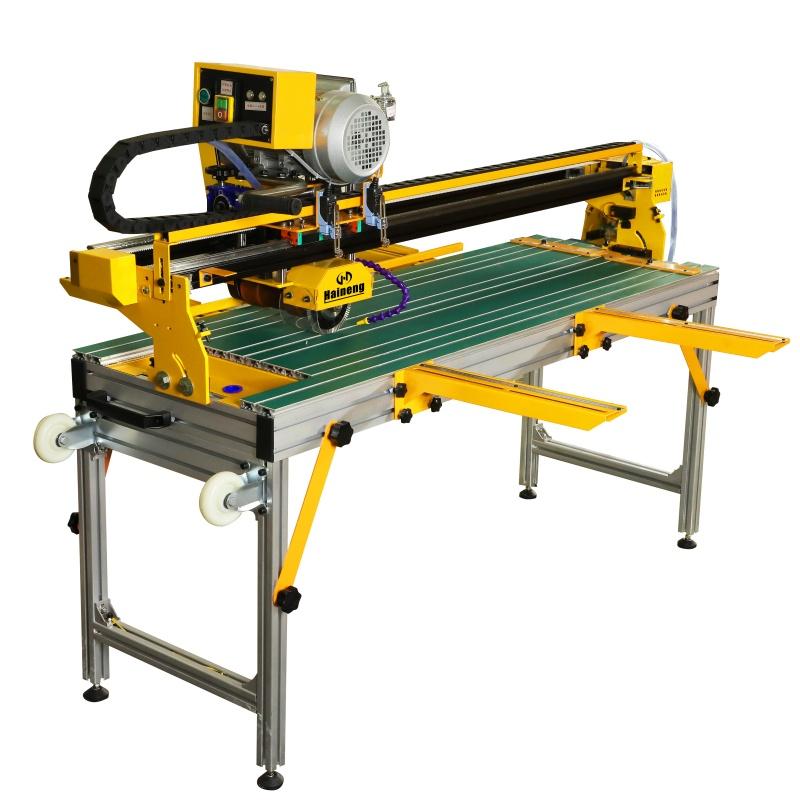

 Full-Automatic Multifunctional Tile And Stone Cutting Machine

Product Description

Convenient full-automatic multifunctional tile and stone cutting machine can cut, chamfer the bottom angle, grind 45 degree V-shaped edge, pull the mosaic, open the ladder step slot and other functions. One machine can be used continuously for high efficiency. A good helper for construction sites, tile warehouses, stone processing plants and tile processing plants. 2200 watt pure copper brushless motor, stable use of belt drive, can cut large batches for long with square track, accurate cutting, stable and durable.


Advantages

1. Full Automation: Reduces manual intervention, enhancing efficiency and minimizing labor costs while ensuring consistent quality.
2. Versatile Cutting Capabilities: Capable of cutting various materials, including different types of tiles and stones, catering to diverse project needs.
3. High Precision: Advanced technology ensures accurate cuts, resulting in clean edges and minimizing waste, which enhances overall productivity.
4. User-Friendly Interface: Designed with an intuitive control panel that simplifies operation, making it accessible for both experienced and novice users.
5. Durable Construction: Built with high-quality materials for long-lasting performance, ensuring reliability and reducing maintenance costs over time.


Technical Data


Convenient full-automatic multifunctional tile (stone) cutting machine
Type
unit
BQD-1200
Rated voltage
V
220
Rated frequency
Hz
50
Rated power
w
2200
Rated speed
r/min
7200
Blade diameter
mm
130
Grinding wheel diameter
mm
120
Cutting depth
mm
-30
Cutting length
mm
1200

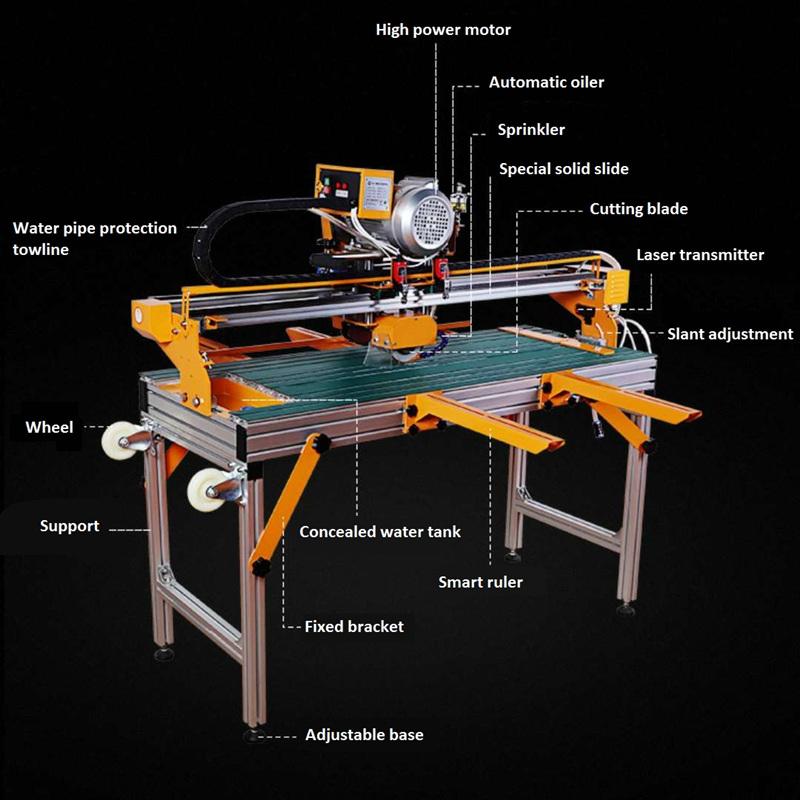

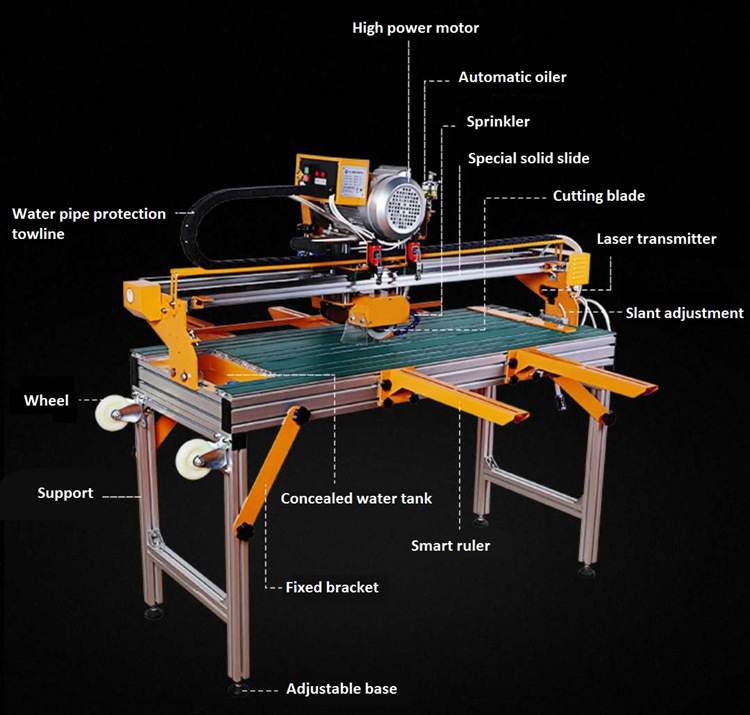

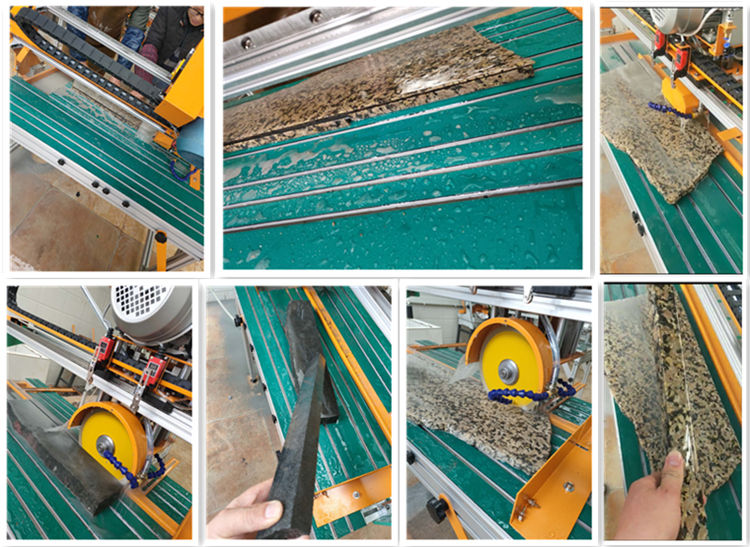

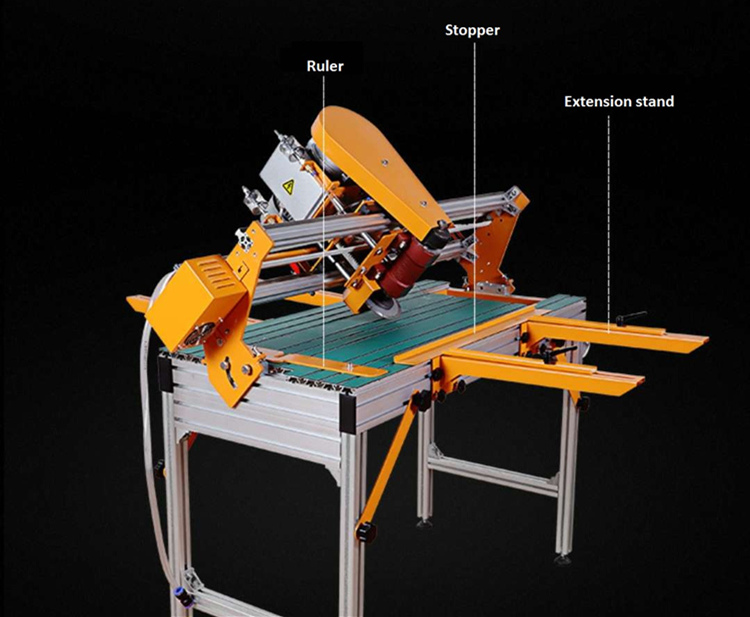

Parts Name

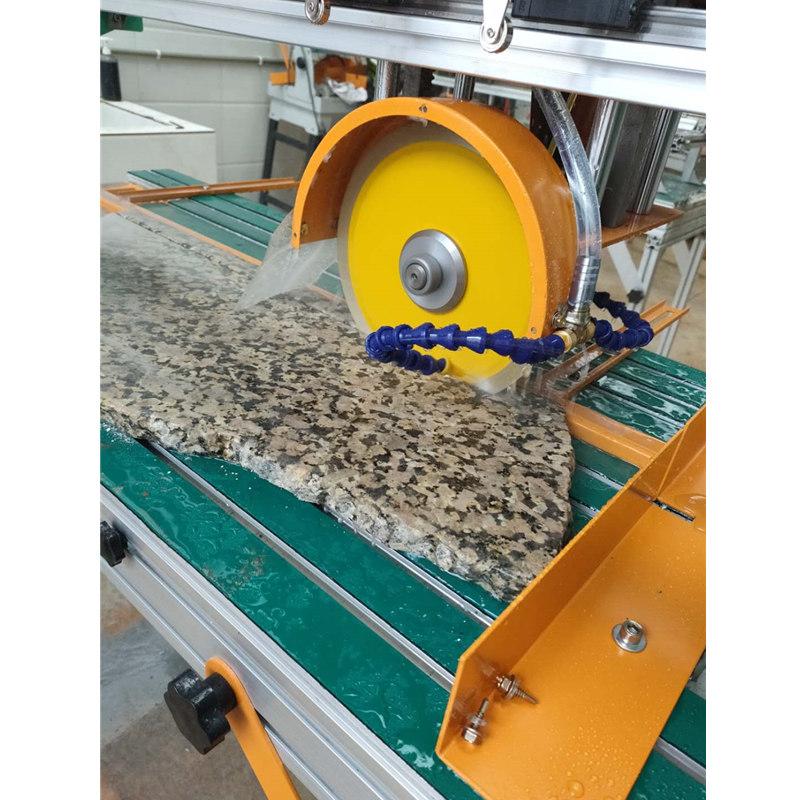

Processing
