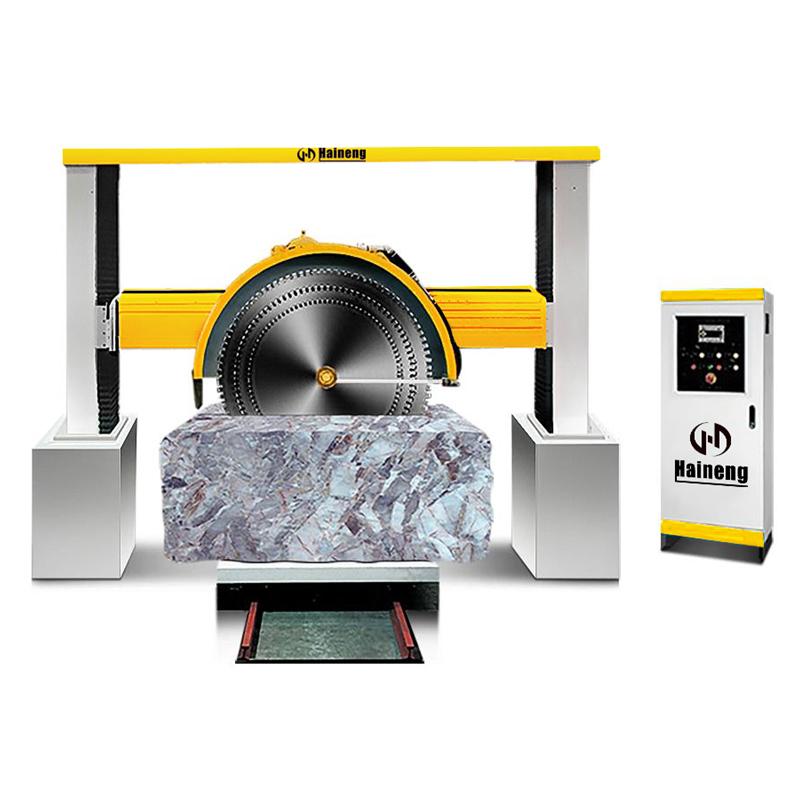

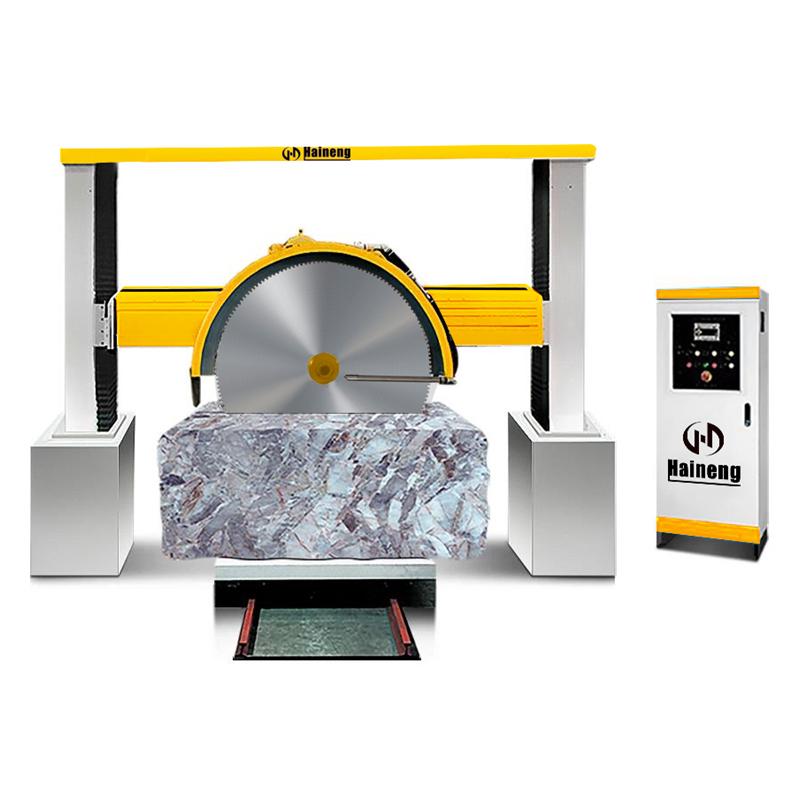

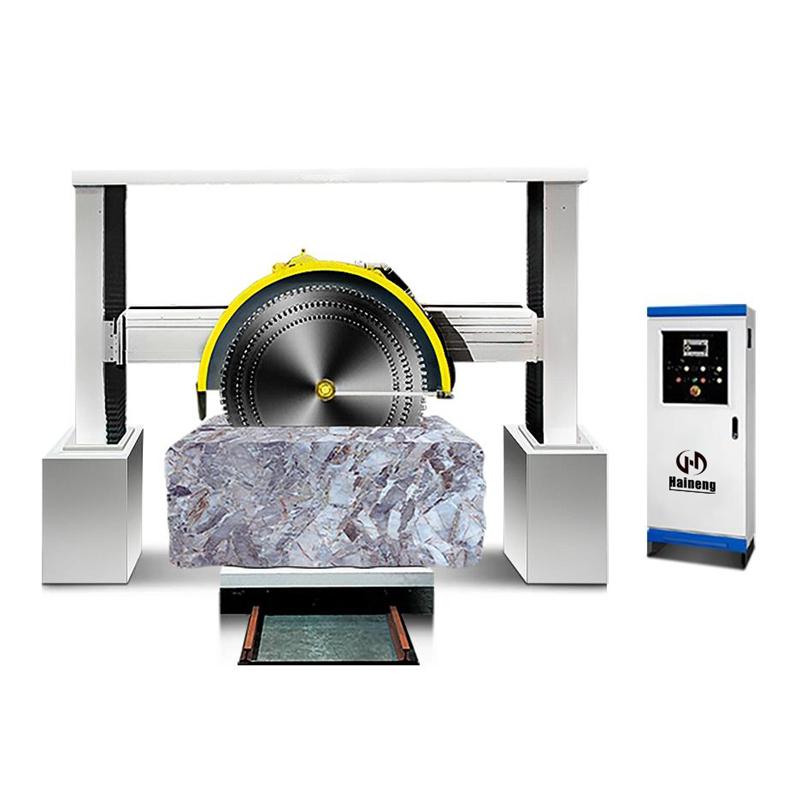

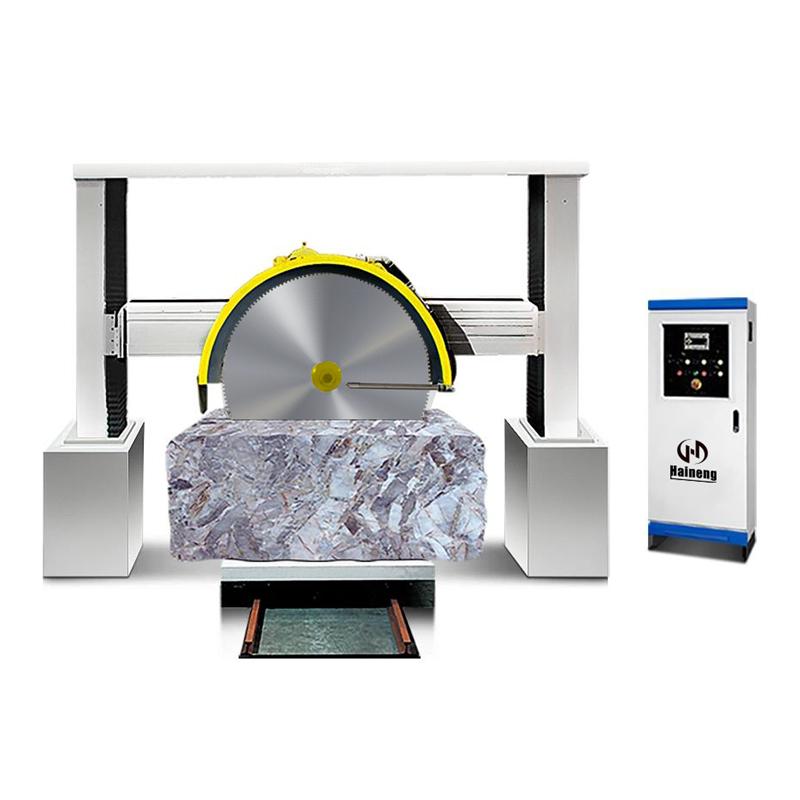

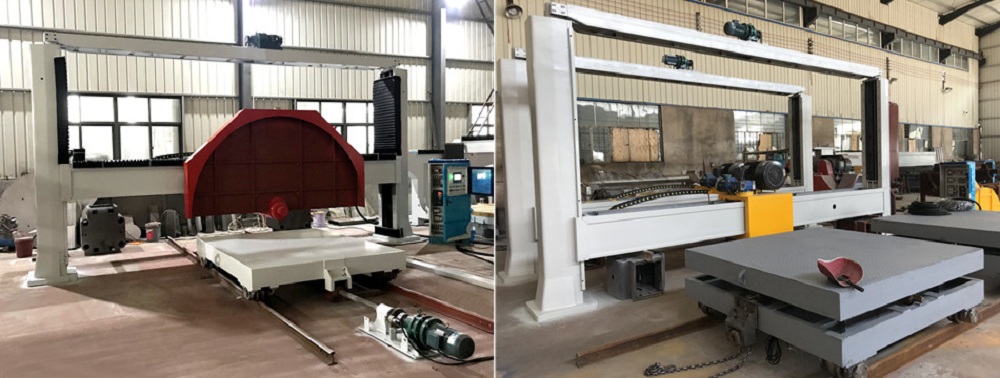

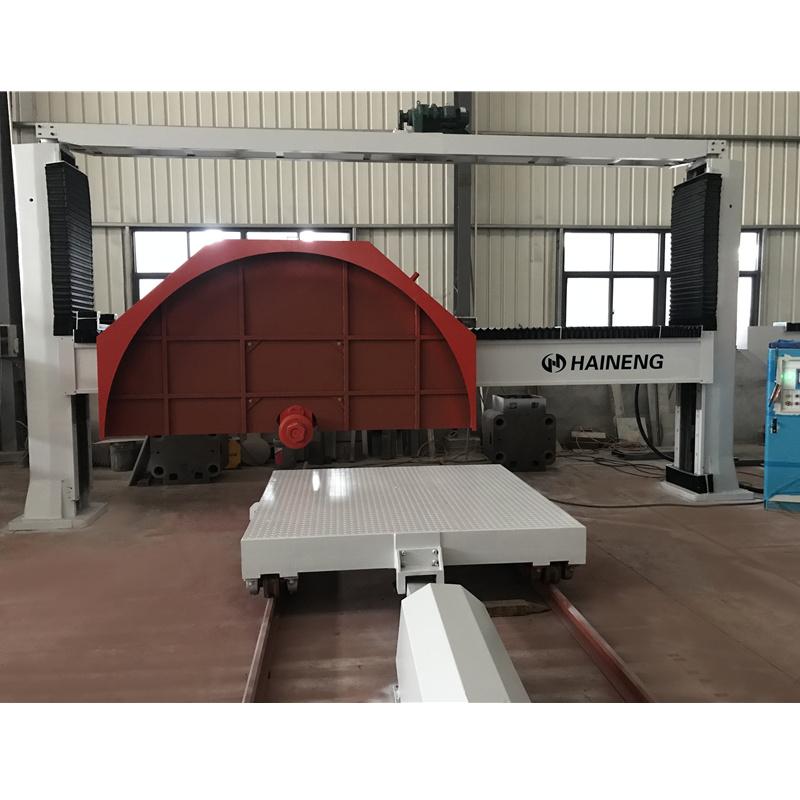

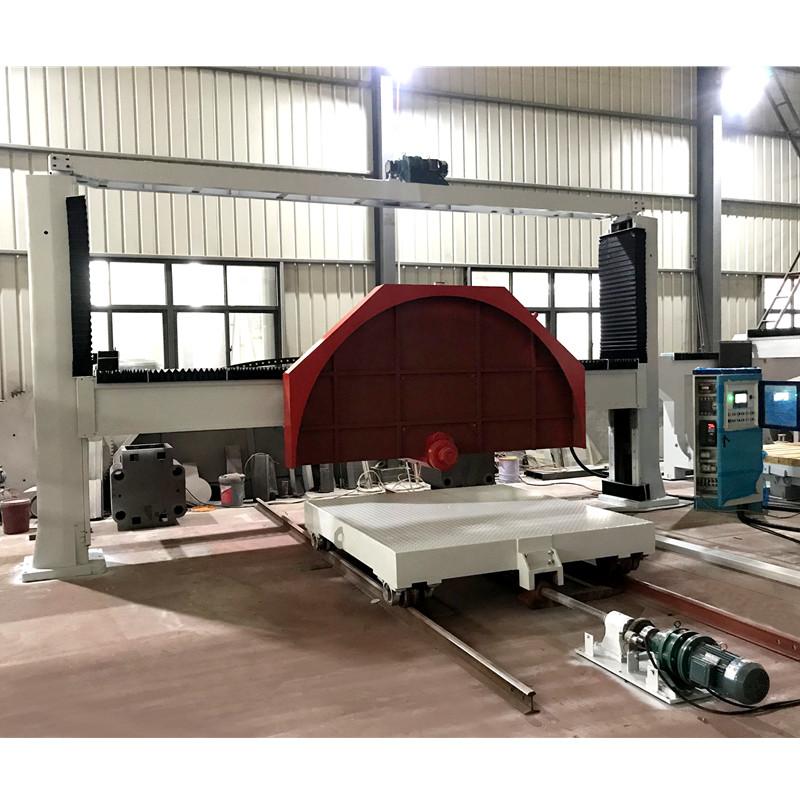

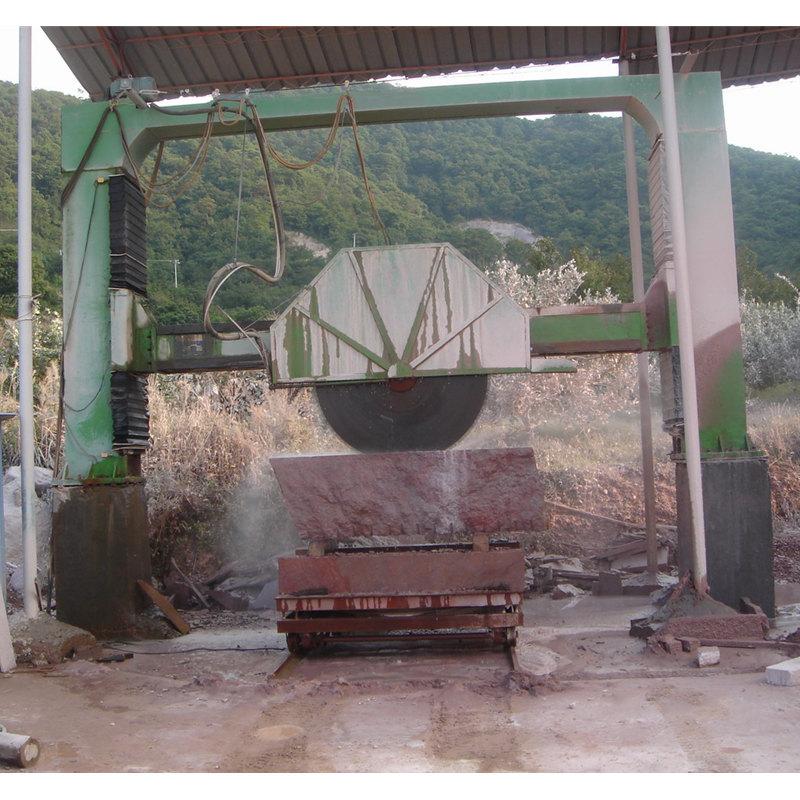

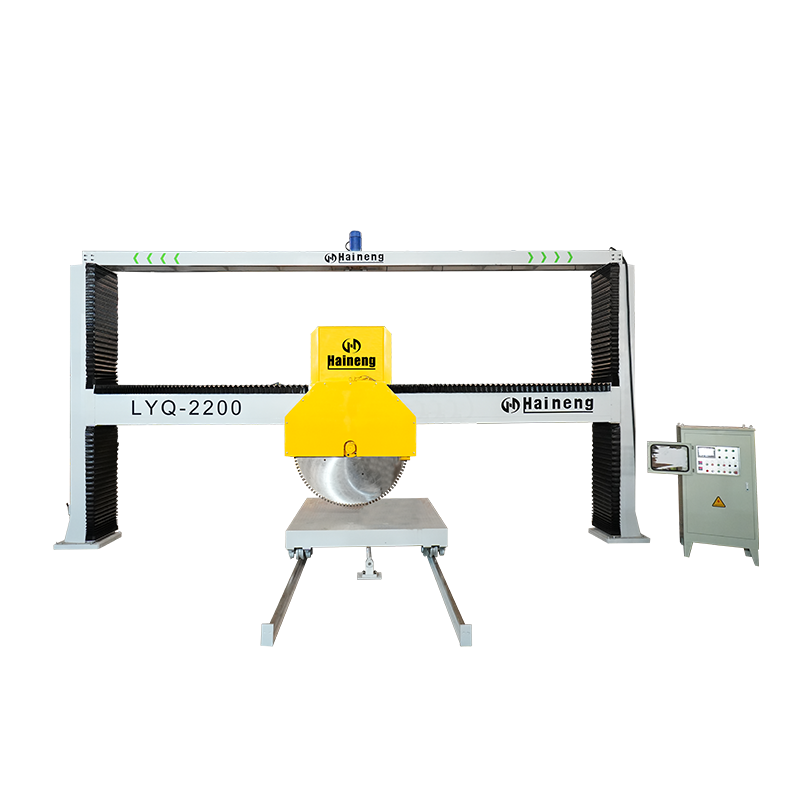

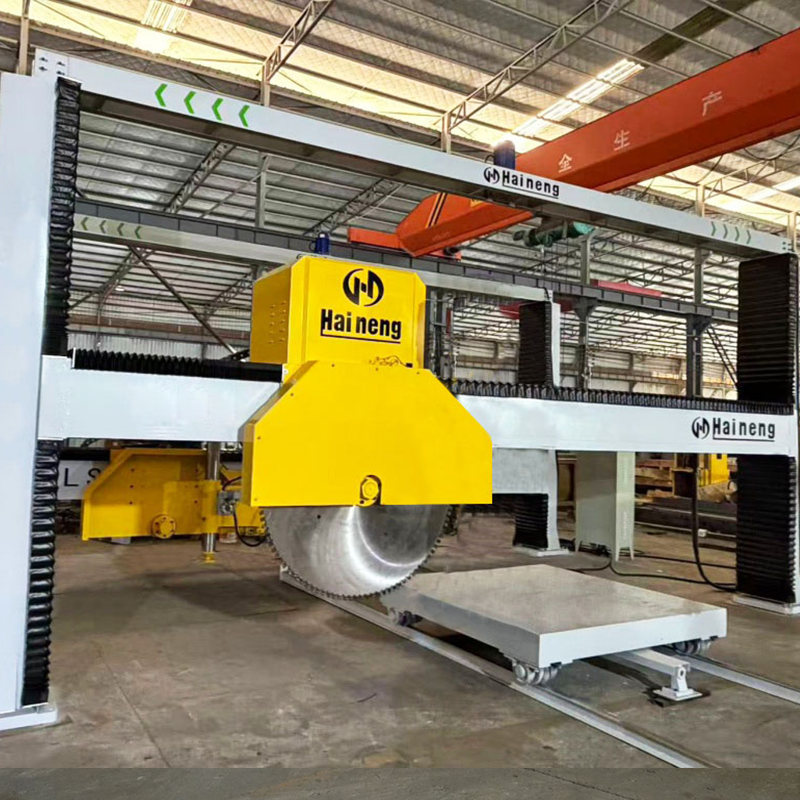

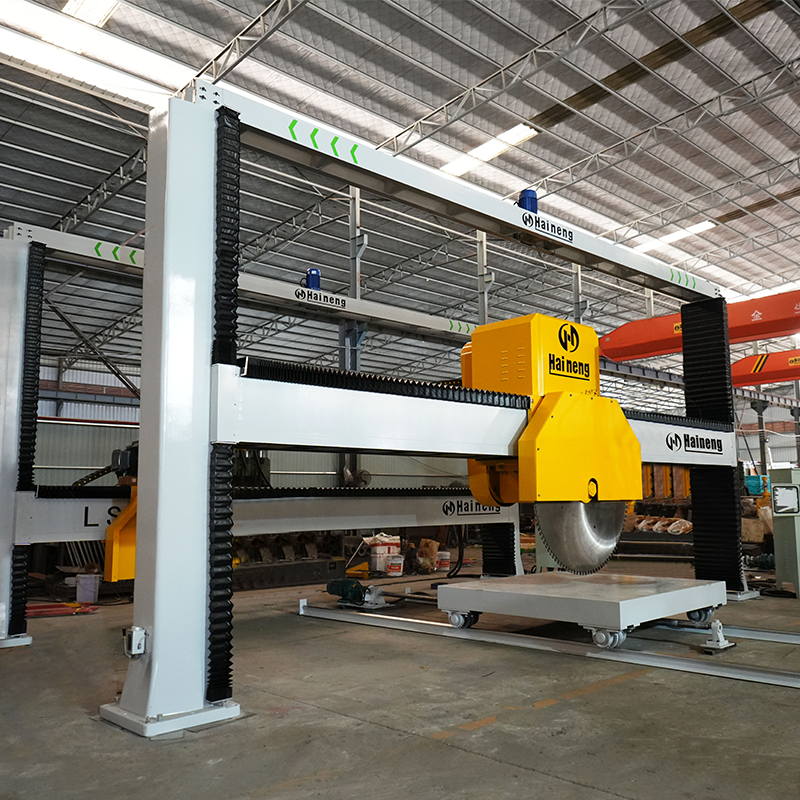

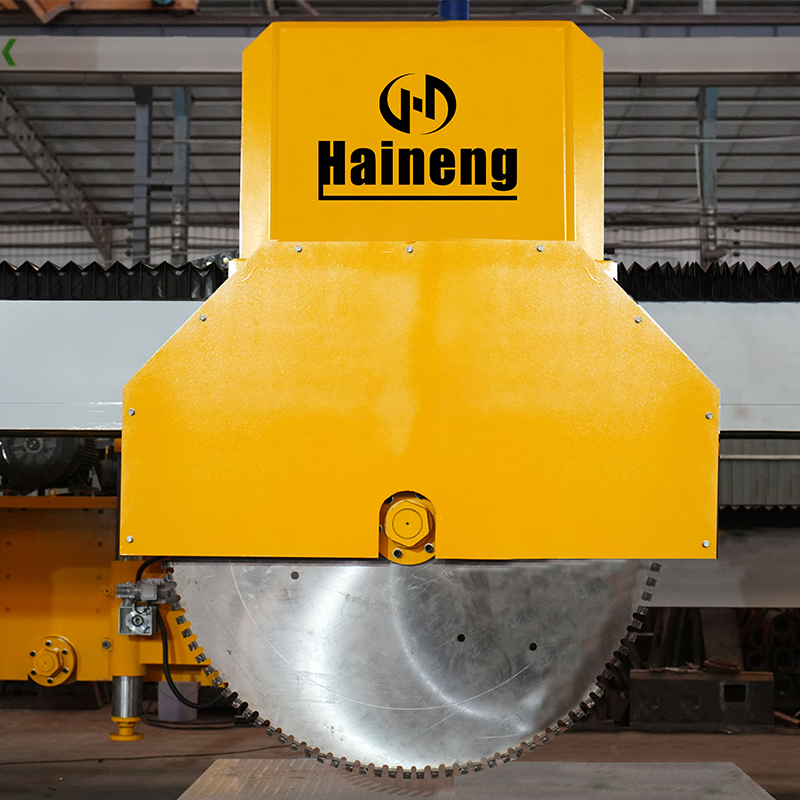

LYQ-2200 2500 3000 Gantry Quarry Stone Block Cutter

Gantry Stone Block Cutters are high-performance machines designed for precise and efficient stone cutting. With robust construction, advanced automation, and customizable cutting sizes, these cutters deliver superior cutting accuracy, enhanced productivity, and long-lasting durability.

Brand:
HAINENG
Item NO.:
LYQ-2000/LYQ-2500/LYQ-3000
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
20 days

Single Column Stone Cutting Machine

This machine is a special machine tool for cutting curb stones and strip stones. The cutting length can be customized according to the needs of users, which makes up for the processing defects on the length of the gantry stone cutting machine. The saw blade moves in and out, lifts and lowers electrically, the feed of the worktable is adjusted by the frequency converter, and the stone is automatically cut horizontally, with high work efficiency.

Bridge Single Blade Stone Cutting Machine

The bridge type single blade saw has a simple and reasonable structure and high stability. It adopts hydraulic sliding plate to lift, which has the characteristics of fast lifting speed, anti-wear, not easy to deform, and easy to maintain.

SMT High Efficiency Multi-Saw Stone Cutter

The machine has a high degree of automation, stable overall processing performance, high efficiency and low consumption. It is the most ideal stone machine for cutting strip stones, curb stones and monument stones.

Multi-Blade Hydraulic Stone Cutting Machine

This machine is optimized and improved on the basis of the combined saw. The machine adopts a four-column hydraulic locking structure, which has good overall rigidity and small clearance, which is conducive to reducing the shaking during the cutting stone, and the produced slabs have high precision. , the flatness is good. At the same time, it has achieved remarkable results in improving the service life of the segments and reducing power consumption.

SLQ600/800 Hand Stone Cutting Machine for Tombstone

This machine can be used for cutting large stone carvings, brick carvings, inkstones, tombstones, floor stones, etc.

ANYTH Double Blades Cutter

Double Blades Cutter adopts a portal double column structure, oil-immersed track, horizontal electric variable frequency cutting, electric lifting, double saw blades, and an optional conveyor belt workbench, making it the best choice for stone cutting.

XQJ-600 Portable Marble Slabs Stone Cutting Table Saw Machine

XQJ-600 is a stone cutting table saw machine suitable for cutting stone, ceramic tile, brick, concrete and wood etc.

Granite Multi-Saw Blade Cutting Machine

Our cutting machine can load 20-28 saw blades longitudinally. With high processing efficiency and good precision, it is an ideal granite processing equipment.

Model		LYQ-2000	LYQ-2500	LYQ-3000
Max.blade diameter	mm	2200	2500	3000
Max.No.of blades	pc	3	1	1
Recommended blade combination	mm	2200,1600,940	2500	3000
Recommended thickness of blade	mm	6.5	6.5	8
Linear speed	M/s	37.75	36.75	36.75
Feeding speed	Mm/min	0-5350	0-5350	0-5350
Vertical feeding speed	Mm/min	590	590	590
Trolley feeding speed	Mm/min	200	200	200
Main motor power	kw	30	30	37
Table dimensions(LxH)	mm	2000x2000	2000x2000	2000x2000
Max.cutting size(LxWxH)	mm	3000x2000x950	3000x2000x1100	3400x2000x1350
Overall dimensions(LxWxH)	mm	6600x6000x4800	6600x6000x4800	7000x4700x6000
Water consumption	M3/h	6	6	10
Approximate weight	kg	9000	9000	12000
