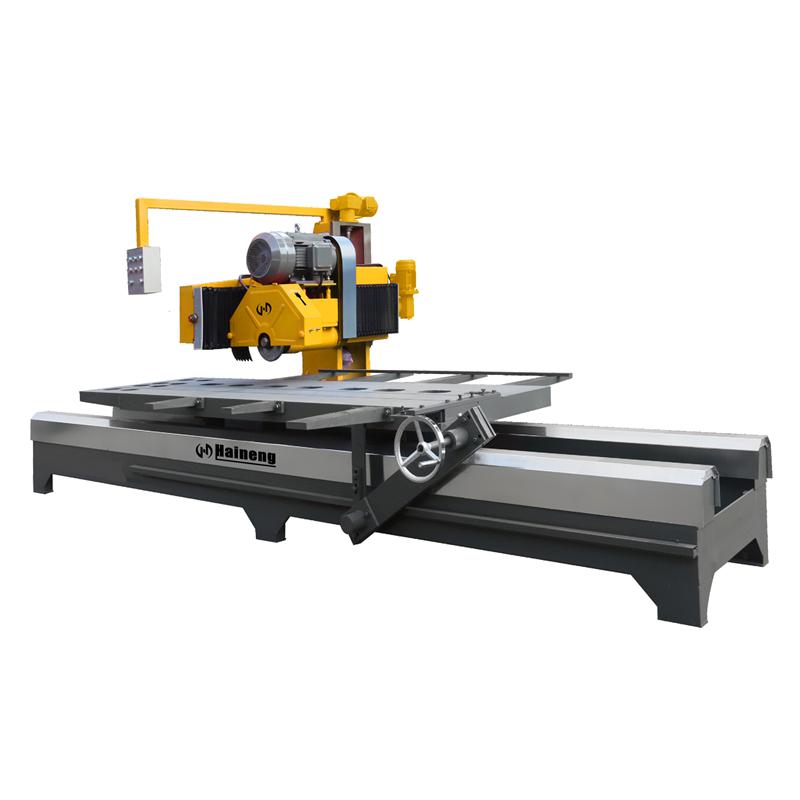

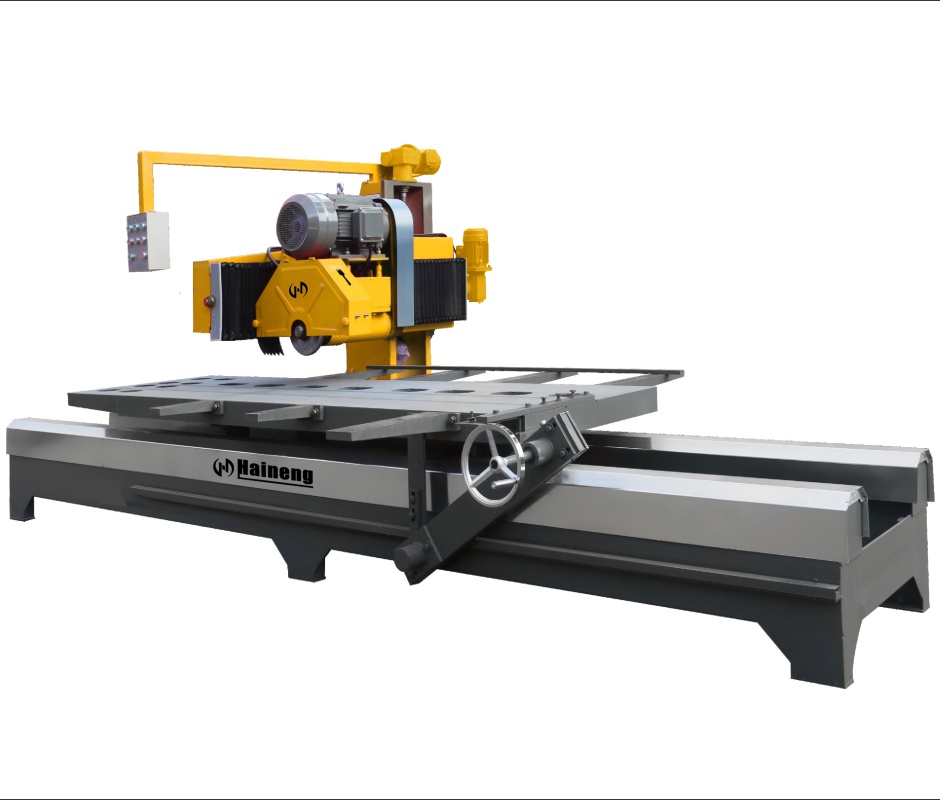

Manual Stone Slab Edge Cutting Machine

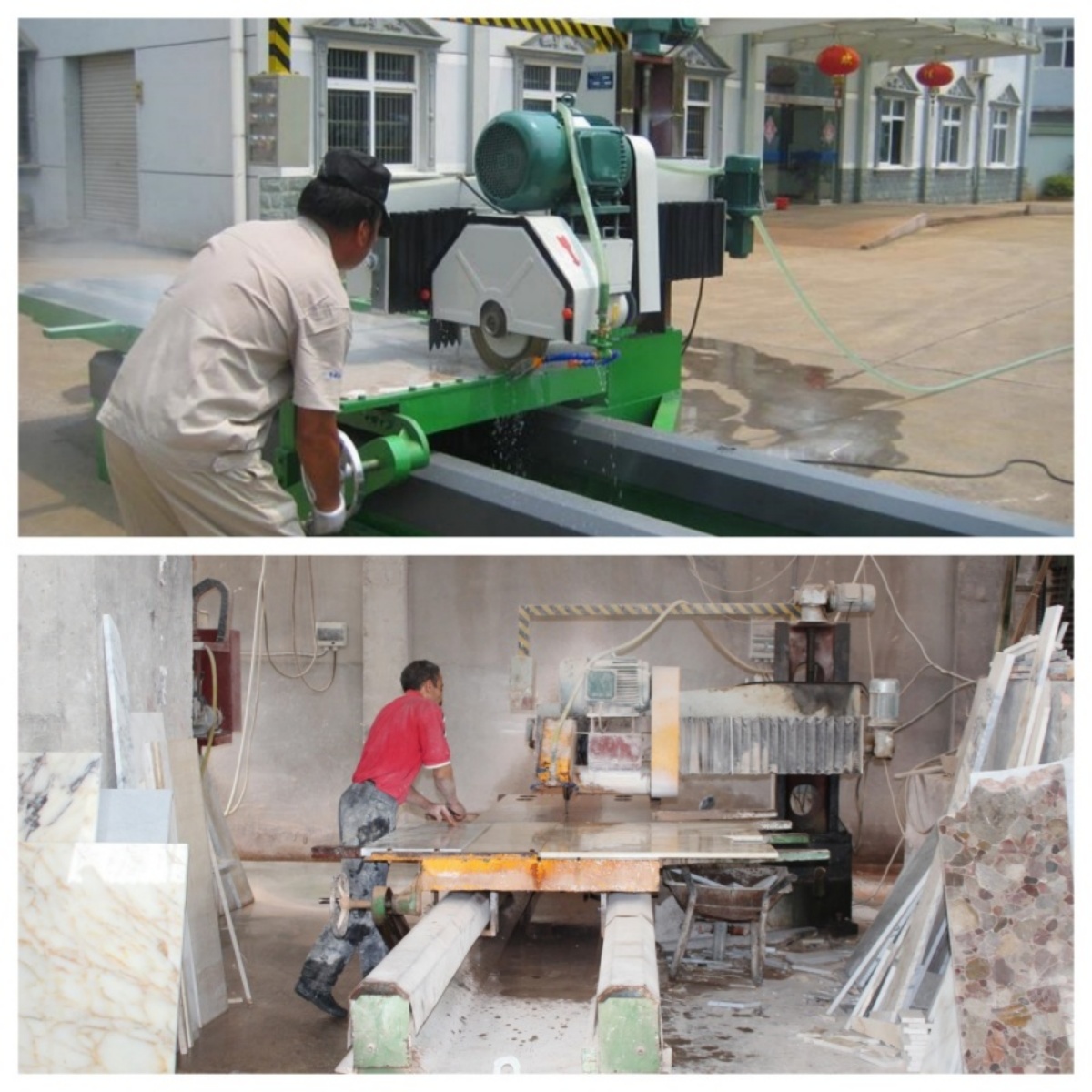

Manual marble and granite slab 45 degree beveling edge cutting machine is characterized by high

efficiency,excellent performance,easy operation,easy installation.

Brand:
HAINENG
Item NO.:
QBJ3000-5B QBJ3500-5B
Order(MOQ):
1
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
25 days

Single Column Stone Cutting Machine

This Block Cutting Machine is a special machine tool for cutting curb stones and strip stones. The cutting length can be customized according to the needs of users, which makes up for the processing defects on the length of the gantry stone cutting machine. The saw blade moves in and out, lifts and lowers electrically, the feed of the worktable is adjusted by the frequency converter, and the stone is automatically cut horizontally, with high work efficiency.

Bridge Single Blade Stone Block Cutting Machine

The bridge block cutting machine has a simple and reasonable structure and high stability. It adopts hydraulic sliding plate to lift, which has the characteristics of fast lifting speed, anti-wear, not easy to deform, and easy to maintain.

SMT High Efficiency Multi-Saw Stone Cutter

The Multi-blade stone cutter has a high degree of automation, stable overall processing performance, high efficiency and low consumption. It is the most ideal stone machine for cutting strip stones, curb stones and monument stones.

Multi-Blade Hydraulic Stone Cutting Machine

This machine is optimized and improved on the basis of the combined saw. The machine adopts a four-column hydraulic locking structure, which has good overall rigidity and small clearance, which is conducive to reducing the shaking during the cutting stone, and the produced slabs have high precision. , the flatness is good. At the same time, it has achieved remarkable results in improving the service life of the segments and reducing power consumption.

SLQ600/800 Hand Stone Cutting Machine for Tombstone

This stone cutting machine can be used for cutting large stone carvings, brick carvings, inkstones, tombstones, floor stones, etc.

ANYTH Double Blades Stone Cutter

Double Blades Stone Cutter adopts a portal double column structure, oil-immersed track, horizontal electric variable frequency cutting, electric lifting, double saw blades, and an optional conveyor belt workbench, making it the best choice for stone cutting.

XQJ-600 Portable Marble Slabs Stone Cutting Table Saw Machine

XQJ-600 is a stone cutting table saw machine suitable for cutting stone, ceramic tile, brick, concrete and wood etc.

Granite Multi-Saw Blade Cutting Machine

Our cutting machine can load 20-28 saw blades longitudinally. With high processing efficiency and good precision, it is an ideal granite processing equipment.

Machine Model		QBJ3000-5B	QBJ3500-5B
Max.cutting length	mm	3000	3500
Max.cutting width	mm	1200	1200
Max.cutting thickness	mm	150	150
Blade diameter	mm	Ø350-Ø600	Ø350-Ø600
Main motor power	kw	11	13
Gross power	kw	11.75	13.75
Exhausted water	m³/h	2	2.2
Gross weight	kg	1950	1950
Overall dimensions(L×W×H)	mm	4860×2500×2100	5400×2550×2200
