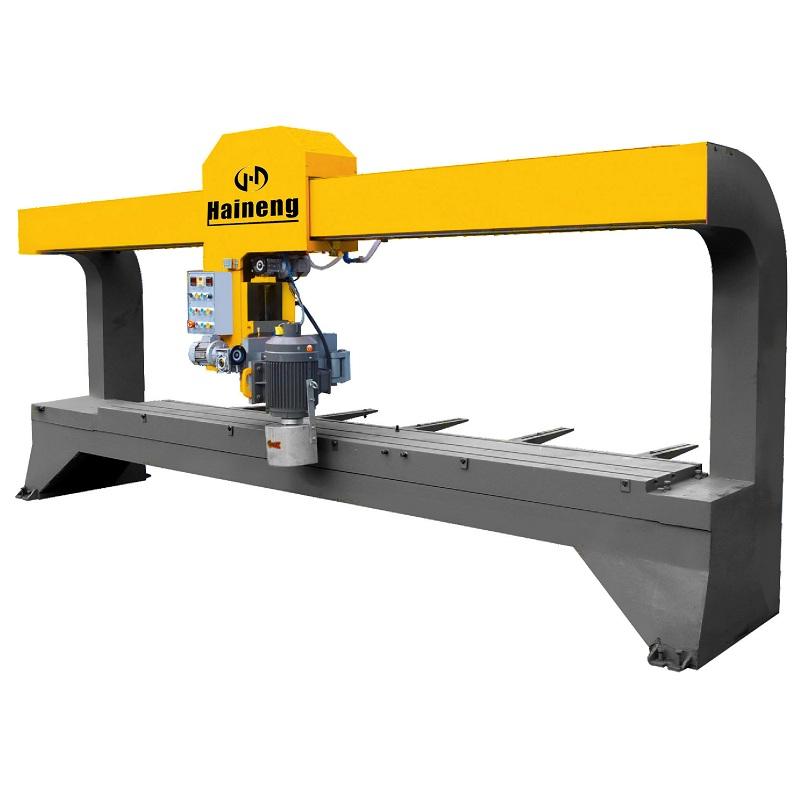

Multifunctional Portal Edge Grinder

This machine has the function of processing various linear edges and curved edges. The φ250 saw blade can be used for slotting. The machine adopts the immersion oil fully enclosed upper horizontal running track frequency conversion stepless speed regulation, the carriage lifting, the electric and the manual functions. It has strong load capacity and stability. Good character, long service life and low cost. The machining feed speed can be set arbitrarily to meet various processing needs. The machine is also designed with automatic and manual double action lifting, which greatly reduces labor intensity and improves production efficiency.

Performance Characteristics

Due to the build with the gantry style machine frame and floor clearance, especially bulky and tall pieces can be machined

Even heavy weight workpieces (up to 3 tons) can be easily and proper machined

By the clearance in horizontal and vertical movement the workpieces can easy and safe adjusted on the scissor lift

With the rotatable grinding unit of 0°-90° the workpieces can be machined in one setup on back and top side (horizontal and vertical), which saves a marginal time in adjusting and set-up-time

Main technical parameter:

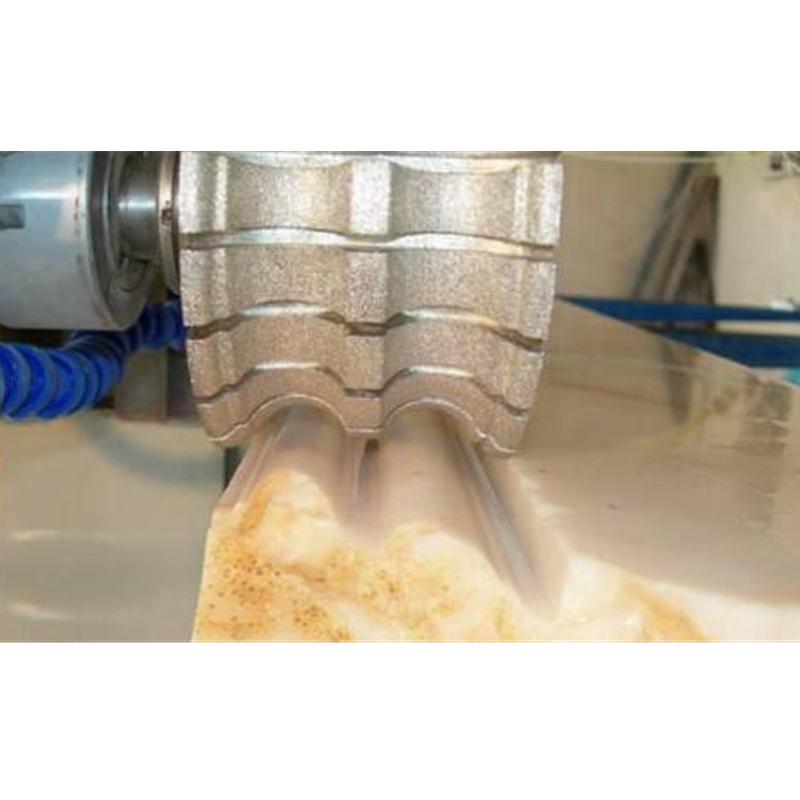

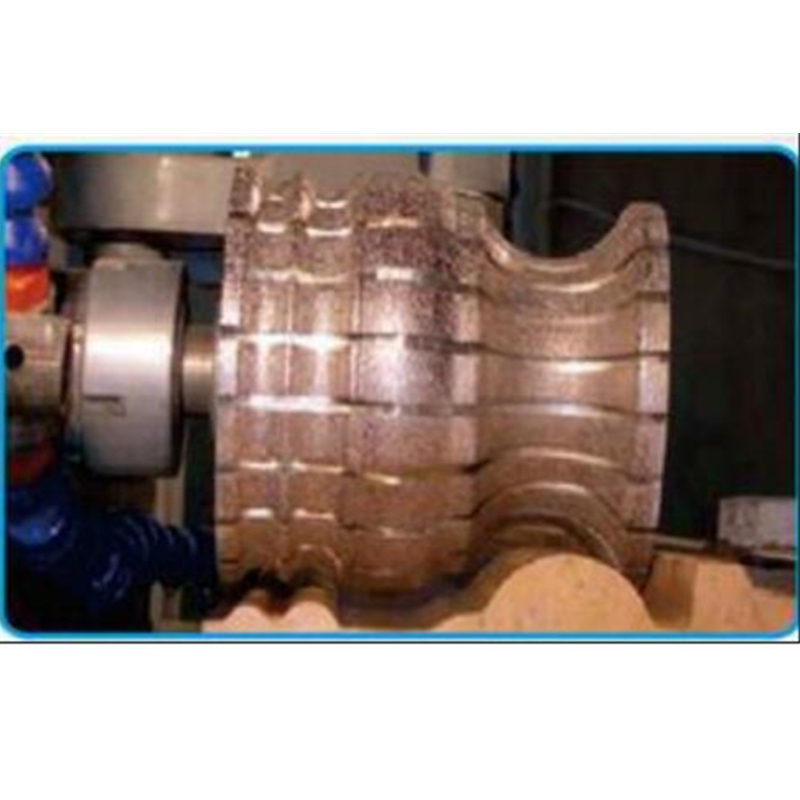

Processing

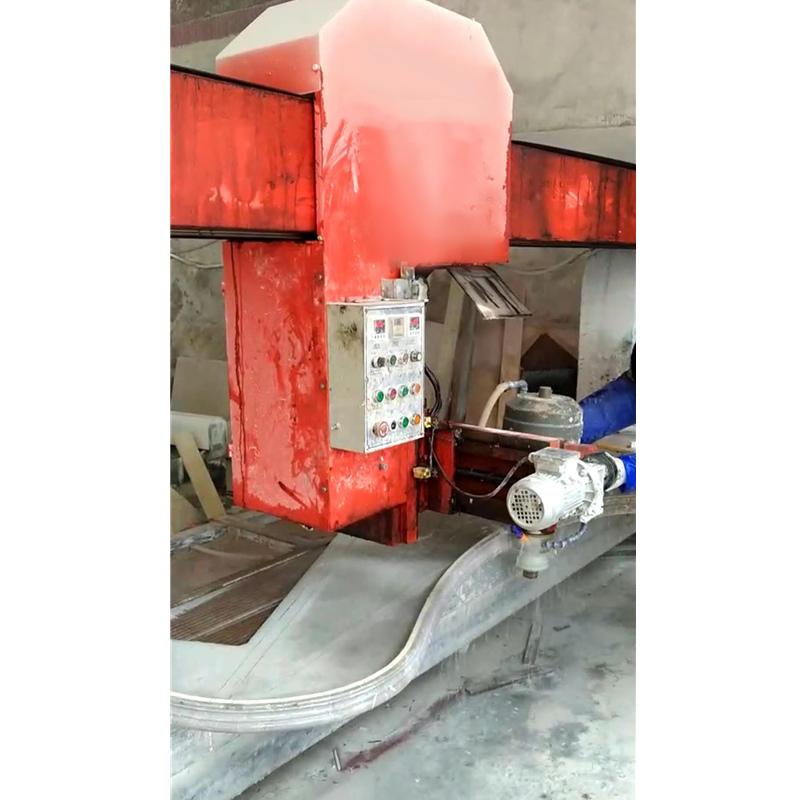

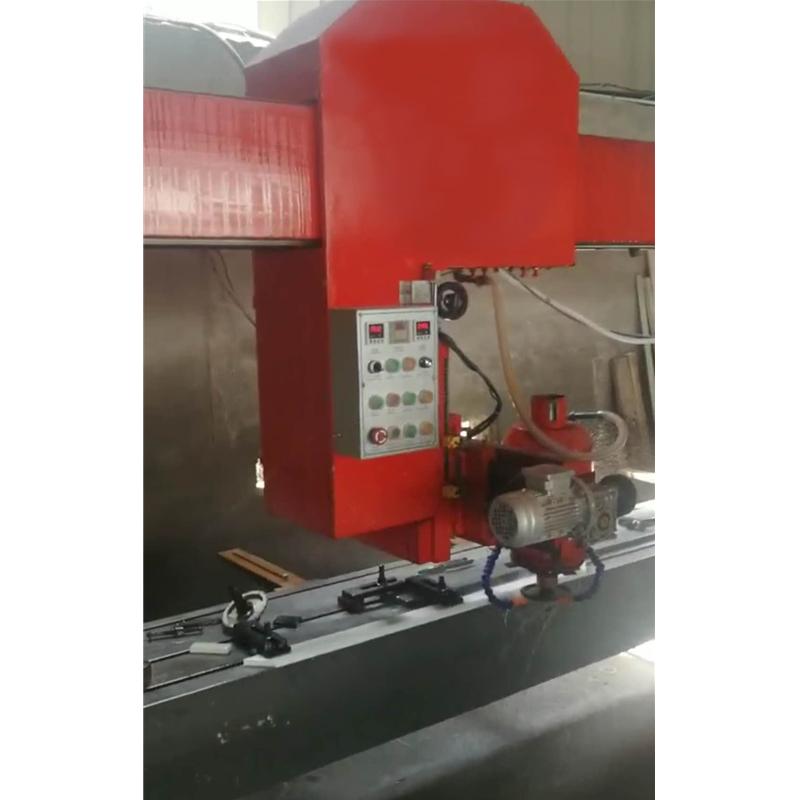

Machine details
