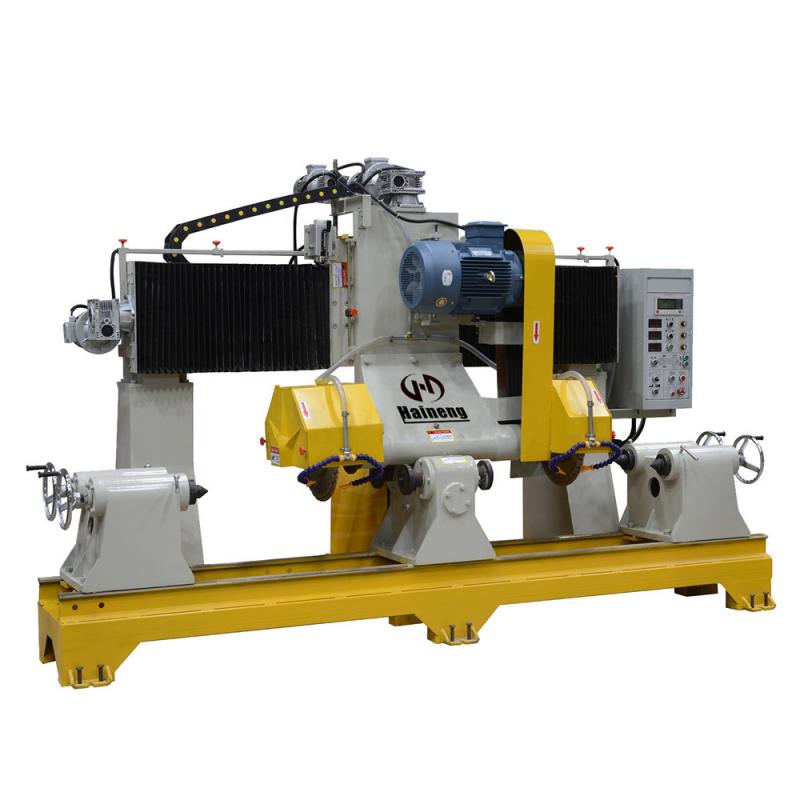

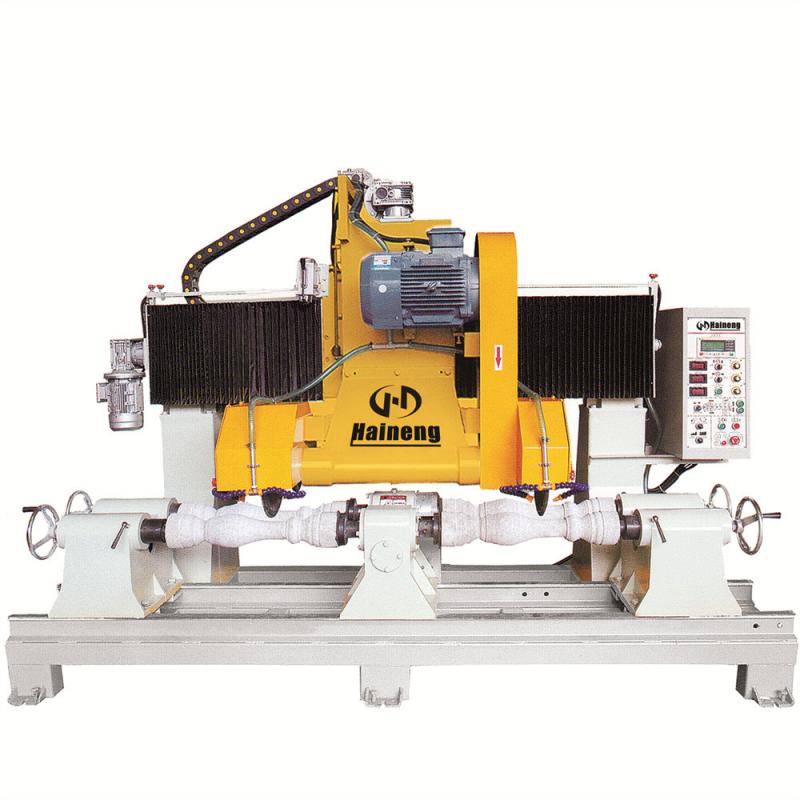

One Side Four Baluster Cutting Profiling Machine

The Baluster Cutting Machine is a versatile cutting machine that can cut stone railings of various shapes and sizes. It can cut both straight and curved stones, making it ideal for stone processing projects.
  • Brand:

    HAINENG
  • Item NO.:

    YF200-4/YF200-2
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow & gray
  • Shipping Port:

    Xiamen port
  • Lead Time:

    15 days
Product Detail

Machine Technical Description

The Portal type machine design, the microcomputer control, the optical fiber monitoring.four blocks can be processed at one time.
The circular railing, sphere, column can be cut arbitrary shaped bottom, column cap, cylindrical rotary type stone, changes the manual is not unified. consumption of a large, poor accuracy. automatic control machine. adjustable the size can be achieved after more than one person to operate machine. Machining length can be customized according to customer demand.


Technical Data

TYPE

Unit

YF200-4

YF200-2

Max.cutting length

mm

580-880

300-400

Max.diameter diameter

mm

Ø300/2pcs

Ø210/4pcs

Ø400/1pcs

Ø220/2pcs

Blade diameter

mm

Ø400-Ø450

Ø400-Ø600

Main motor power

kw

11

7.5-11

Total power

kw

16.57

12

Water consumption

m3/h

3

2.5

Approximate weight

kg

2500

3200

Overall

dimensions(L×W×H)

mm

3200×1225×2100

3200×1200×2000



Products Description
The main feature of our balustrade cutting machines is their high precision. The machine is equipped with advanced technology that ensures the blade moves in a straight line, resulting in clean, accurate cuts. This level of precision is critical for businesses that require high-quality cutting projects, meaning businesses can complete projects faster and more efficiently. Increased productivity leads to higher profits and greater customer satisfaction.


Products Detail

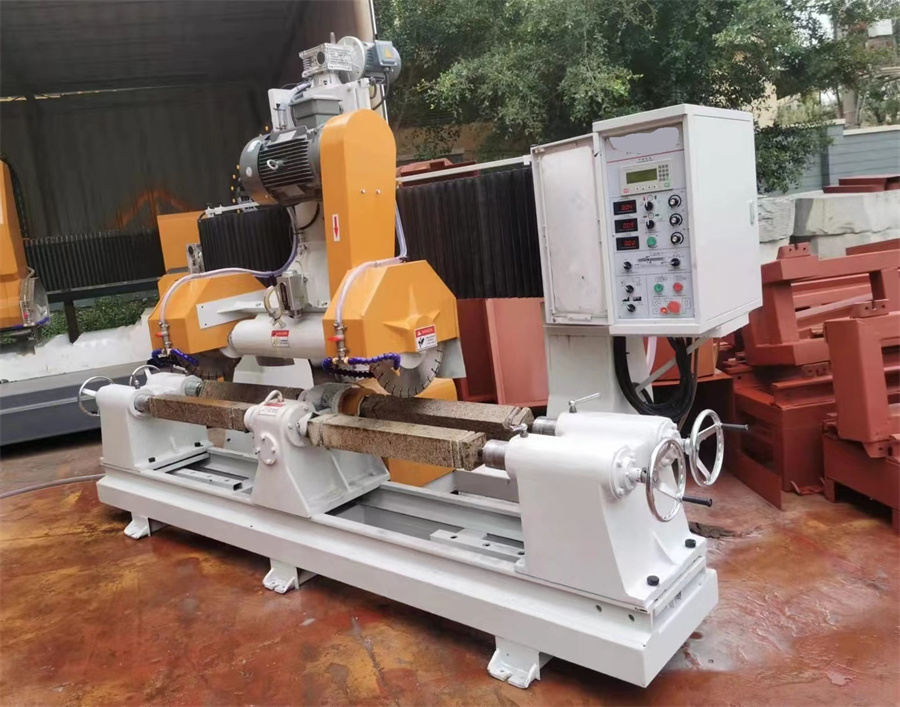

Balusters Profiling Machine

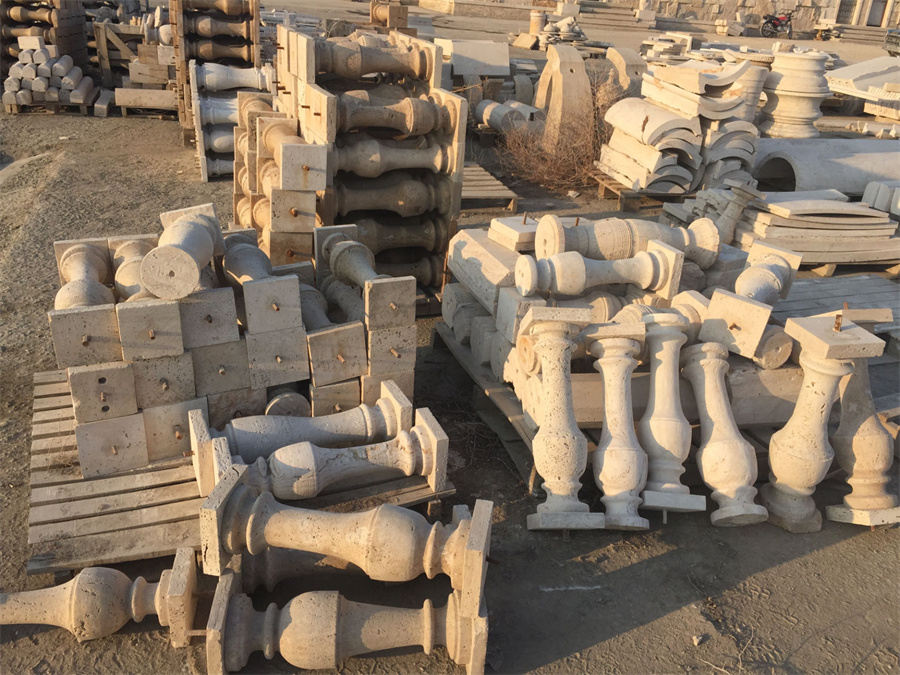

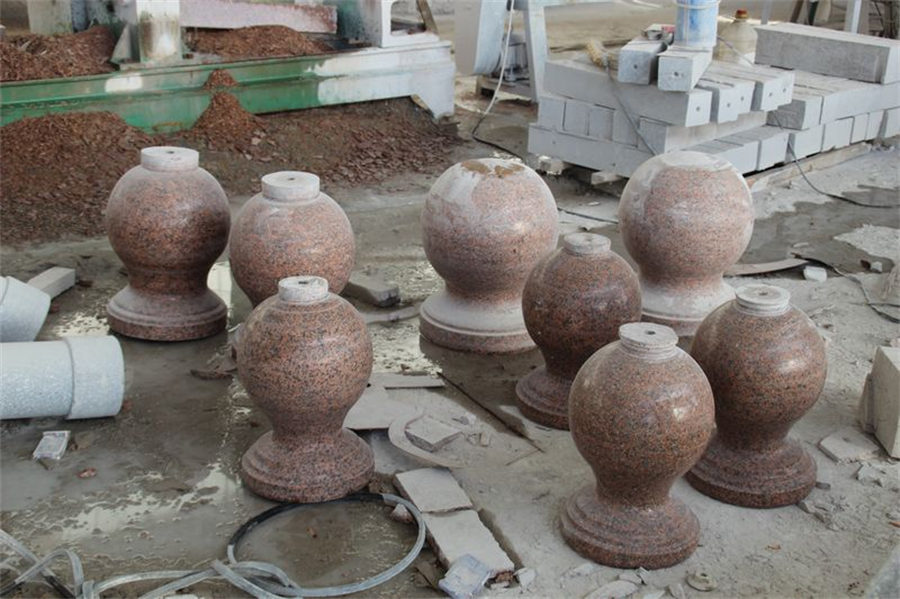

Processing
