China Portal Two-Way Stone Block Cutting Machine manufacturer,Portal Two-Way Stone Block Cutting Machine factory

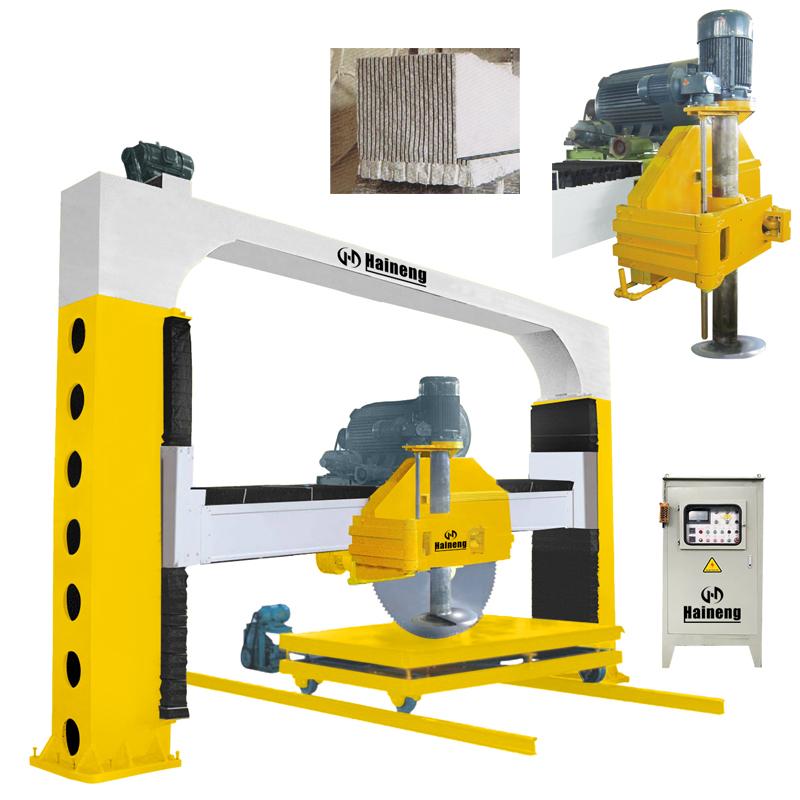

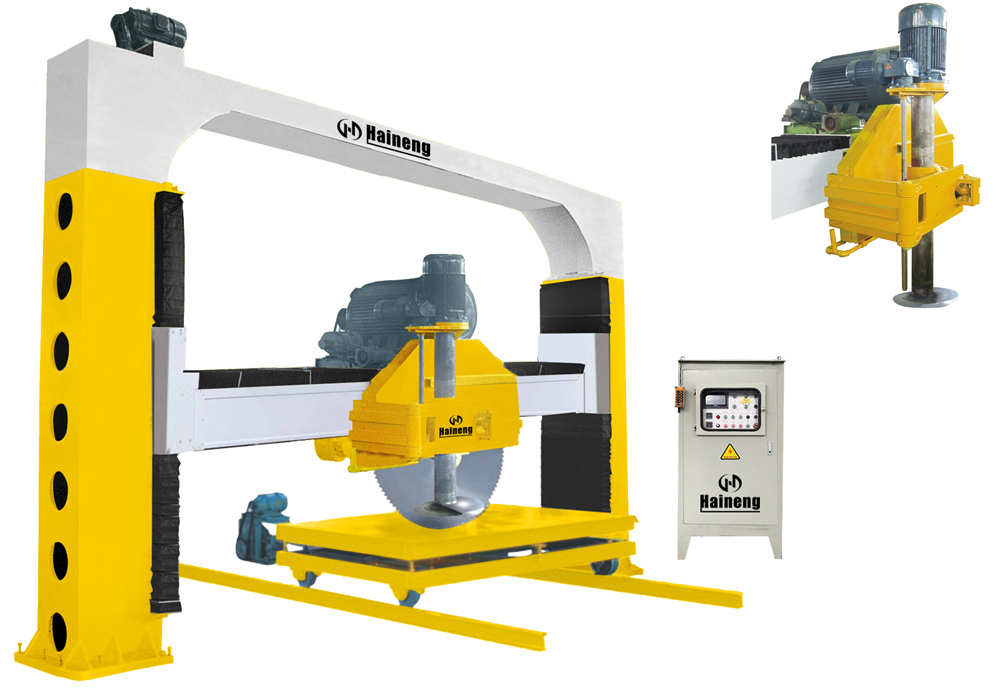

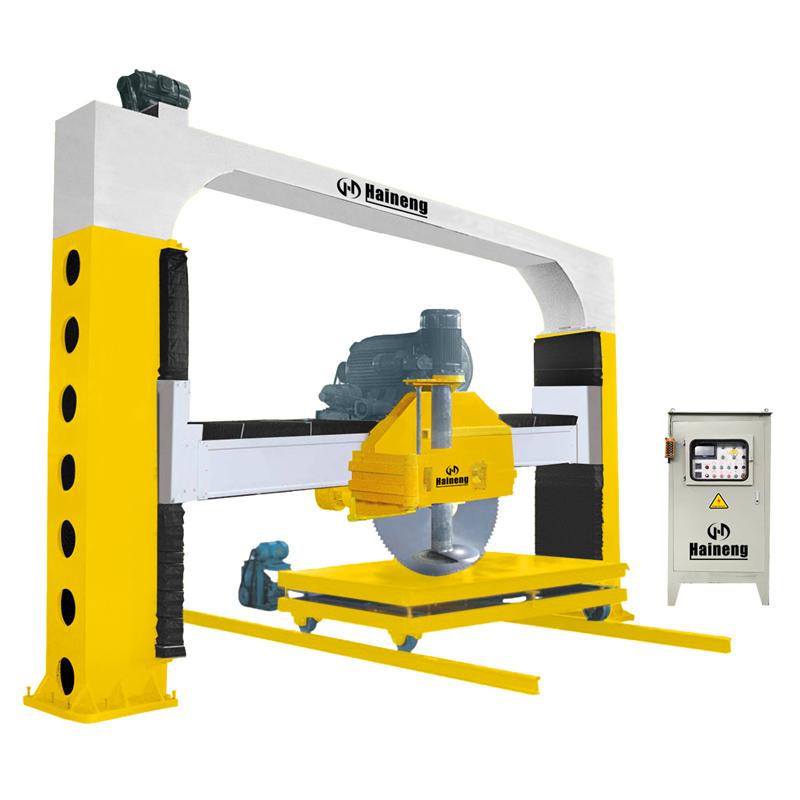

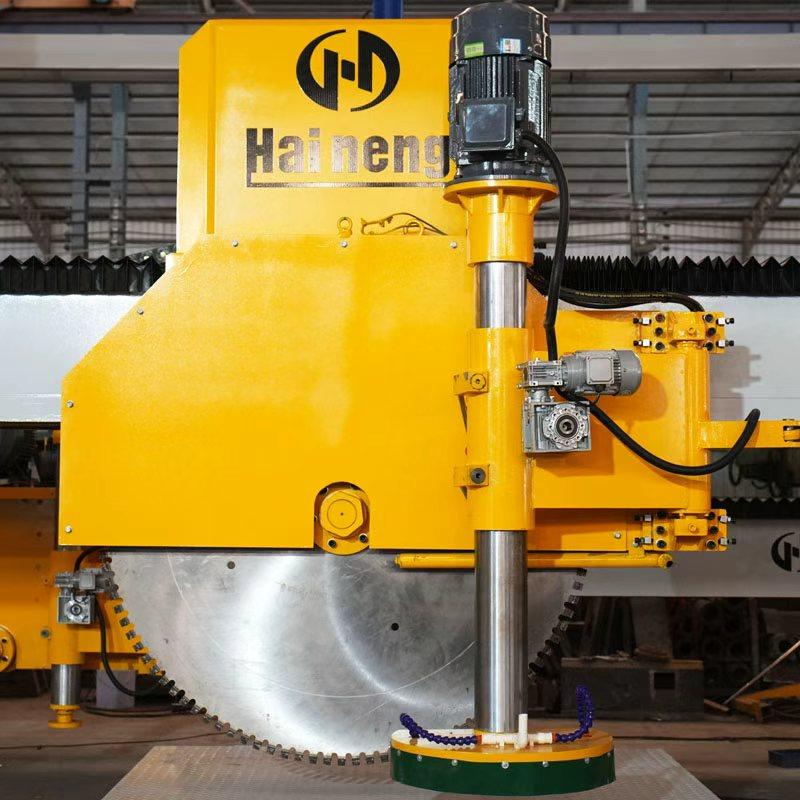

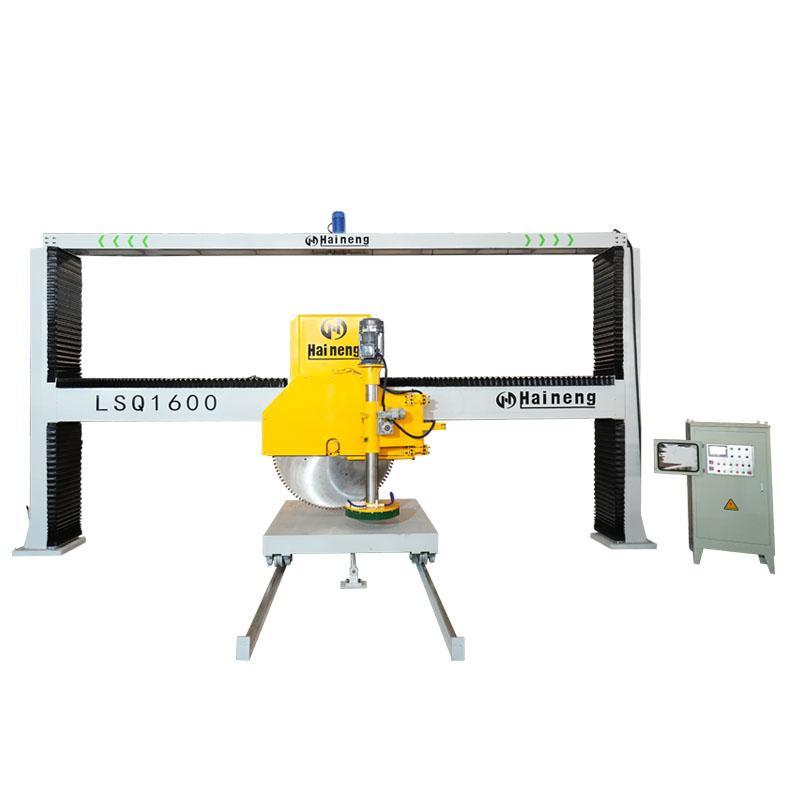

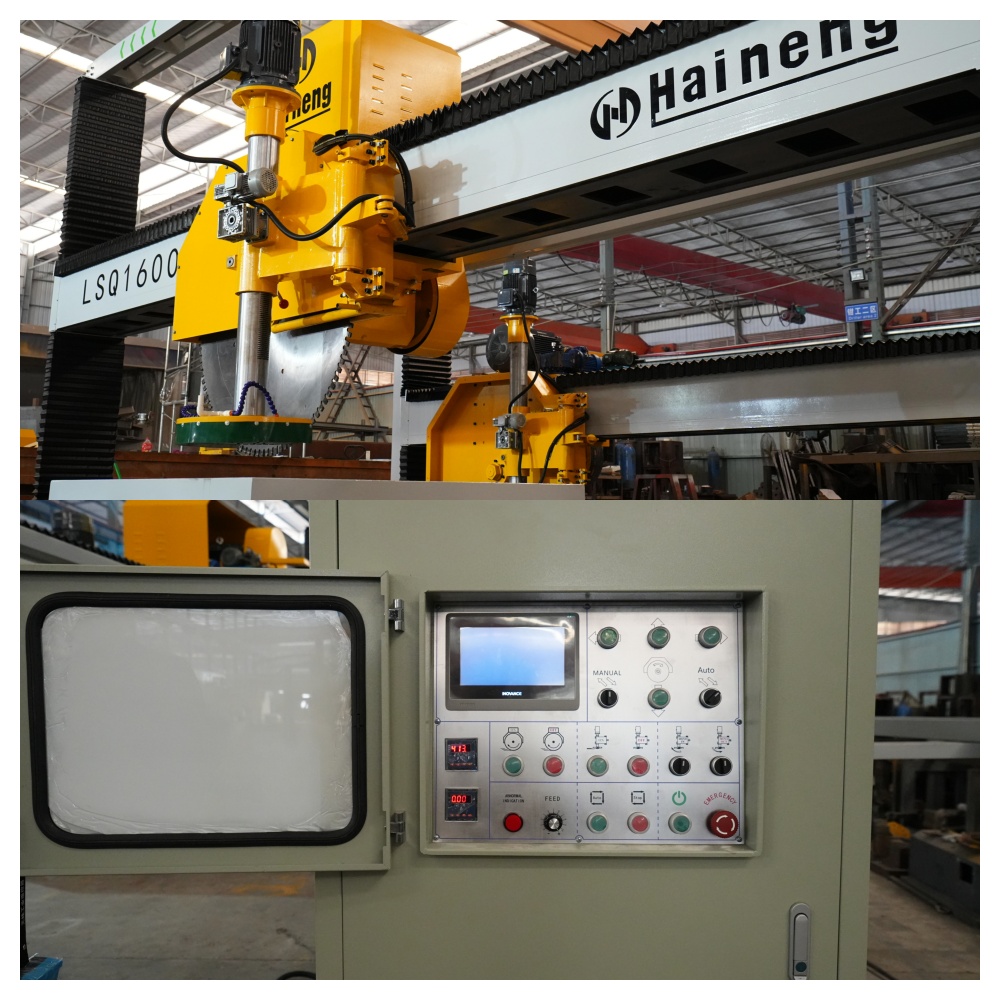

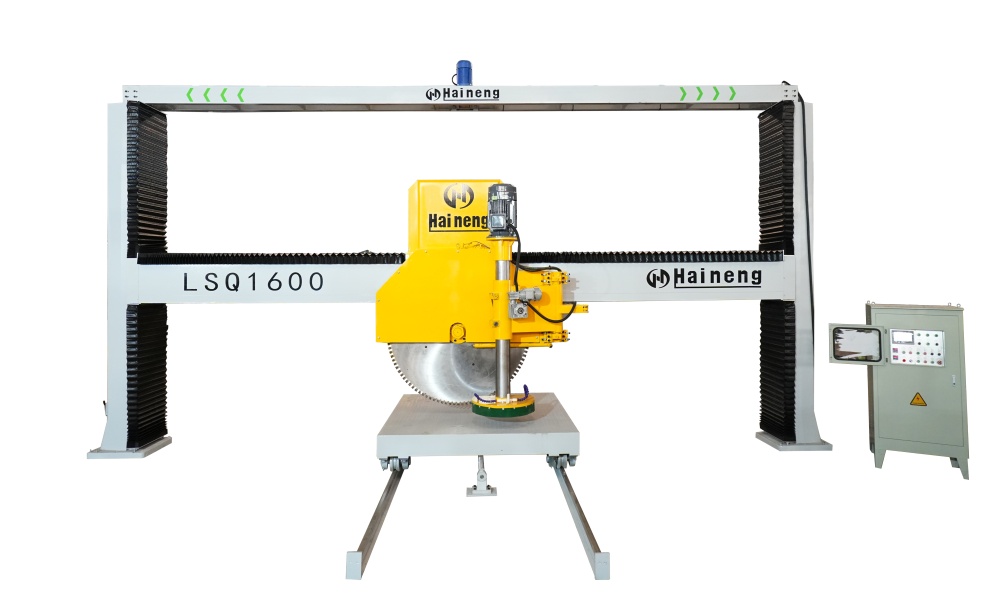

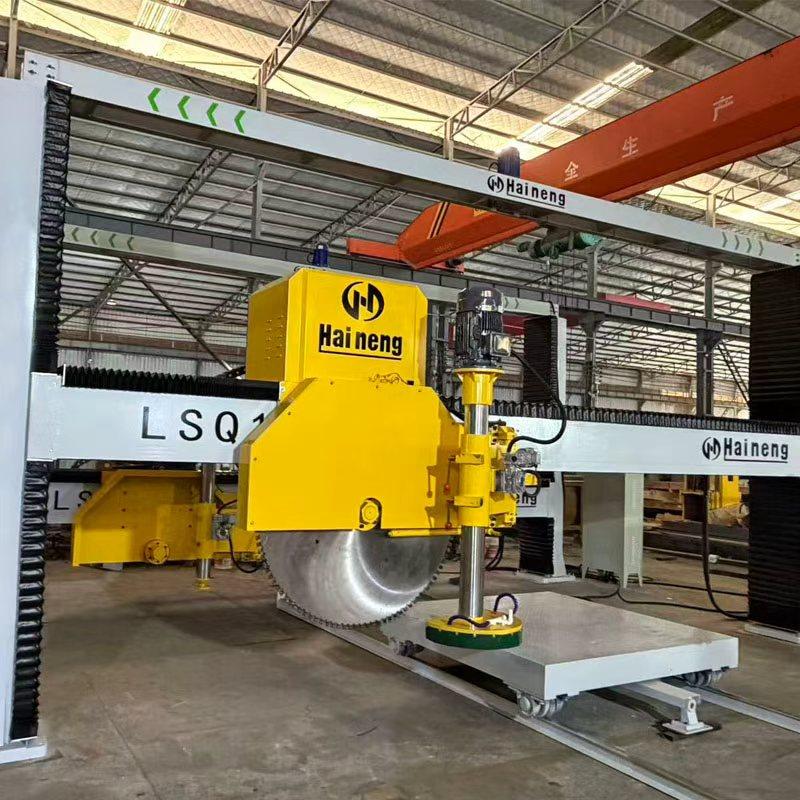

Portal Two-Way Stone Block Cutting Machine

Portal Marble Block Cutting Machine designed for cutting large size marble slabs.

Brand:
HAINENG
Item NO.:
LSQ1600
Payment:
T/T
Product Origin:
China
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
25 days

Single Column Stone Cutting Machine

This Block Cutting Machine is a special machine tool for cutting curb stones and strip stones. The cutting length can be customized according to the needs of users, which makes up for the processing defects on the length of the gantry stone cutting machine. The saw blade moves in and out, lifts and lowers electrically, the feed of the worktable is adjusted by the frequency converter, and the stone is automatically cut horizontally, with high work efficiency.

Bridge Single Blade Stone Block Cutting Machine

The bridge block cutting machine has a simple and reasonable structure and high stability. It adopts hydraulic sliding plate to lift, which has the characteristics of fast lifting speed, anti-wear, not easy to deform, and easy to maintain.

SMT High Efficiency Multi-Saw Stone Cutter

The Multi-blade stone cutter has a high degree of automation, stable overall processing performance, high efficiency and low consumption. It is the most ideal stone machine for cutting strip stones, curb stones and monument stones.

Multi-Blade Hydraulic Stone Cutting Machine

This machine is optimized and improved on the basis of the combined saw. The machine adopts a four-column hydraulic locking structure, which has good overall rigidity and small clearance, which is conducive to reducing the shaking during the cutting stone, and the produced slabs have high precision. , the flatness is good. At the same time, it has achieved remarkable results in improving the service life of the segments and reducing power consumption.

SLQ600/800 Hand Stone Cutting Machine for Tombstone

This stone cutting machine can be used for cutting large stone carvings, brick carvings, inkstones, tombstones, floor stones, etc.

ANYTH Double Blades Stone Cutter

Double Blades Stone Cutter adopts a portal double column structure, oil-immersed track, horizontal electric variable frequency cutting, electric lifting, double saw blades, and an optional conveyor belt workbench, making it the best choice for stone cutting.

XQJ-600 Portable Marble Slabs Stone Cutting Table Saw Machine

XQJ-600 is a stone cutting table saw machine suitable for cutting stone, ceramic tile, brick, concrete and wood etc.

Granite Multi-Saw Blade Cutting Machine

This Granite cutting machine can load 20-28 saw blades longitudinally. With high processing efficiency and good precision, Granite Block Cutting Machine is an ideal granite processing equipment.

Model		LSQ1600
Longitudinal disk diameter	mm	1600
Longitudinal lifting stroke	mm	1400
Max.cutting length	mm	3000
Horizontal disk diameter	mm	600
Horizontal lifting stroke	mm	700
Longitudinal main motor power	kw	75-4
Horizontal motor power	kw	11
Gross power	kw	97
Crossbeam size	mm	4505005000
Table dimensions(LxH)	mm	2000x2000
Overall dimensions(LxWxH)	mm	6600x6000x4800
Water consumption	M³/h	6.2
Approximate weight	kg	8500
Cutting basalt depth	mm	200
Processing efficiency	M²	6-8
