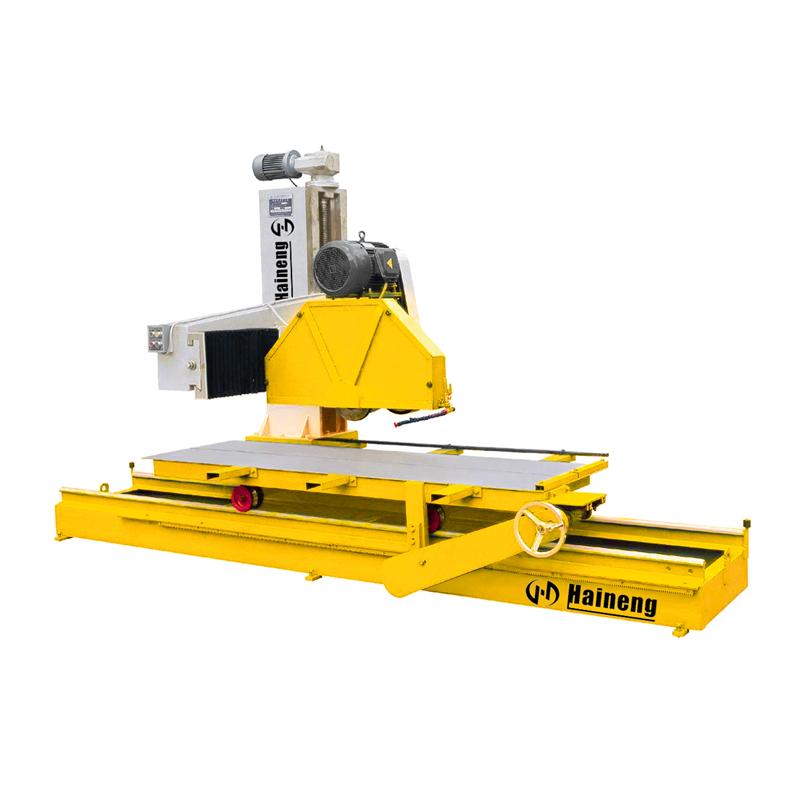

Single Arm Disk Manual Stone Cutter

This single arm disk manual stone cutter is a versatile solution for precision cutting of semi-finished stone slabs and slats. Equipped with a 360-degree rotating head, it allows for flexible, multi-angled cuts on standard stones with different beveled edges. Designed for efficiency, the machine combines manual control with automatic saw blade elevation, providing optimal handling for a range of cutting tasks.
  • Item NO.:

    DYQ-5A
  • Payment:

    T/T
  • Product Origin:

    China
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    15days
Product Detail

 Single Arm Disk Manual Stone Cutter


The single arm disk manual stone cutter is ideal for both standard and custom stone cutting projects, offering a unique blend of manual control and automatic blade movement. Its rotating head allows free rotation for precise angle cuts, making it a valuable tool for achieving high-quality results on stones with various bevels. Durable and user-friendly, this stone cutting machine is designed for professional results in stone fabrication.


Product Features:


1. 360-Degree Rotating Head: Allows free rotation of the cutting head, providing the flexibility to cut stones at multiple angles, perfect for achieving custom bevels and precise finishes.

2. Automatic Blade Elevation: The saw blade elevates automatically for easy adjustments, enhancing user control and cutting accuracy, while ensuring a smoother operation.

3. Manual In and Out Cutting Control: Manual control over the cutting depth allows operators to handle a range of stone thicknesses, making it suitable for different types of projects.

4. Ideal for Semi-Finished Stones and Slabs: Designed to cut semi-finished stones and slabs efficiently, offering the precision and versatility required for various stone fabrication needs.


Technical Data


Max. cutting length

mm

2500

Max. cutting width

mm

1000

Max. cutting thickness

mm

350

Blade diameter

mm

Ø800-Ø1000

Main motor power

kw

15

Gross power

kw

16.5

Exhausted water

m³/h

52.5

Gross weight

kg

2000

Overall dimension  (L×W×H)

mm

4200×2200×2300

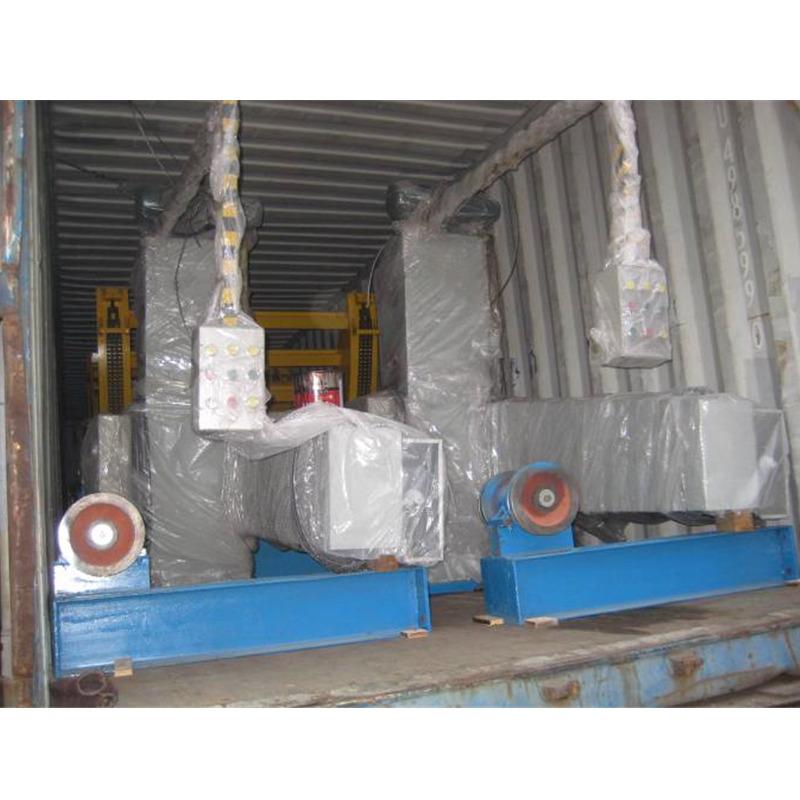

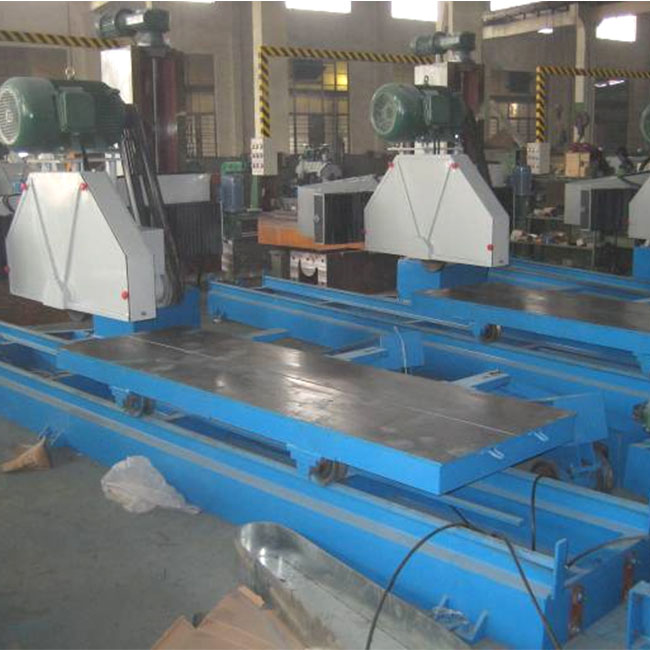

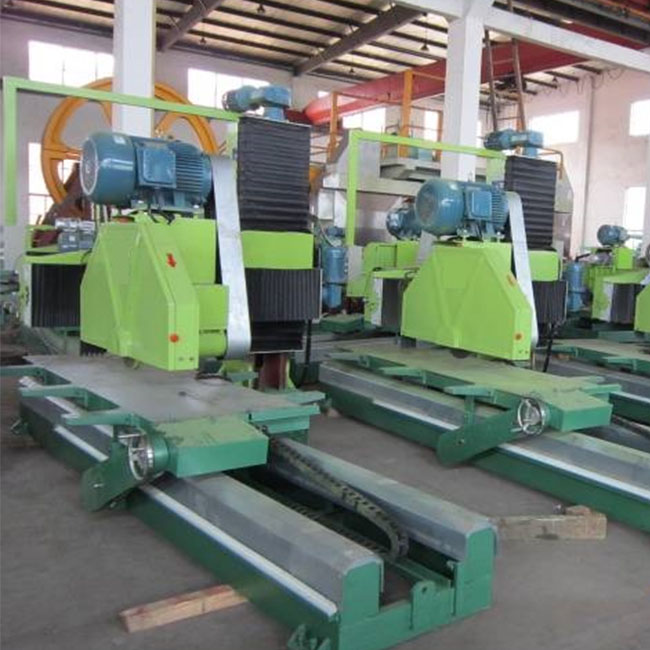

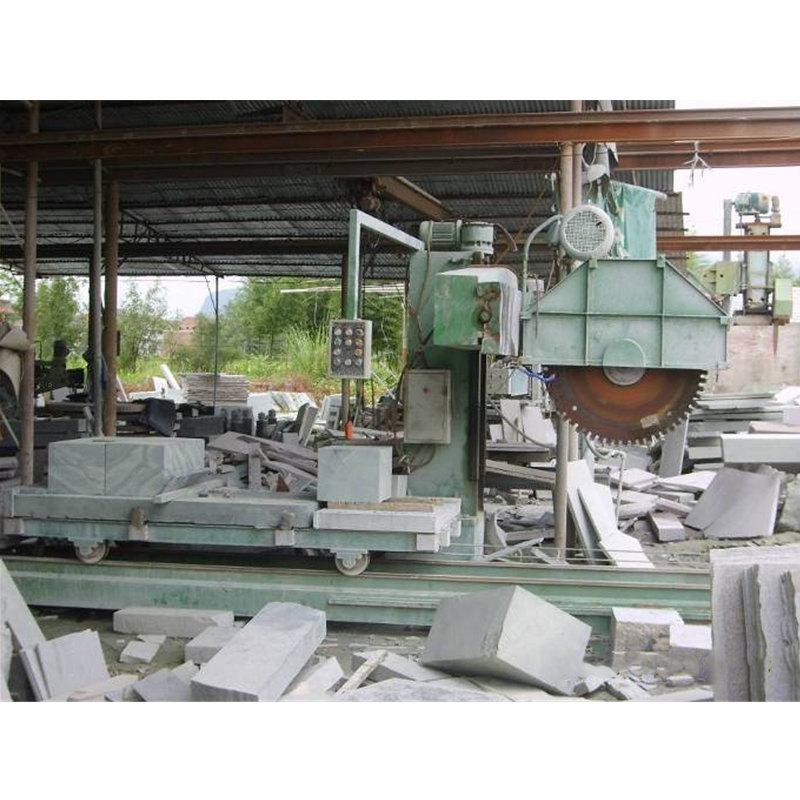

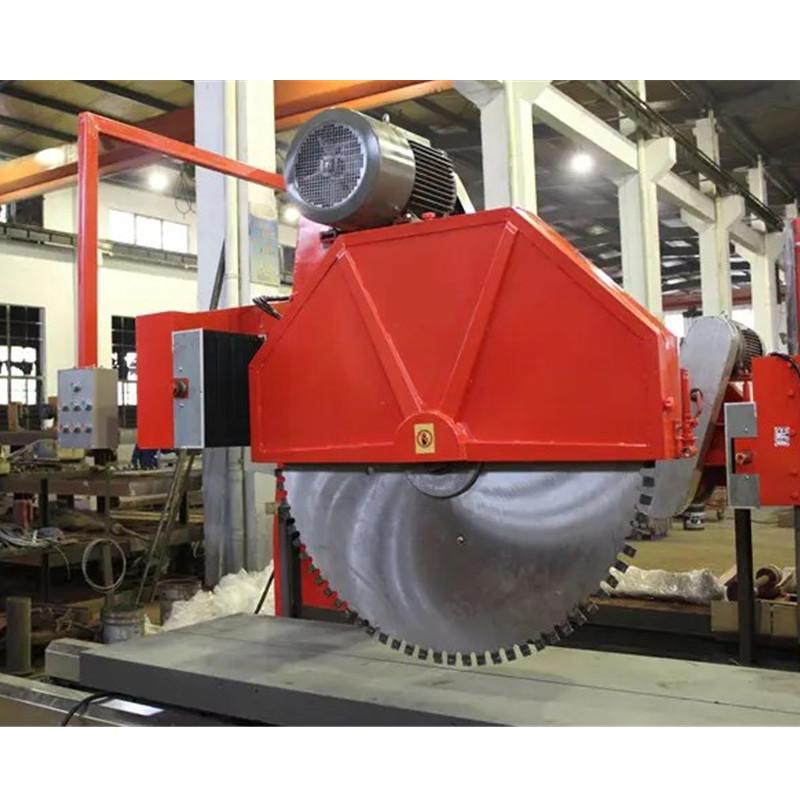

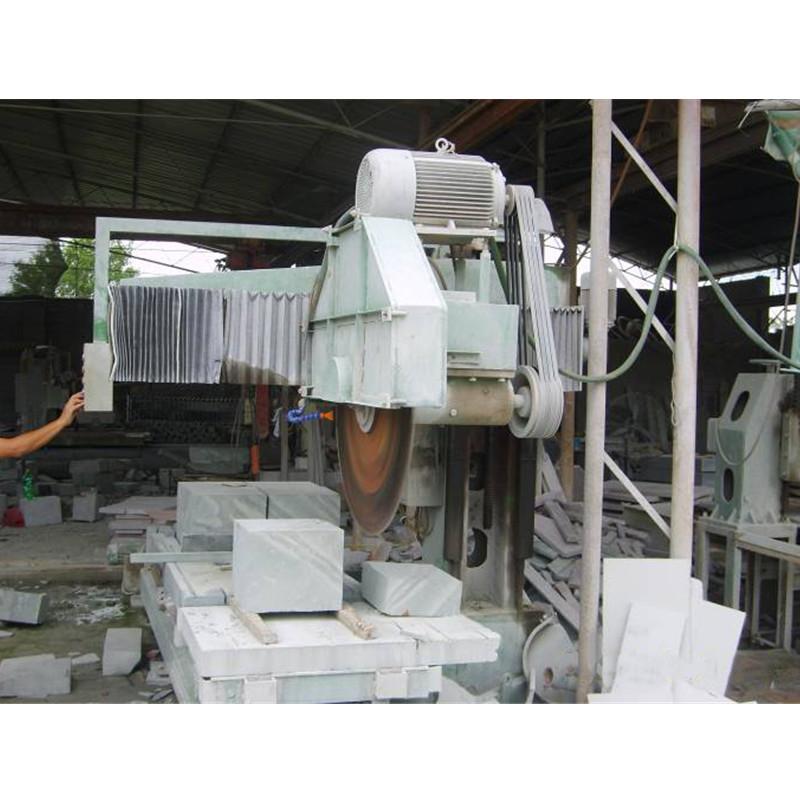

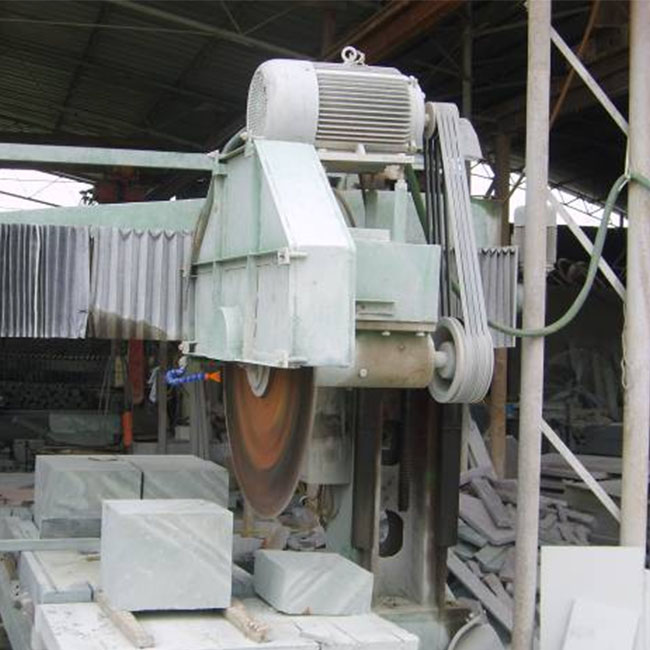

MachineDetails

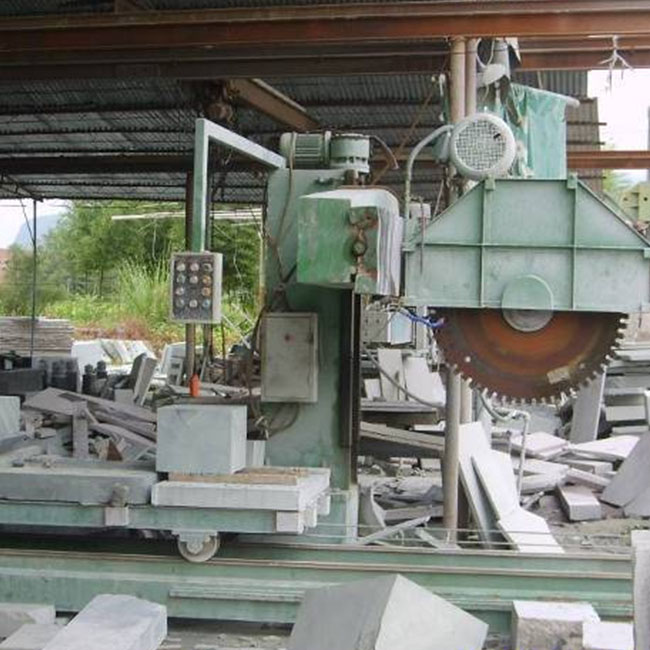

 Single Arm Disk Manual Stone Cutter

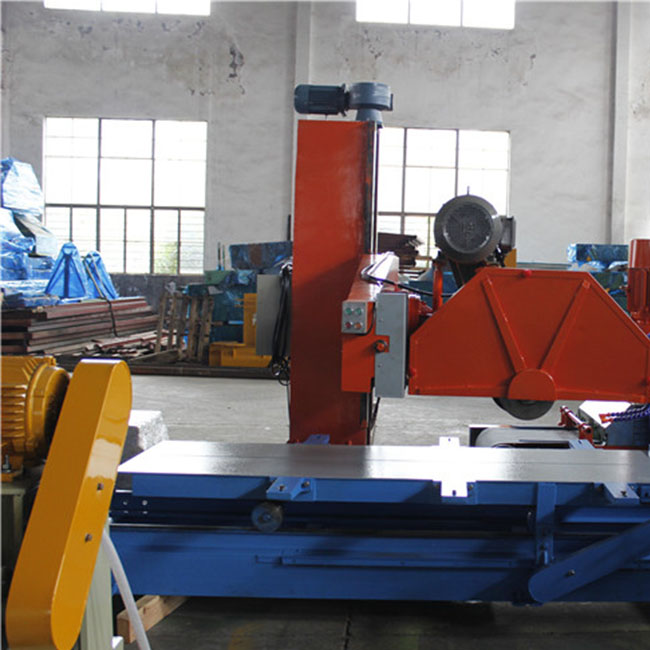

 Single Arm Disk Manual Stone Cutter

 Single Arm Disk Manual Stone Cutter

 Single Arm Disk Manual Stone Cutter

 Single Arm Disk Manual Stone Cutter
