China Hydraulic Hoofed Stone Splitting Machine Cubes and Blocks Paving Stone Splitter manufacturer,Hydraulic Hoofed Stone Splitting Machine Cubes and Blocks Paving Stone Splitter factory

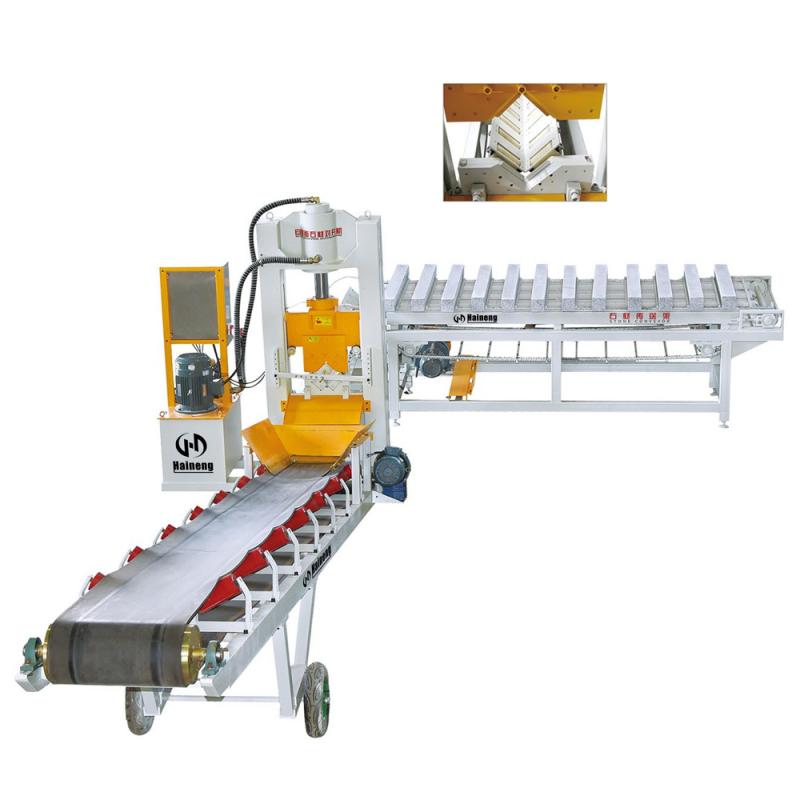

Hydraulic Hoofed Stone Splitting Machine Cubes and Blocks Paving Stone Splitter

Hydraulic Hoofed Stone Splitting Machine is an efficient machine for producing cubic paving stone.

Brand:
HAINENG
Item NO.:
DKJ-24SLS
Order(MOQ):
1
Product Origin:
CHINA
Color:
Yellow
Shipping Port:
Xiamen Port
Lead Time：
25 days

Natural Stone and Concrete Block Hydraulic Splitting Machine

Our Hydraulic stone splitting machine is suitable for splitting all types of natural stones and concrete blocks, cube stone/curb stone/wall stone/blocks tone/tiles/paving stone/countertops/vanity tops.

Four-blades Hydraulic Stone Splitting Machine

The splitting machine is widely used for cutting concrete and sawn stone. It is equipped with four blades to ensure perfect splitting on all four sides of the product every time.

Multi-functional Hydraulic Stone Splitting Stamping Machine

KSS-81 stone splitting machine is an easy to operate dual-function hydraulic punching machine for processing artificial granite, marble slabs.

4-Blade Stone Splitting Machine Manufacturer

The four-blade stone splitting machine can help you process stones quickly and greatly improve work efficiency.

Multi-tooth hydraulic stone splitting machine

Multi-tooth hydraulic stone splitter adopts retractable floating cutter teeth, each cutter tooth is independent of each other and can be locked individually, which can be adapted to the processing of various kinds of stones with uneven surfaces.

Hydraulic Natural Stone Guillotine Rock Splitter Cube Stone Splitting Machine

Hydraulic stone splitting machine is an efficient machine for producing cubic paving stone.DKJ-24S Stone splitter with an infrared sensor controlling the thickness of the split, which is easy to adjust and highly efficient.

Bridge Single Blade Stone Block Cutting Machine

The bridge block cutting machine has a simple and reasonable structure and high stability. It adopts hydraulic sliding plate to lift, which has the characteristics of fast lifting speed, anti-wear, not easy to deform, and easy to maintain.

625 Mitre Cut Bridge Saw

It designed to cut granite, marble, quartz and other natural and engineered stones, Blade tilt 45° automatically for mitre cut. Cast iron bridge V-Conical oil bath guide ways X axis Oil bath THK style high precision rollers Y axis Full oil bath with dust bellow covers The 24HP 50mm Arbor motor can handle up to a 36" blade." Z Travel is 18" Heavy duty rigid construction Super heavy duty steel legs included Rotating tilt table locks in any position with hard stops at 0, 45, 90,degree and 135 degree position, Innovative variable degree table locking system. Table size 10'.5"x 6'7" Has wireless remote that controls saw and table functions Hydraulic plunge miter Computer readout digital touch control Mitsubishi drive controllers AC Inverter duty motors for all 3 Axis Easy to sse programmable cut Digital touch screen read out Laser guide

Dimensions(L×W×H)	cm	160×160×205
Weight	T	1
Power	kw	5.5
Voltage	V	380
Frequency	HZ	50
Flow Rate	L/M	32
Pressure	T	50
Blade Feeding Speed	cm/S	5
Max Working Height	cm	20
Standard Processing size	cm	10×10
Max Working Width	cm	20
Output/Hour	m²	18
Hydraulic Oil Grade	#	46
Oil Tank Capacity	KG	78
Packing Size	cm	170×170×215 80×80×100
Gross Weight	T	1.05

Dimensions(L×W×H)	cm	350×130×100
Speed/Minute	m	7
Worktable width	cm	90
Weight	KG	760
Power	kw	2.2
Voltage	V	380
Frequency	HZ	50
Packing Size	cm	350×130×100
Gross Weight	KG	800

Dimensions(L×W×H)	cm	570×100×220
Speed/Minute	m	30
Belt width	cm	50
Weight	KG	550
Power	kw	3
Voltage	V	380
Frequency	HZ	50
Packing Size	cm	570×100×70 120×100×100
Gross Weight	KG	600
