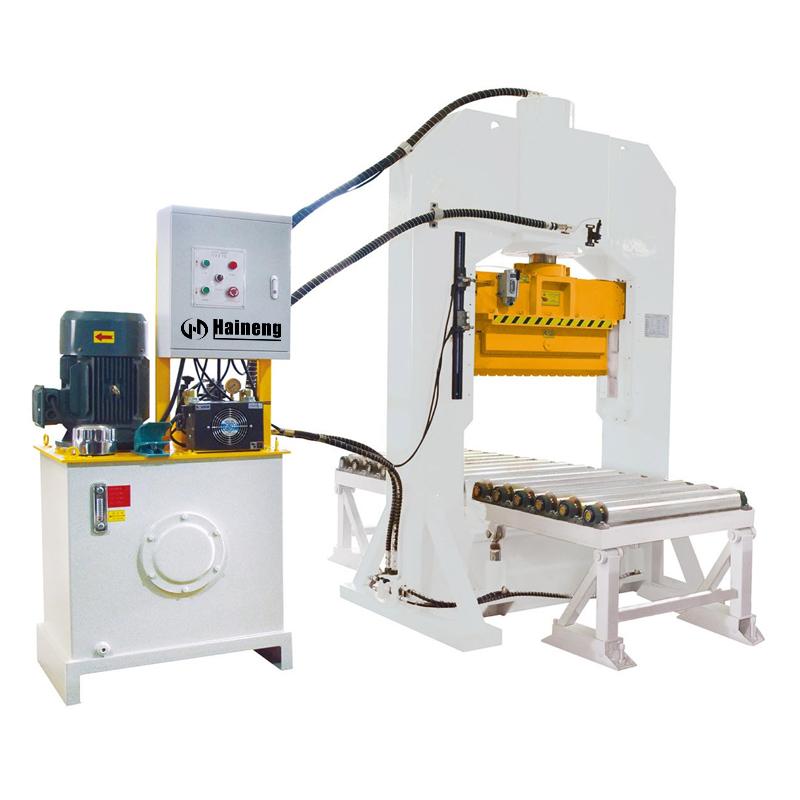

Hydraulic Rock Guillotine Stone Splitting Machine

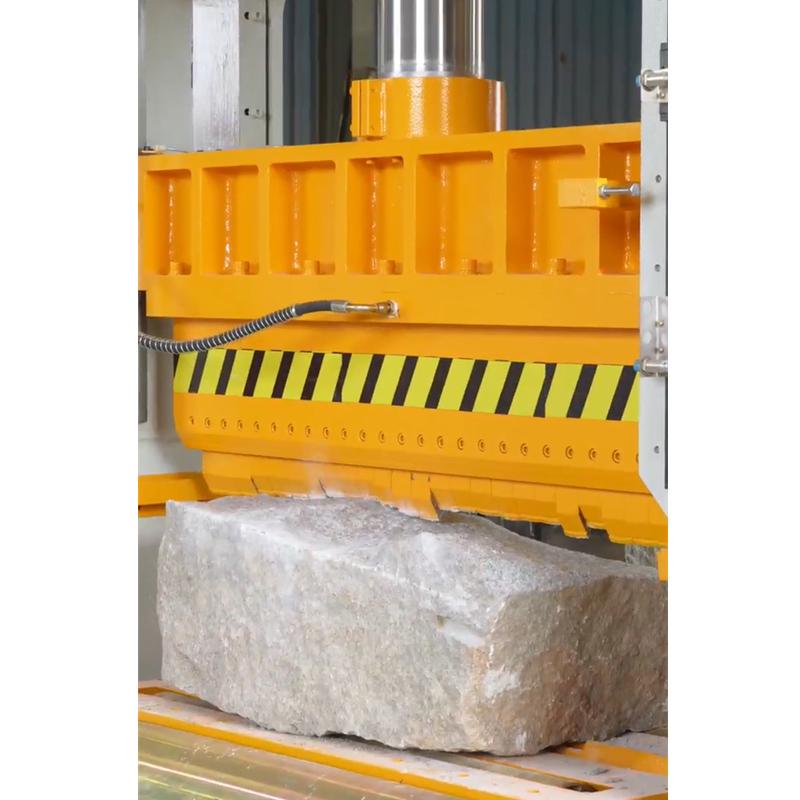

This fully hydraulic stone splitting machine adopts retractable floating knife teeth, each knife tooth is independent of each other, which can be adapted to the processing of various kinds of uneven surface stone.

  • Brand:

    HAINENG
  • Item NO.:

    SDKJ-480
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    25 days
Product Detail

Hydraulic Rock Guillotine Stone Splitting Machine

Product Features:

This fully hydraulic stone splitting machine adopts retractable floating knife teeth, each knife tooth is independent of each other, which can be adapted to the processing of various kinds of uneven surface stone. Stone Splitter is mainly used as the main machine for splitting line to produce semi-finished split stone, and can also be used to split large curbstone and wall stone.

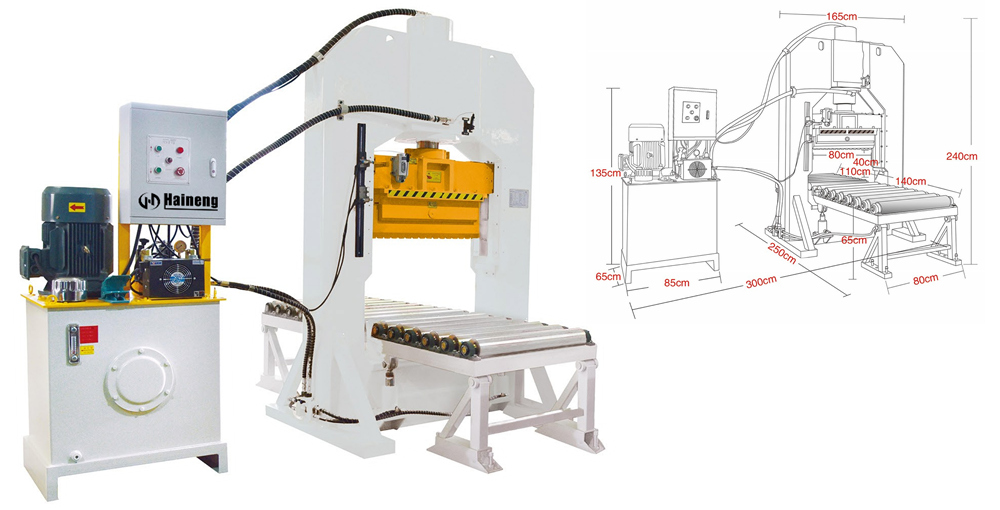

Technical Data


Dimensions(L×W×H)

cm

300×250×240

Weight

T

3.5

Power

kw

11

Voltage

V

380

Frequency

HZ

50

Flow Rate

L/M

60

Pressure

T

200

Blade Feeding Speed

cm/S

7

Max Working Height

cm

40

Max Working Width

cm

80

Output/Hour

25

Hydraulic Oil Grade

#

46

Oil Tank Capacity

KG

200

Processing:
