Products

Multi-tooth hydraulic stone splitting machine

Multi-tooth hydraulic stone splitter adopts retractable floating cutter teeth, each cutter tooth is independent of each other and can be locked individually, which can be adapted to the processing of various kinds of stones with uneven surfaces.
  • Brand:

    HAINENG
  • Item NO.:

    SDKJ-162
  • Order(MOQ):

    1
  • Payment:

    T/T
  • Product Origin:

    China
  • Color:

    Yellow
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    15 days
Product Detail

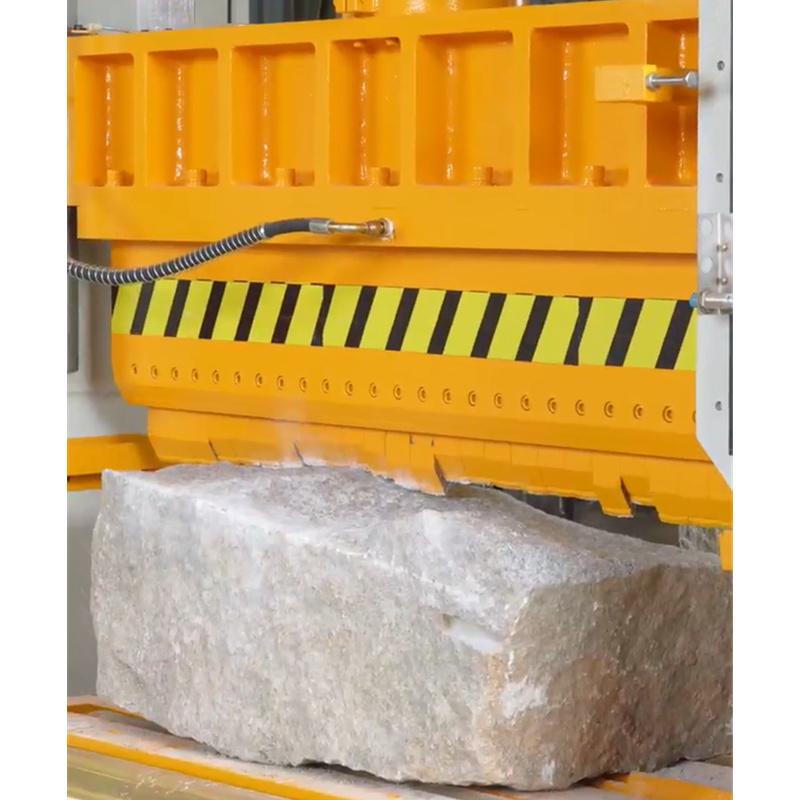

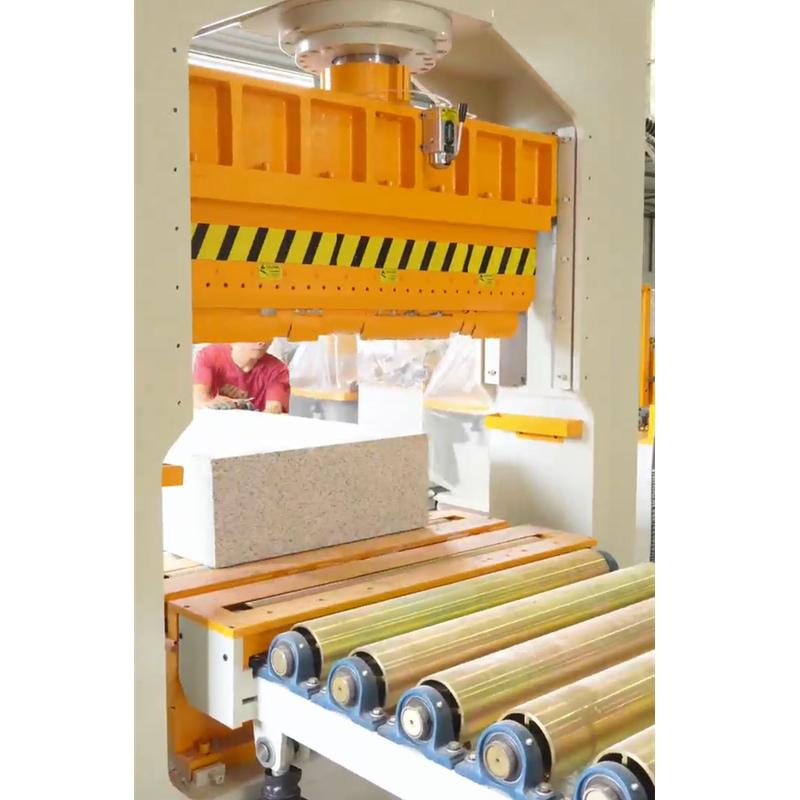

Multi-tooth hydraulic stone splitting machine

Multi-tooth Hydraulic stone splitting machine is suitable for splitting all types of natural stones,  adopts retractable floating cutter teeth, each cutter tooth is independent of each other and can be locked individually, which can be adapted to the processing of various kinds of stones with uneven surfaces.Stone splitting machine widely used in park industries paving.

Main technical parameter:

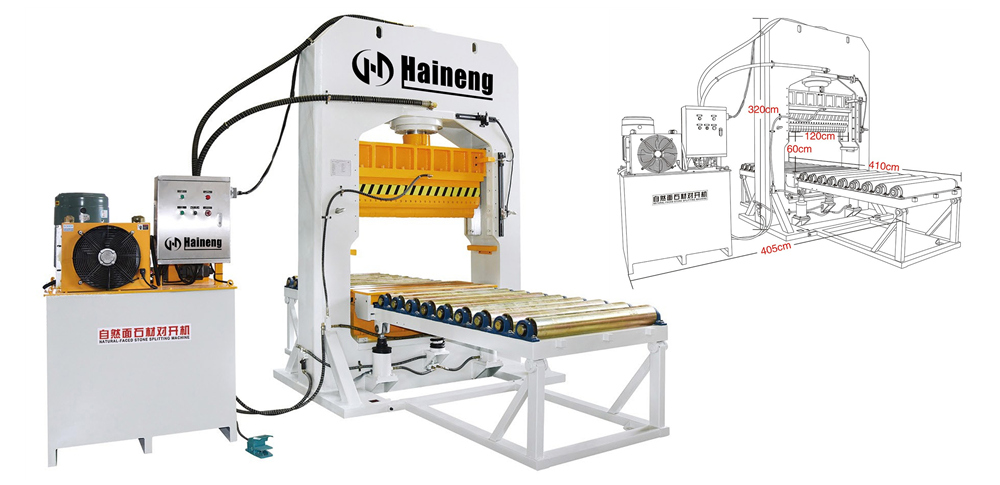

Dimensions(L×W×H)

cm

410×405×320

Weight

T

7.5

Power

kw

18.5

Voltage

V

380

Frequency

HZ

50

Flow Rate

L/M

100

Pressure

T

300

Blade Feeding Speed

cm/S

4

Max Working Height

cm

60

Max Working Width

cm

120

Output/Hour

m²

70

Hydraulic Oil Grade

#

46

Oil Tank Capacity

KG

520

Packing Size

cm

320×220×150

220×145×165

110×95×170

Gross Weight

T

7.5

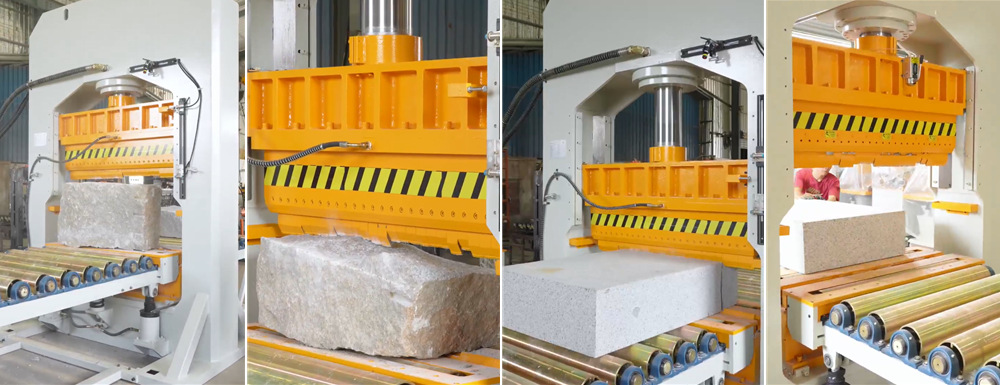

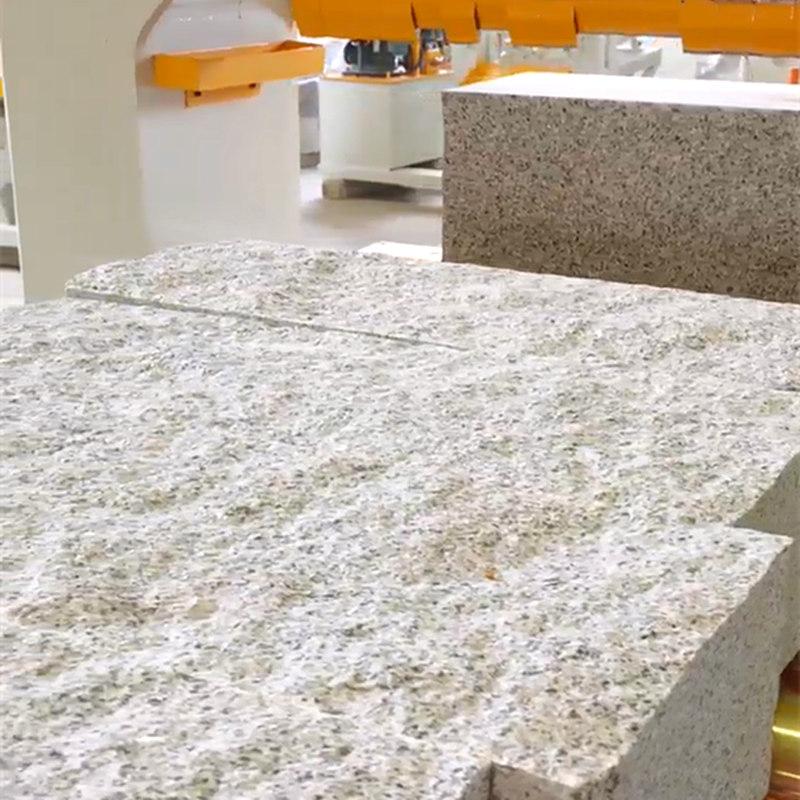

Processing

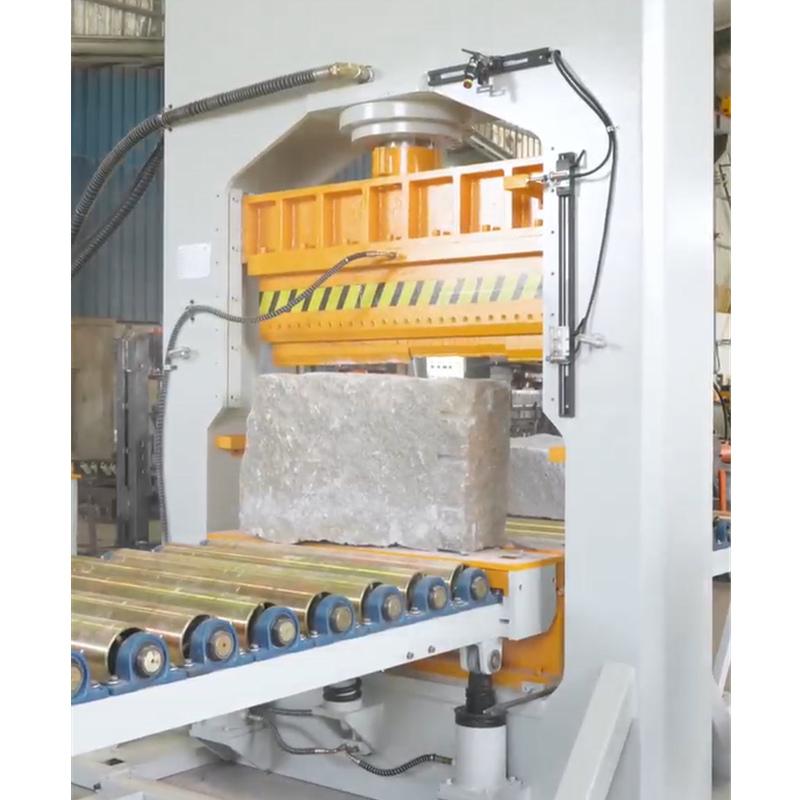

Machine details
