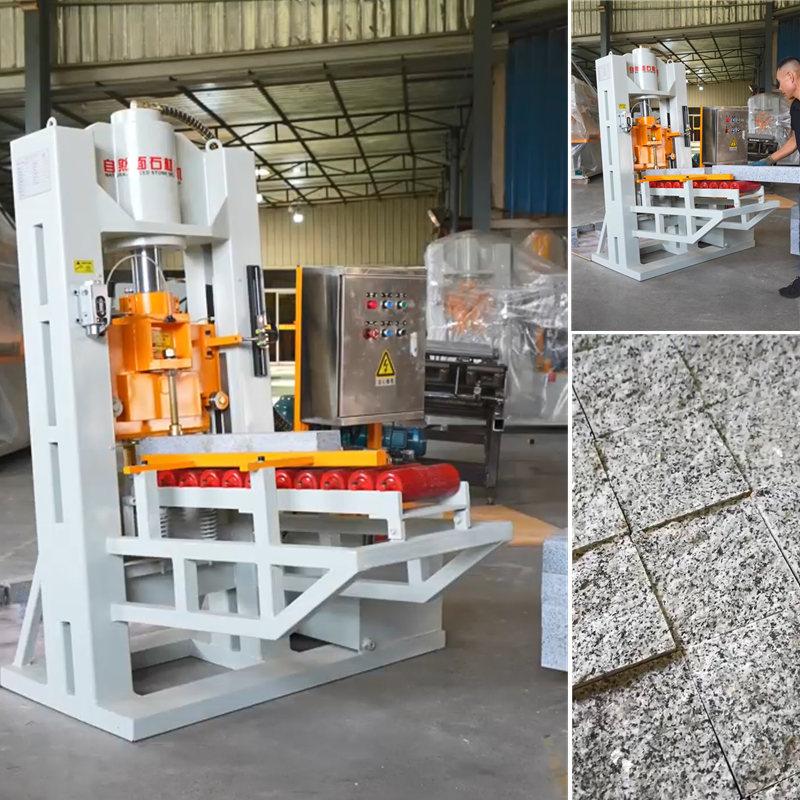

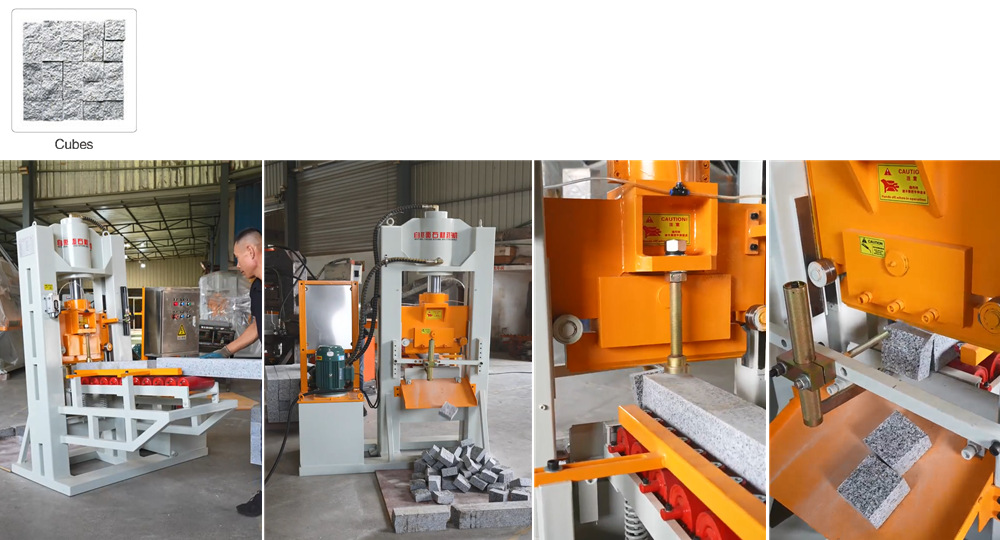

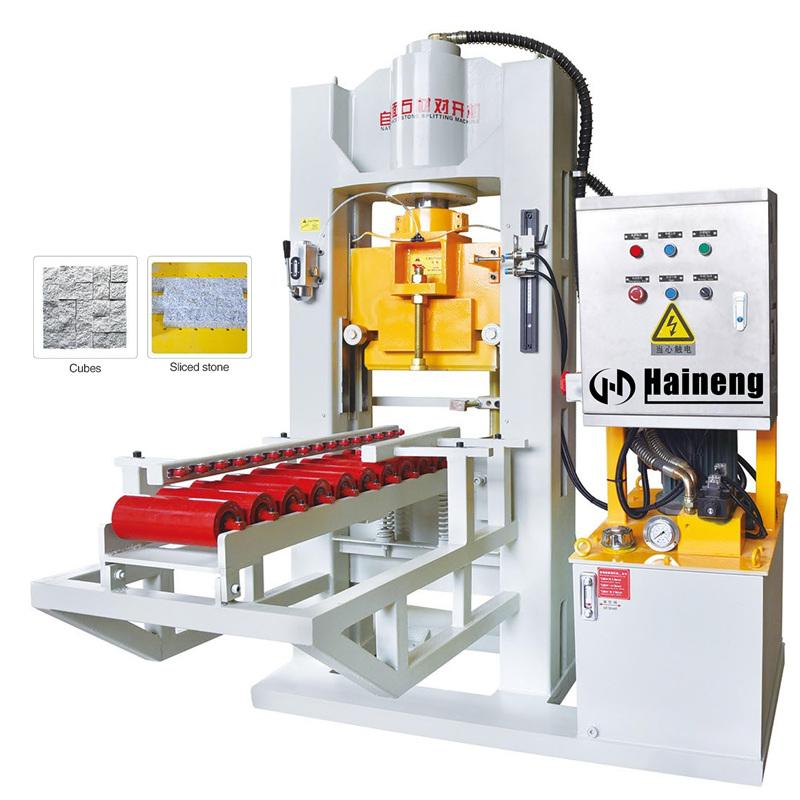

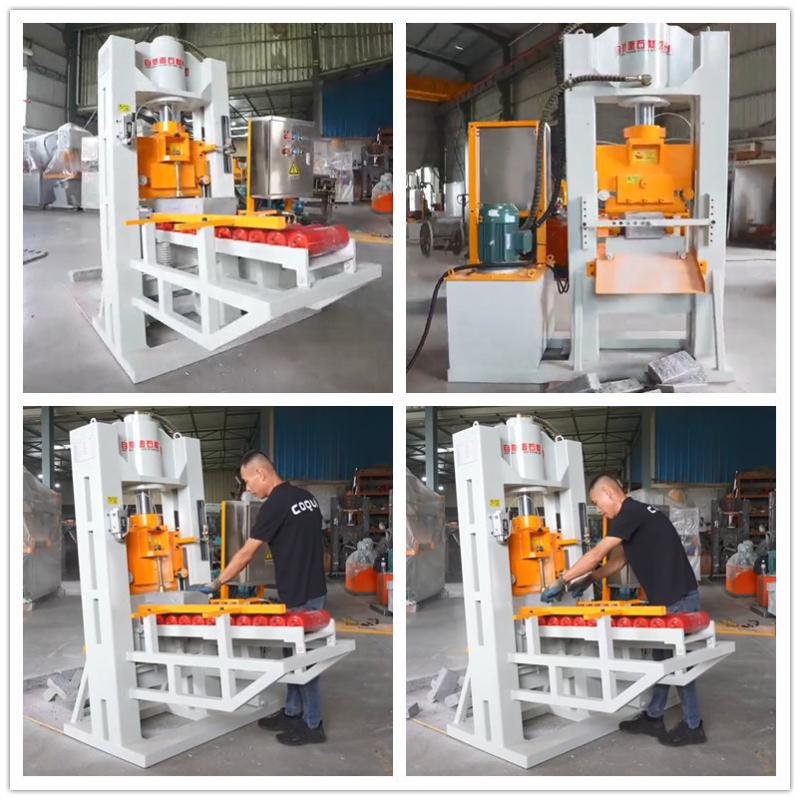

Cube stone splitter machine has an automatic conveyor mechanism, suitable for the process of processing long stone strips that have been sawn and need to be fed continuously into square blocks of stone.
Brand:
HAINENGItem NO.:
DKJ-24ZPayment:
T/TProduct Origin:
ChinaColor:
YellowShipping Port:
Xiamen PortLead Time:
25 daysHydraulic Paving Cube Stone Guillotine
Product Description:

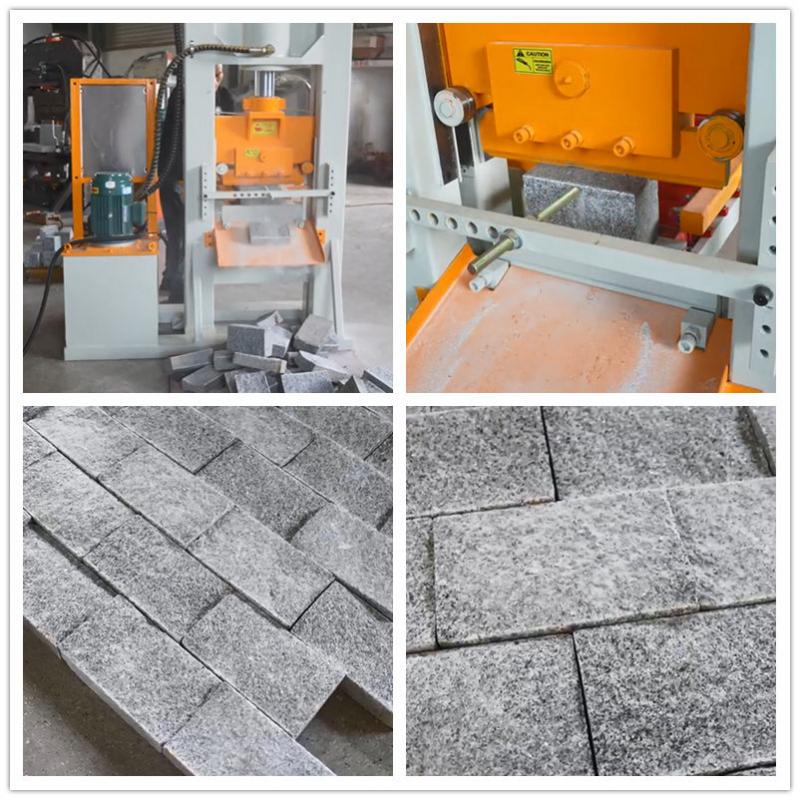

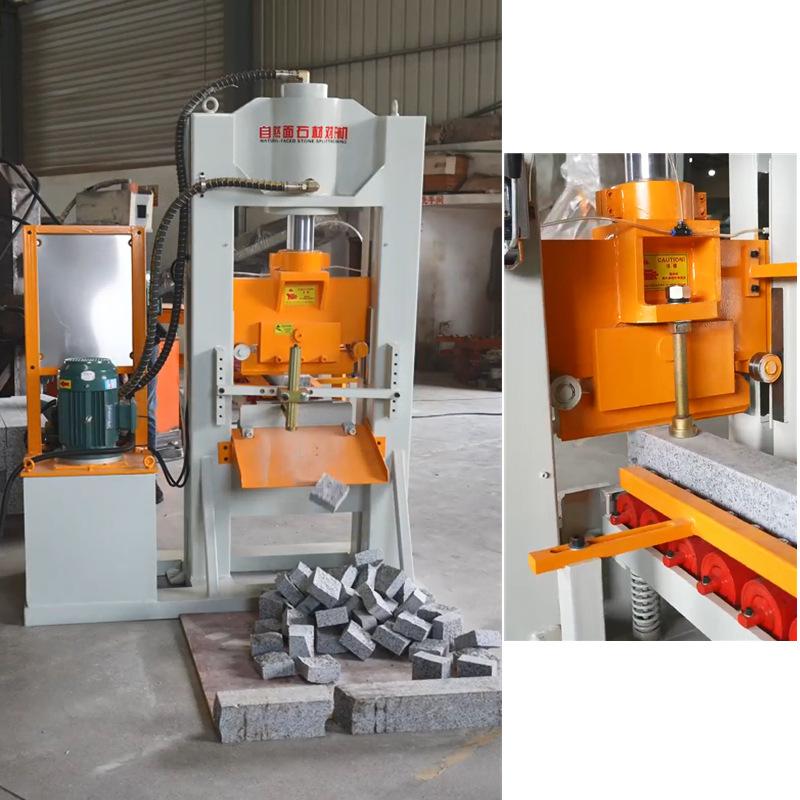

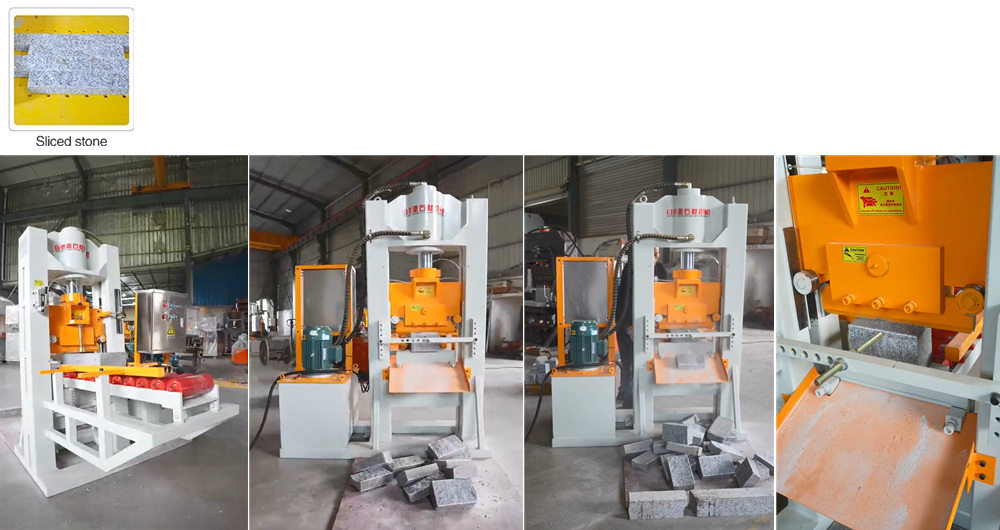

Cube stone guillotine has an automatic conveyor mechanism, suitable for the process of processing long stone strips that have been sawn and need to be fed continuously into square blocks of stone.Stone guillotine splitter designed with hydraulic drive, it can split square paving stones into cubes or blocks with antique appearance. Stone splitting machine is an efficient machine for producing cubic paving stone and stone veneer panels.

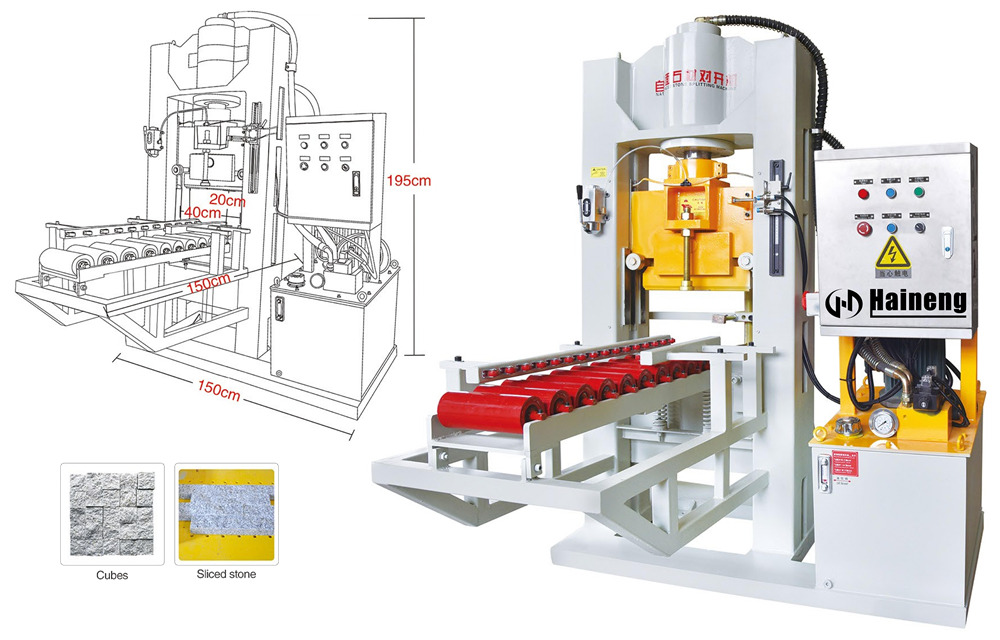

Dimensions(L×W×H) |
cm |
150×150×195 |
Weight |
T |
0.98 |
Power |
kw |
4 |
Voltage |
V |
380 |
Frequency |
HZ |
50 |
Flow Rate |
L |
14 |
Pressure |
T |
40 |
Blade Feeding Speed |
cm/S |
3 |
Max Working Height |
cm |
20 |
Max Working Width |
cm |
40 |
Output/Hour |
m² |
50 |
Hydraulic Oil Grade |
# |
46 |
Oil Tank Capacity |
KG |
78 |
Packing Size |
cm |
160×80×205 80×75×100 |
Gross Weight |
T |
1 |
Packing:
